Product Details

Packed with firepower, fast and heavily armored, the mighty Republic P-47D Thunderbolt could complete virtually every task the U.S. Army required. The Hangar 9® P-47D Thunderbolt 20cc ARF uses the popular warbird design and gave it a fresh new look. The result is a model replica that’s a blast to fly and looks as though it belongs in a museum.
icon-box
In The Box
  • (1) Hangar 9 P-47D Thunderbolt 20cc ARF
  • (1) User Manual
icon-how-to
Needed to Complete
  • (1) 20cc two- or four-stroke gas/petrol engine or equivalent electric motor power system
  • (1) Full-range, 6+ channel transmitter and receiver
  • (8) Standard size servos (7 for the electric power option)
  • (2) Batteries for receiver and engine ignition (for the gas power option)
  • (1) Battery for the power system (for the electric power option)
  • (1) Propeller
  • Miscellaneous Tools and Adhesives
P-47D Thunderbolt 20cc ARF with E-flite Electric Retract Set

Shop Popular Accessories For The P-47D Thunderbolt 20cc ARF

$99.99
5 out of 5 Customer Rating

Hangar 9® P-47D Thunderbolt 20cc ARF Introduction

The Hangar 9® brand is no stranger to making a great flying 20cc-class P-47D Thunderbolt model. Designed to accept engine or electric power systems, lightweight, laser-cut construction combined with expert craftsmanship to bring a durable airframe with incredible realism and great performance. Highlighting its outstanding appearance is a rich film covering with incredible detail and satin finish. Stunning only comes close to describe how the intricate panel lines and soft color transitions take this iconic warbird to deeper level of authenticity. Multiple nose-art decal options included let you personalize the model. Operational flaps make the flight envelope as wide as possible and add that definitive touch of realism ideal for smooth takeoffs and landings. With the throttle full-forward, this P-47D proves its heritage with maneuverability that’s rock-solid, speed that>s heart-pounding and a feel at the controls that will have you wanting more.

Hangar 9® P-47D Thunderbolt 20cc ARF Overview

Packed with firepower, fast and heavily armored, the mighty Republic P-47D Thunderbolt could complete virtually every task the U.S. Army required. WWII pilots called it the "Jug" for its massive size and bottle shape. The enemy knew it better as the "Juggernaut" because it dominated the skies as the toughest and hardest hitting foe ever encountered.

The Hangar 9® P-47D Thunderbolt 20cc ARF takes the popular warbird a bold step further. No stranger to making a great flying P-47D model, lightweight, laser-cut construction combines with expert craftsmanship to bring a durable, all-wood airframe with incredible realism and great performance. The result is a model replica that's a blast to fly and looks as though it belongs in a museum. Highlighting its outstanding appearance is a rich film covering with incredible detail and a satin finish. Stunning only comes close to the description of how the intricate panel lines and soft color transitions take this iconic warbird to deeper level. Plus, it's easy to maintain and durable. Multiple nose-art decal options included let you personalize the model to your own liking.

With a 20cc gas engine you can expect to get long flights that cost only pennies per flight. The large top hatch allows convenient access and quick electric flight battery changes. The two-piece, plug-in wing design makes transport and storage easy. Keep it simple by using the rugged fixed landing gear included, or go all-out and install the optional E-flite® electric retracts. You won't be laboring over the basic build. All hinge slots and holes, including those for the flaps, are factory made so that your time at the bench can be enjoyable as possible. A majority of assembly is bolt-together and the complete hardware package includes everything needed for an engine or electric power installation.

Where this Thunderbolt really shines is in the air. Operational flaps make the flight envelope as wide as possible so you can add that touch of realism on takeoff and enjoy smooth landings. With the throttle full-forward, this P-47D proves its heritage with maneuverability that's rock-solid, heart-pounding high-speed flight and a feel at the controls that will have you wanting more. Whether the P-47D Thunderbolt 20cc is your first warbird or a new addition to a growing fleet, don't be surprised if a Hangar 9 warbird is all you'll ever want to fly.

Hangar 9® P-47D Thunderbolt 20cc ARF Features

  • Expertly constructed with lightweight, laser-cut balsa and plywood
  • Fits a wide variety of battery options to provide a wide range of performance and flight times
  • Includes Multiple Nose Art Options for a Custom Appearance
  • Functional Flaps Widen the Flight Envelope and Increase Scale Realism
  • Printed, Satin-finish Film Covering with Realistic Trim and Panel Line Details
  • Shock-Absorbing Fixed Gear Included -Ready for the Electric Retract Option
  • Fast Field Assembly -Two-Piece Plug-In Wing and Large Top Hatch
  • Abundant Detail Including Scale Guns, Pilot, Engine, Gear Doors, and Bombs
  • Complete Hardware Package Satisfies All Recommended Power Options
Lightweight Construction for the Hangar 9 P-47D Thunderbolt 20cc ARF
Lightweight Construction

Laser-cut, lightweight balsa and plywood construction is utilized to bring the P-47D Thunderbolt 20cc to life as a durable scale model that's expertly built to exacting standards.

Combo With Retracts for the Hangar 9® P-47D Thunderbolt 20cc ARF
Combo With Retracts

This money-saving combo includes the optional E-flite electric retract system that features all-metal durability and is easy to install to take the scale realism to a higher level.

Functional Flaps for the Hangar 9® P-47D Thunderbolt 20cc ARF

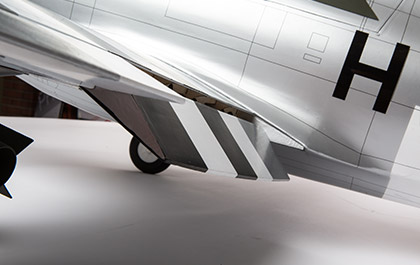

Functional Flaps

Light wing-loading and a semi-symmetrical airfoil offer flight performance that's comfortable at a wide range of speeds. Operational flaps allow its versatile flight envelope to open even wider so you can increase flight realism that includes shorter takeoffs and slower landings.

Scale Detail for the Hangar 9® P-47D Thunderbolt 20cc ARF

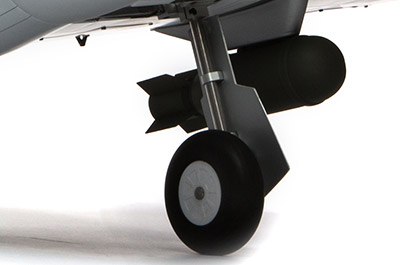

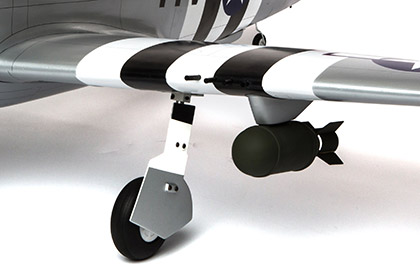

Scale Detail

Beyond the factory applied satin-finish printed covering, other iconic details include a dummy engine, wing cannons and bombs, gear doors, radio antenna and a painted pilot figure, just to name a few. Choose from one of the three nose-art decals included to finish your model off.

Power It the Way You Want It  for the Hangar 9® P-47D Thunderbolt 20cc ARF

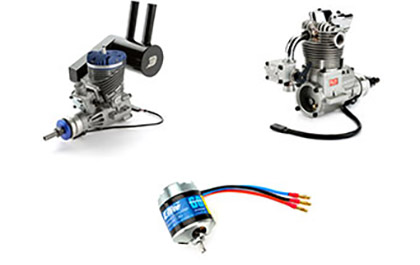

Power It the Way You Want It

The P-47D Thunderbolt 20cc is designed to accept the 20cc gas two-stroke engines, a Saito FG-21, 21cc four-stroke or E-flite Power 60 brushless electric outrunner motor system (sold separately). All hardware for the power system options is included along with an electric motor mount so you can get assembly right away and in the air faster.

Easy Access and Assembly It for the Hangar 9® P-47D Thunderbolt 20cc ARF

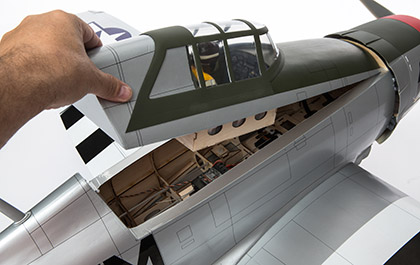

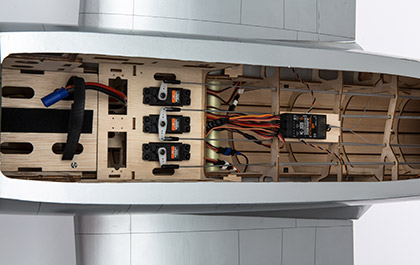

Easy Access and Assembly

The convenient top hatch is large for easy access to vital components such as the electronics and batteries. The two-piece plug-in wing makes this large airplane easy to transport and assembled with minimal fuss so you can arrive at the field and be in the air quickly.

Product Specifications

Approximate Assembly Time 20+ Hours
Battery Sold Separately
Charger Sold Separately
Engine Size 20cc 2- to 4-stroke gas/petrol (Sold Separately)
Flaps Yes
LiPo Compatibility 6S
Material Wood
Minimum Required Radio 6+ channel, full-range transmitter and receiver (Sold Separately)
Motor Size 1800W Outrunner (Sold Separately)
Power Type Electric/Gas/Glow
Product Length 56" (1422 mm)
Radio Sold Separately
Receiver Sold Separately
Retracts Optional
Servos Sold Separately
Skill Level Level 3
Wingspan 67" (1702 mm)
