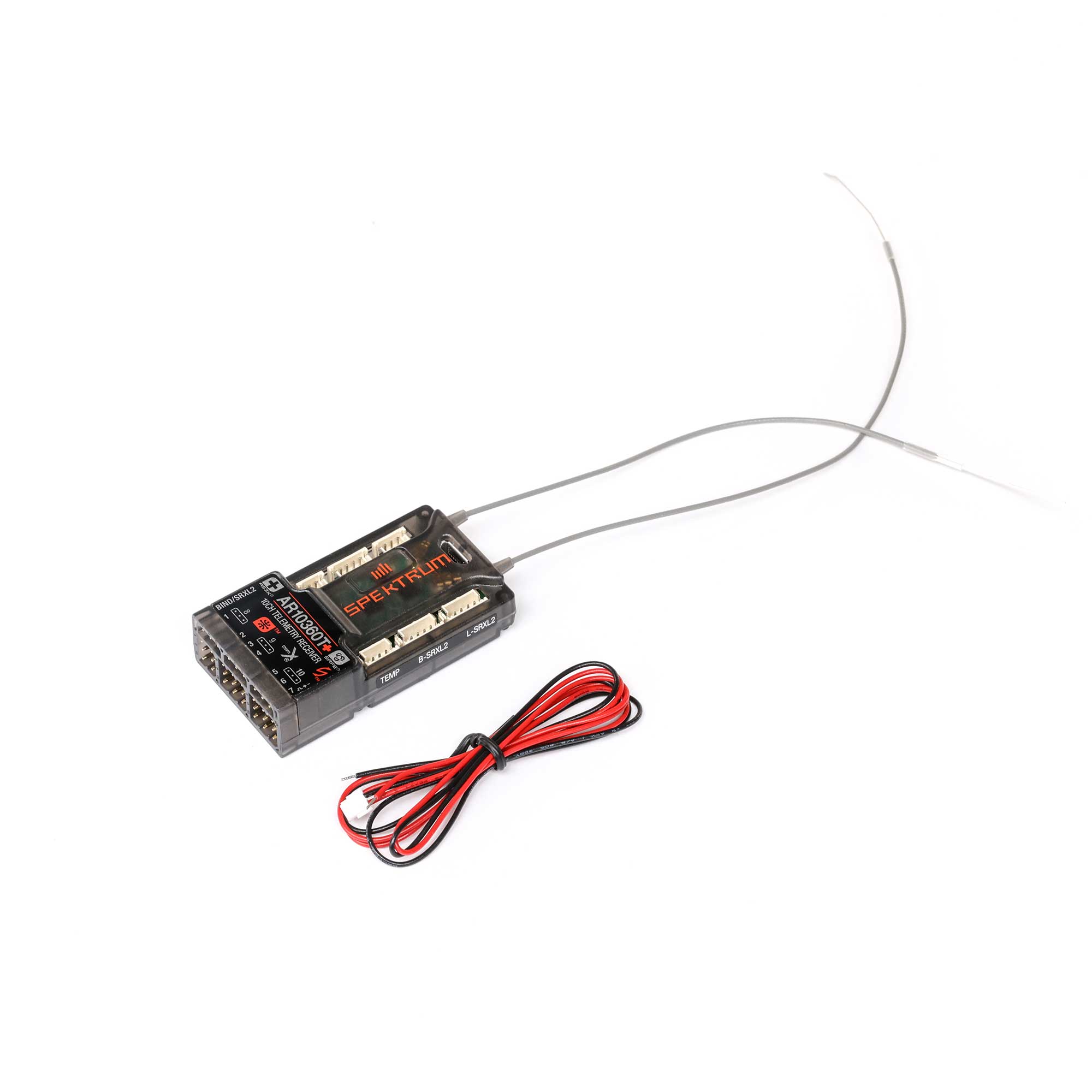

AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver

Item No. SPM-1034
Brand Logo
5 out of 5 Customer Rating

AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver

Item No. SPM-1034
$169.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. This receiver is full-range with built-in AS3X+® and SAFE® stabilization.
Key Features
  • Built-in AS3X+ stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro
  • Exclusive flight control software tuned by expert RC pilots
  • Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase
  • Smart Transmitter Model File Download support
  • Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application
icon-box
In The Box
  • (1) Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
  • (1) Spektrum Flight Pack Voltage Sensor
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) Telemetry Capable DSMX Transmitter
  • Servo Extension(s) May Be Required
AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver

Spektrum AR10360T+ 10-Channel Telemetry Receiver Overview

The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T+ is a full-range 10-channel receiver with built-in AS3X+® and SAFE® stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.

The AR10360T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features two SRXL2 ports for SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plus, or connect a battery. The AR10360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Model Files allows BNF models to be stored on the receiver to automatically set the model at bind. The AR10360T+ also features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application.

Go to www.spektrumrc.com for the latest receiver updates.

Spektrum AR10360T+ 10-Channel Telemetry Receiver Features

  • Compatible with all Spektrum DSM2 and DSMX transmitters
  • AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
  • Compact footprint fits most parkflyer size, sport class, and giant scale models
  • Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need for additional sensors
  • VOLT, RPM, and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
  • XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy, and more
  • Two external antennas will ensure secure RF coverage from all angles of the aircraft
  • Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
  • Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
  • End pin output pins for easy and compact installation
  • Forward Programming capable of setting individual failsafe parameters per channel, programming AS3X+ and SAFE parameters, and more
  • Micro USB port for firmware updating and model setup sharing capability
AS3X+ logo for AS3X+, the next generation is flight stabilization for rc pilots
NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes, including the first flight tuning.

Key AS3X+ improvements include:

  • Stop Lock and Release Rate parameters
  • Heading Hold improvements
  • Improved gryo filtering
  • Canard and Thrust Vectoring Support
Diagram of Smart transmitter model files support on the Spektrum receiver makes programming easy when setting up BNF
SMART TRANSMITTER MODEL FILES SUPPORT

Smart Transmitter Model Files is a new feature on the AR10360T+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.

Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.

Screenshot of the display of AS3X+ forward programming menu offers wireless configuration from any Spektrum transmitte
FORWARD PROGRAMMING

You can fully configure the AR10360T+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments. Setup everything from AS3X+ and SAFE to individual failsafe parameters right from your fingertips.

Diagram of Sensor assisted flight envelope technology provides with pitch and roll stabilization when flying RC aircraft
SAFE® TECHNOLOGY

SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

Diagram of real time current, voltage, temperature, and RPM data sent to Spektrum transmitter via smart telemetry technology
SMART TELEMETRY

Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

Diagram displays how SAFE® panic recovery can return your RC aircraft to a level flight
SAFE® PANIC RECOVERY

Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

Micro USB port allows for convenient updating and model setup sharing
MICRO USB PORT

The AR10360T+ features a convenient Micro USB port for updating and model setup sharing. Using a common Micro USB Cable (not included) and the latest version of the Spektrum PC Programmer, users can update the main receiver and any remote receivers currently attached to it. Also, with the AR10360T+, pilots can easily export, share, and upload AS3X+ and SAFE-enabled model presets.

Spektrum AS3X+ Receiver Firmware Update Guide

Product Specifications

Antenna Length 7.32" (186 mm)
Application Airplane, Sailplane
Band 2.4GHz
Bind Method Bind Button
Channels 10
Failsafe Yes
Forward Programming Yes
Input Voltage 3.5V–9V
Integrated Variometer Yes
Modulation DSMX/DSM2
Product Application Air, Sailplanes
Product Height 0.59" (15 mm)
Product Length 2.16" (55 mm)
Product Weight 18 g (0.63 oz)
Product Width 1.18" (30 mm)
Programmable Yes
Range Full
Remote Receiver Ports 2
Serial Out SRXL2
Technology AS3X+, SAFE
Telemetry Yes
Telemetry Range Full-Range Integrated
