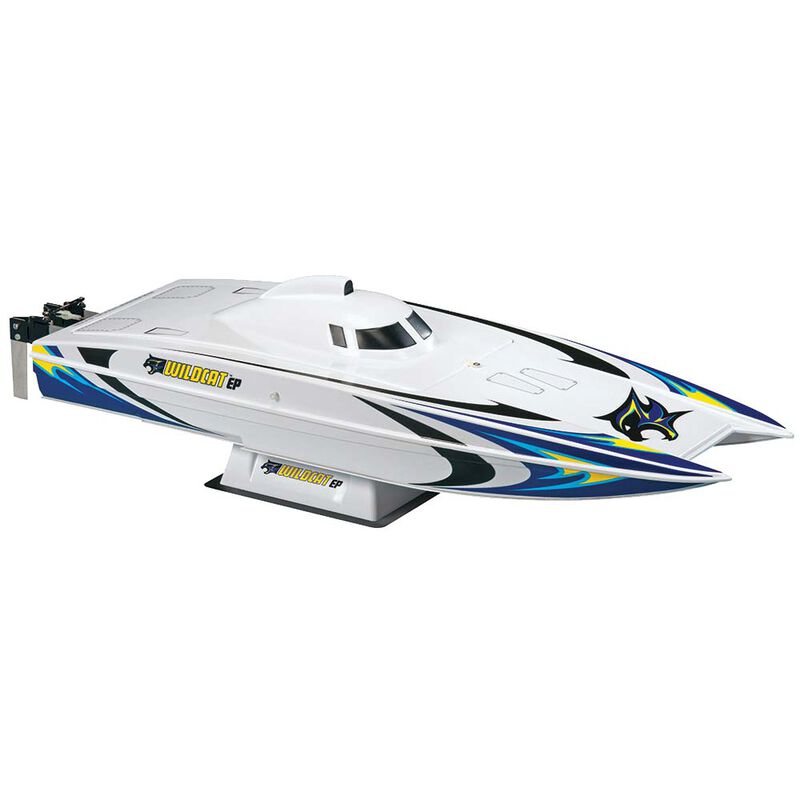

Wildcat Brushless Catamaran RTR

Item No. AQUB1811
Brand Logo
5 out of 5 Customer Rating

Wildcat Brushless Catamaran RTR

Item No. AQUB1811
This Item is No Longer Available
Selected Store

Product Details


Let the Wildcat EP loose and watch it fly! An 1800kV outrunner brushless motor delivers speed and efficiency. There's also a water-cooled LiPo-compatible 50A brushless controller with low-voltage cutoff, a stutter bump and Deans Ultra Plug connector. A Tactic TTX300 SLT radio system provides first-class control, and a “break-away” rudder system swings back upon impact to prevent damage to the hull.

Key Features

  • Hull: Molded ABS plastic with transom drain plug and preapplied graphics
  • Motor: 35-36-1800Kv brushless outrunner
  • Motor Mount: Water cooled aluminum with transom mounted water pickup
  • Drive System: Surface drive propeller system with 1/8" (3.2mm) shaft
  • Radio: Tactic SLT 2.4GHz TTX300 3-channel with fail safe, steering & throttle trim, servo reversing and steering rate adjustment, TR325 receiver
  • Electronic Speed Control: 50A water coooled, LiPo compatible, low voltage compatible and star plug
  • Propeller: Two blade 42mm diameter FRP (fiber reinforced plastic)
  • Rudders: Two aluminum construction with breakaway shear bolt design
Needed to Complete
  • AA Batteries: Four for transmitter
  • LiPo Battery: 3S 11.1V at least 2000mAh
  • Battery Charger: Compatible with selected battery
  • LiPo Charging Sack and Shore Equipment
What's in the box?
  • (1) RTR Wildcat Catamaran with Motor, Radio, Steering Servo, ESC, Stand and Instruction Manual



  • Length: 26.5" (673mm)
  • Overall: 29" (737mm)
  • Beam: 9" (229mm)
  • Height: 5.5" (140mm)
  • Weight: 32oz (89grams) RTR w/o batteries
  • Motor;

  • KV Rating: 1800kv
  • Operating Current: 3.8A, 8V/DC (without loading, 8V/DC)
  • Input: 3-S LiPo battery
  • Max Current: 55A/15S
  • Shaft Diameter: 4mm
  • Motor Resistance: 37 miliohms
  • Dimension: 1.4x1.42" (35mmx36mm)
  • Weight: 3.77oz (107g) ±.35oz (10g)
  • Plugs: 4mm
  • ESC;

  • Amps: 50 amp continuous
  • Max Amps: 65A 10 sec
  • Voltage Range: 9V-12.6V
  • BEC: 5V 2A
  • Motor Connectors: 4mm bullet (3)
  • Battery Connector: Star
  • Stutter Voltage: 9.7 volts
  • LVC: 9 volts
  • Wire Gauge: #14
  • Max Output Power: 500 watts
  • On-Resistance: 0.0015 ohms
  • Operating Frequency: 8KHZ PWM, 16MHZ MCU
  • Timing Angle: Auto

Product Specifications

Completion Level Ready-To-Run
Type Catamaran
