VXD Universal Axle Package

Item No. VPS08110
Brand Logo
5 out of 5 Customer Rating

VXD Universal Axle Package

Item No. VPS08110
$137.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Selected Store

Product Details

Key Features

  • Fully constructed of domestic high strength chromoly steel
  • 5mm Stub Shaft Design*
  • Squared Locker Engagement Design - Features higher cross sectional area engagement for increased strength
  • Chromoly Spool is included and required for use with these axles
  • 12mm Clamping Hexes with 5mm thru bore
  • Comes hand assembled
  • Ultra high strength 4-way cross pin
  • Replaceable bushings for a longer lasting product
  • Rebuild and replacement parts available
  • Achieve up to 60 degree of steering angle
  • Design for maximum material between link mount screws, some rubbing may occur**

Overview

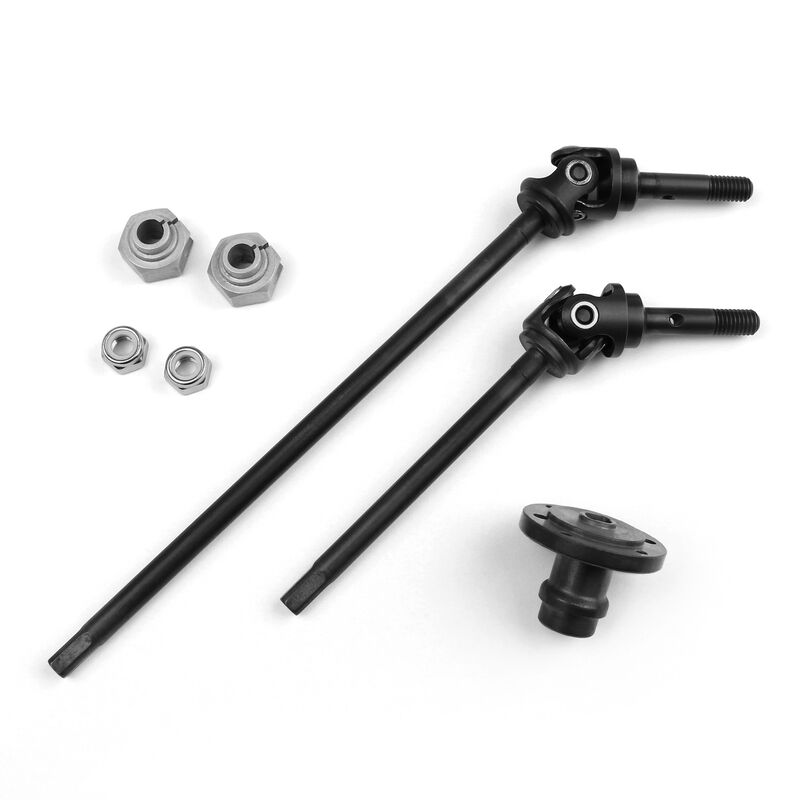

This is the Vanquish Ultra Heavy Duty Rebuildable Universal-style axle shaft for any AR60 axle.

*5mm stub shaft requires the use of an 8mm driver to tighten the included lock nut. Many 8mm drivers have too large of an outside diameter to fit into many wheels. A compatible modified 8mm driver is available (VPS07100).

**May require slight grinding of screws that hold lower link mounts.

*** You will need to provide a hex cross pin for use with these axles (Axial Part AX30163)

Note: Universal style axles will have a chattering effect at high angles, this is normal with almost all universal style designs.
