Tekin Eliminator Gen4 Sensored Brushless Drag Racing Motor, 17.5T

Item No. TEKTT2693
Backorder
Brand Logo
5 out of 5 Customer Rating

Tekin Eliminator Gen4 Sensored Brushless Drag Racing Motor, 17.5T

Item No. TEKTT2693
$109.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Next Shipment April 2024
Selected Store

Product Details

Tekin’s GEN4 Lineup introduces the Eliminator purpose built Drag Racing motor, engineered for award-winning performance!
Key Features
  • 60 Degrees Adjustable Timing Advance
  • Drag Racing Specific Design
  • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
  • ULTRA TORQUE Neodymium Sintered Magnet
  • Precision Engineered for Maximum Energy Conversion
icon-box
In The Box
  • (1) 17.5 Gen4 Eliminator Motor
Tekin Eliminator Gen4 Sensored Brushless Drag Racing Motor, 17.5T

Introduction

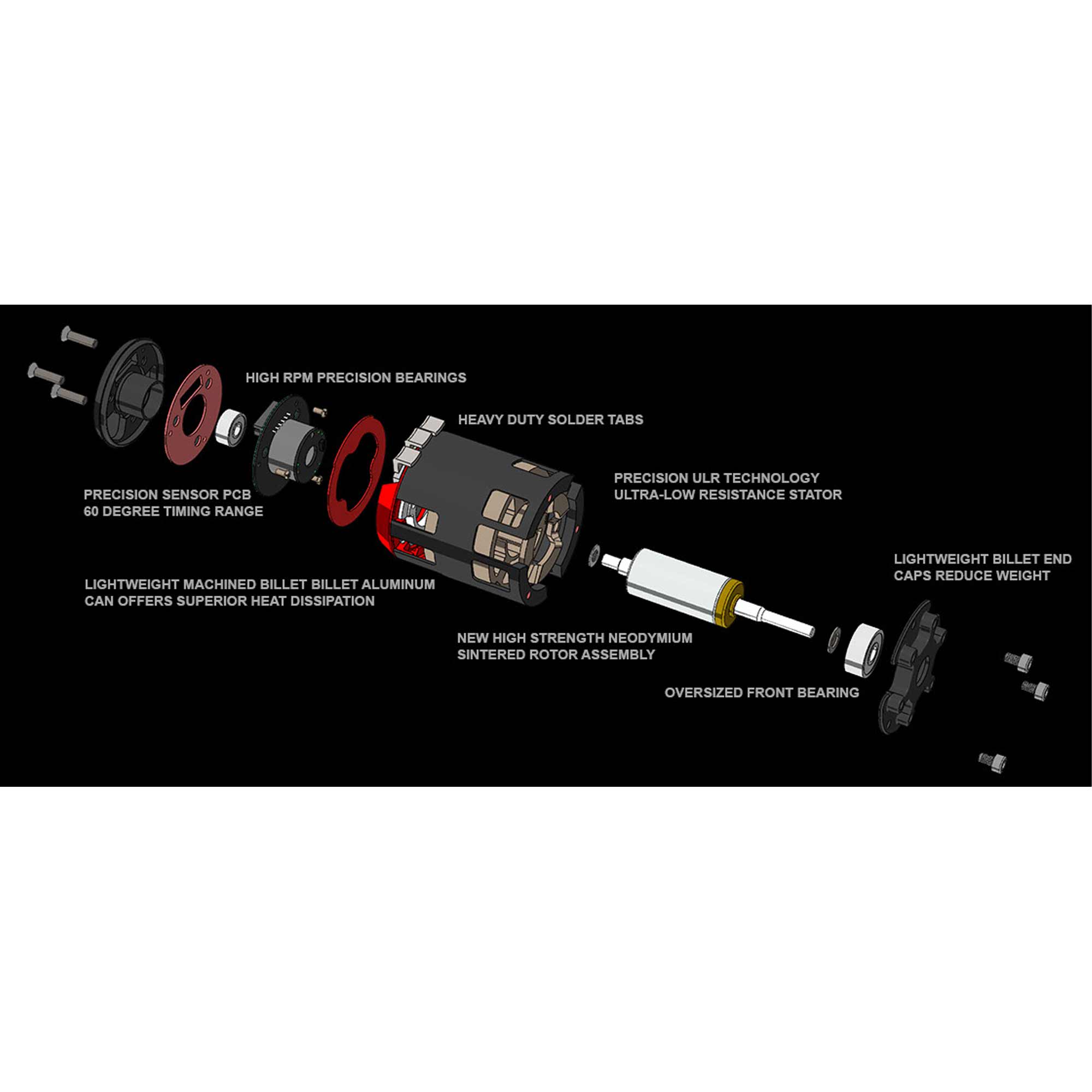

Utilizing Oversized Ultra Torque rotors and the best materials available, we designed the Eliminator to cut weight while reducing resistance, resulting in a purebred Drag Racing machine. From Pro Mod to Street Eliminator classes, the Eliminator motors create huge power across all RPMs whenever you need it. The GEN4 Eliminator is competition performance with the speed and power you need to gap the competition.

Features

  • 60 Degrees Adjustable Timing Advance
  • Drag Racing Specific Design
  • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
  • ULTRA TORQUE Neodymium Sintered Magnet
  • Precision Engineered for Maximum Energy Conversion
  • High Purity Copper Windings Maximize Conductivity
  • Low Resistance, High Power Solder Tabs
  • Sensored System Ready
  • Anodized End-bell Plates Maximize corrosion and Wear Resistance
  • High RPM Precision Bearings
  • Oversized Front Bearing
  • Rebuild-able Design
  • Solder-less Sensor PCB Replacement
  • Legal in Major Race Governing Bodies
  • No-Prep RC Legal

Product Specifications

Input Voltage 1-2S LiPO
Shaft Length 0.6023622" (15 mm)
Motor Size 17.5 Turn
Product Length 1.978" (50 mm)
Bushing Or Bearing Bearing
Forward Yes
Adjustable Timing Yes
Motor Type Brushless
Outer Diameter 1.4" (36 mm)
Application Drag Racing
Product Weight 5.1oz / 145g
Shaft Diameter 1" (25 mm)
