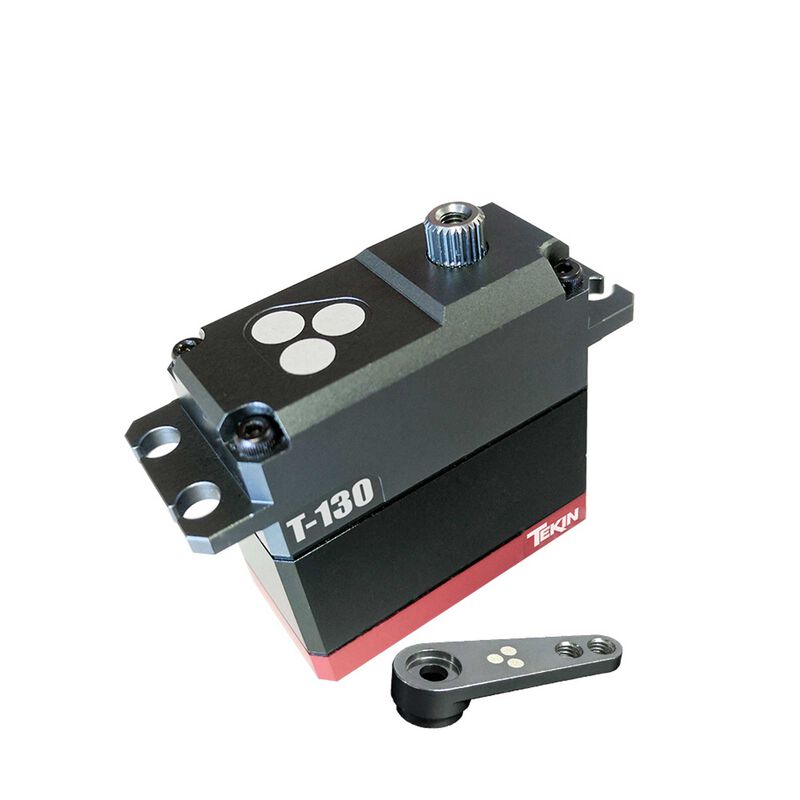

T130 Standard Digital HV High Torque High Speed Metal Gear Servo

Item No. TEKTT1502
Discontinued
Brand Logo
5 out of 5 Customer Rating

T130 Standard Digital HV High Torque High Speed Metal Gear Servo

Item No. TEKTT1502
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Specifically Designed for 1/12 and 1/10 Scale Applications
  • Included Aluminum 20mm Vector Servo Arm
  • Full Aluminum Servo Housing
  • Precision Cut Full Metal Gears
  • ABEC5 Ball Bearings
  • Digital Magnetic Position Encoder
  • High Voltage Capable
  • High Torque Coreless Motor
  • 25T Output Spline
  • Programmable via HotWire Interface
  • Overload Protection Technology
  • Thermal Protection Circuitry
  • Low Voltage Alarm*
  • Quiet, Efficient, Cool Operation
  • HDAC: High Density Copper PCB's
  • *requires HotWire sold separately

Overview

Command every turn and pass the competition with confidence using this T-130 Servo. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.

Product Specifications

Specs

Servo Type Digital
Servo Size Category Standard
Speed 0.03 sec/60 deg @ 8.4V
Spline Count 25-Tooth
Torque 148 oz-in (10.7kg-cm) @ 8.4V
Servo Operating Voltage 4.8 - 8.4V (HV)
Motor Type Coreless
Product Height 1.57 in (40mm)
Product Length 1.57 in (40mm)
Product Weight 2.53 oz (72g)
Product Width 0.79 in (20mm)
Programmable Yes
Maximum Servo Torque 100-199 oz-in
Maximum Servo Speed 0.001-0.049 sec
Gear Type Metal
Bushing Or Bearing Bearing
Application 1/12 and 1/10 Scale
