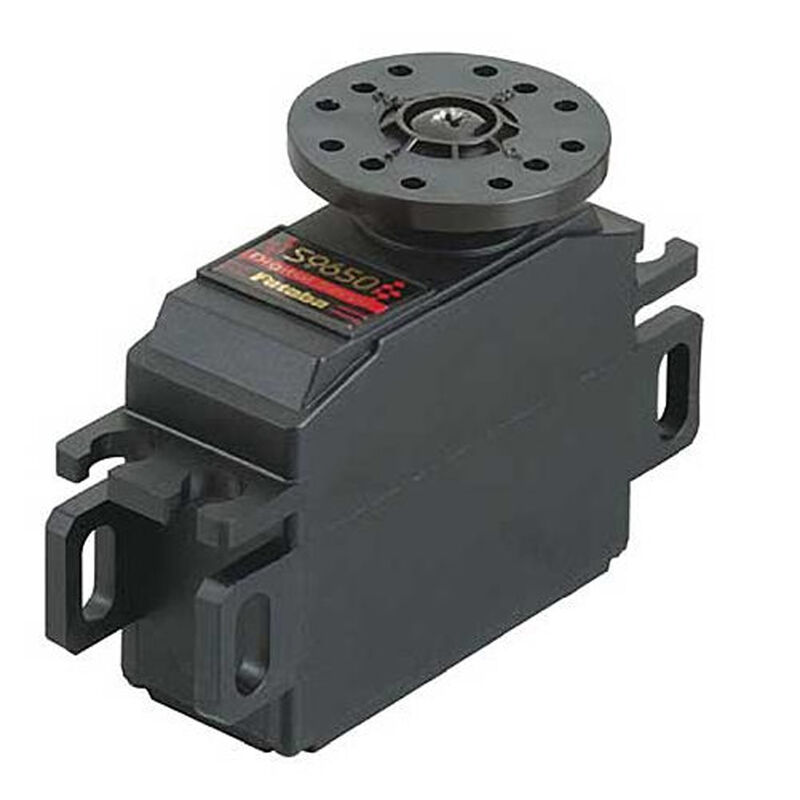

S9650 Digital Mini Servo

Item No. FUTM0260
Backorder
Brand Logo
3.7 out of 5 Customer Rating

S9650 Digital Mini Servo

Item No. FUTM0260
$69.99
RC Club points earned on this item shown at checkout.
Back Order
Selected Store

Product Details

Key Features
  • Coreless motor: conventional servo motors have a steel core armature wrapped with wire that spins inside magnets. In a coreless design the armature uses a wire mesh that forms a cup that spins around the outside of a magnet. This arrangement is much lighter, which results in smoother operation and faster response time.
  • Nylon Gears
  • Can be used with 1/12 or 1/18 scale vehicles and electric helicopters
  • Dimensions: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
  • Weight: .92oz (26g)
  • SPEED: 0.14 sec/60° @ 4.8V 0.11 sec/60° @ 6.0V
  • TORQUE: 50 oz-in (3.6 kg/cm) @ 4.8V 63 oz-in (4.5 kg/cm) @ 6.0V
icon-box
In The Box
  • One servo w/ 4 rubber grommets and brass eyelets, and one .83" (21mm) diameter round horn
  • Instruction/Precaution sheet
S9650 Digital Mini Servo
