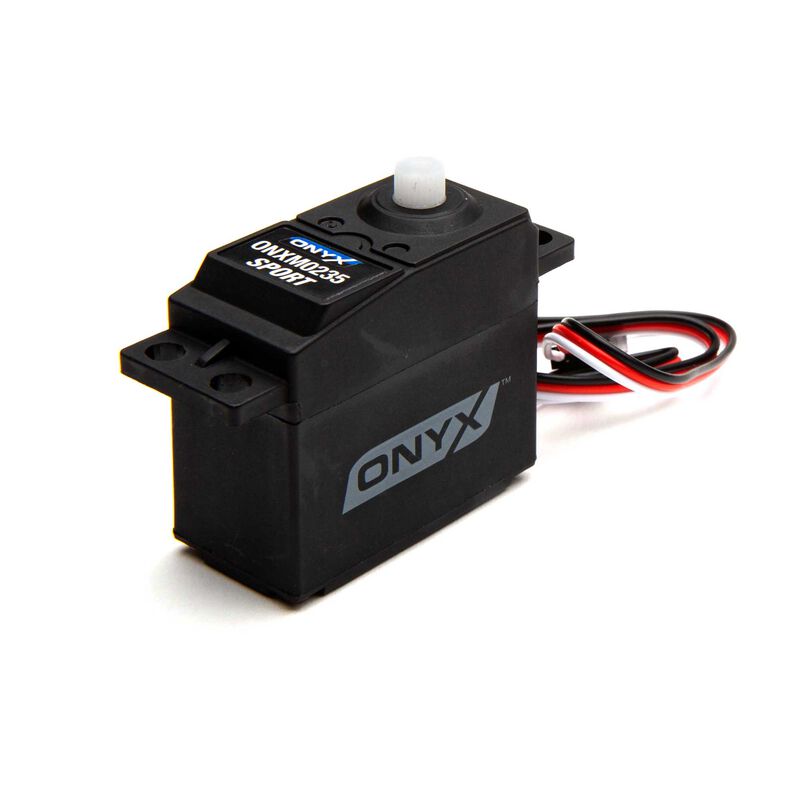

S35 Standard Sport Servo
Item No.
ONXM0235
S35 Standard Sport Servo
Item No.
ONXM0235
$8.99
Price reduced from
$13.99
to
Selected Store
Product Details
Quick Links
Manuals & SupportFeatures
- All mounting hardware included.
- 1-year limited warranty
- Servos feature a universal connector compatible with all major radio brands.
Overview
Expertly engineered Onyx servos deliver the speed, torque and precision needed for optimal results in a wide variety of applications. Onyx servo options allow you to match your needs to the letter. Select from analog or digital styles, plastic or metal gears, and options with ball bearings and coreless motors. Onyx servos are solid buys in long-lasting performance and a pleasant surprise in value. Onyx servos are a simple way to enjoy savings without sacrificing performance. All Onyx servos are protected by a 1-year limited warranty. All also include a universal connector and mounting hardware.
Product Specifications
Specs
| Bushing Or Bearing | Bushing |
| Gear Material | Plastic |
| Maximum Servo Speed | 0.150-0.199 sec |
| Maximum Servo Torque | 40-99 oz-in |
| Product Height | 1.4 in (37mm) |
| Product Length | 1.6 in (40 mm) |
| Product Weight | 1.3 oz (38 g) |
| Product Width | 0.79 in (20 mm) |
| Programmable | No |
| Servo Operating Voltage | 4.8 - 6.0V |
| Servo Size Category | Standard |
| Speed | 0.18 sec/60 deg @ 4.8V, 0.16 sec/60 deg @ 6.0V |
| Spline Count | 25 Teeth |
| Torque | 68 oz-in (4.9 kg-cm) @ 4.8V; 73 oz-in (5.3 kg-cm) @ 6.0V |
