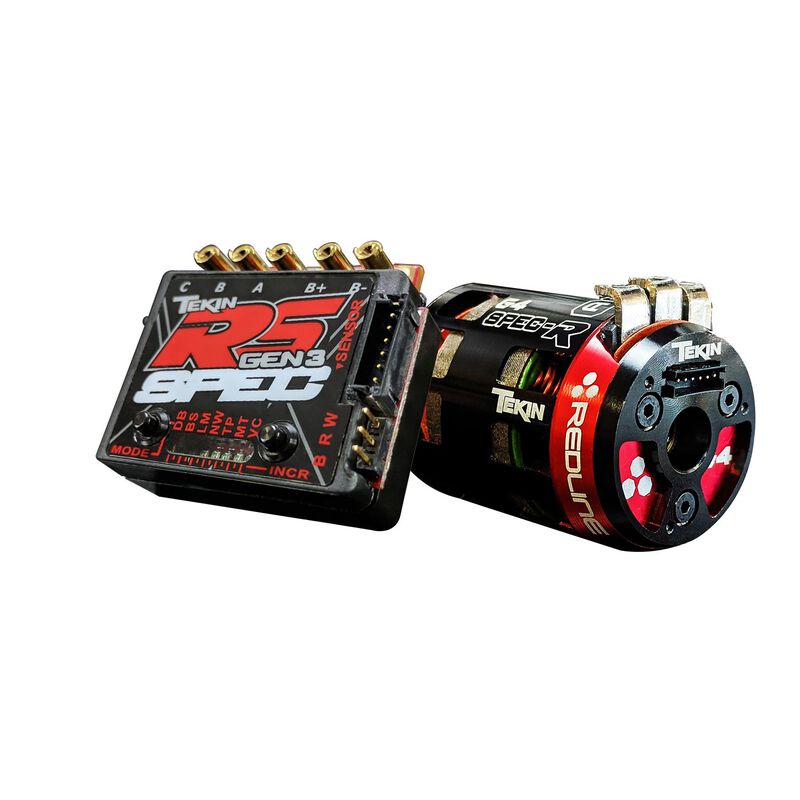

RS GEN3 SPEC ESC/17.5T GEN4 SPEC-R Sensored BL Motor System

Item No. TEKTT2792
Backorder
Brand Logo
5 out of 5 Customer Rating

RS GEN3 SPEC ESC/17.5T GEN4 SPEC-R Sensored BL Motor System

Item No. TEKTT2792
$209.99
Free financing available through Easy Pay
Earn points on this item
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Next Shipment April 2023
Selected Store

Product Details

icon-box
In The Box
  • (1) RS GEN3 SPEC ESC
  • (1) 17.5T GEN4 SPEC-R Sensored BL Motor

ESC Features

  • Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0
  • ROAR Spec Mode Only - NO TIMING FEATURES
  • New HD Solder Post Design
  • 3rd Channel Input for On-The-Fly Drag Brake Adjustments
  • QuickTune™ One Touch Programming
  • Adjustable Torque Control *
  • Adjustable Throttle and Brake Frequencies *
  • High Voltage Programmable BEC *
  • HotWire™ Programming Port *
  • Data Logging Capability *
  • Sensor Checker
  • On-Board Temperature Indicator
  • ESC Self Diagnostics with Error Codes
  • Fully Proportional
  • Forward/Brake/Reverse
  • Brushless and Brushed Motor Drive
  • Sensored or Sensorless Operation
  • LiPo Safe with Custom Voltage Cutoffs
  • Sensor Plug for Precise Commutation
  • Lightweight Chassis Design
  • HDAC: High Density Copper PCB's
  • Ultra-smooth and Precise Throttle and Braking Control

ON BOARD QuickTune™ PROGRAMMABLE FEATURES

  • DB - Drag Brake (13 steps)
  • BS - Brake Strength (13 steps)
  • LM - Torque Limiter (7 steps)
  • NW - Neutral Width (13 steps)
  • TP - Timing Profiles 5 Preset - 2 Custom*
  • MT - Motor Type
    Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
    Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
  • VC - Voltage Cutoff : 2S, 3S, Custom*
  • * requires HotWire™ sold separately.

ESC Overview

The RS GEN3 SPEC is designed for SPEC racing and offers professional performance at an affordable price. Packed with the latest hardware and HotWire programmable features like Data Logging, the RS SPEC gives you the tools and control you need to win. True ROAR SPEC mode with no timing or boost features with easily identifiable "blinky mode" LEDs. Rated for 13.5T and higher 540-size brushless motors, the RS SPEC is the ultimate in SPEC racing performance! Next generation components and new firmware make the new RS GEN3 SPEC our smoothest, best-driving SPEC ESC ever.



Motor Features

  • 60 Degrees Adjustable Timing Advance
  • SPEC Racing Specific Design
  • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
  • Neodymium Sintered Magnet
  • Precision Engineered for Maximum Energy Conversion
  • High Purity Copper Windings Maximize Conductivity
  • Low Resistance, High Power Solder Tabs
  • Sensored System Ready
  • Anodized End-bell Plates Maximize Corrosion and Wear Resistance
  • High RPM Precision Bearings
  • Oversized Front Bearing
  • Rebuild-able Design
  • Solder-less Sensor PCB Replacement
  • Legal in Major Race Governing Bodies
  • ROAR Approved

Motor Overview

Tekin’s SPEC-R brushless motors are engineered for award-winning performance. Utilizing the best materials available we redesigned the SPEC-R to cut weight while reducing resistance, resulting in a purebred Spec racing machine. On Road or Off, the SPEC-R handles all situations, providing smooth power and control across all RPMs when you need it. The SPEC-R is competition performance with the speed you need to win. Pair with an RS PRO Black Edition for the ultimate in SPEC Racing Equipment.

The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 SPEC-R motor is a premium performance power plant for the serious racer.



ESC Specifications

  • Controls: Forward/Brake/Reverse
  • Input Voltage: 2S LiPo / 4-7S NiMH-NiCD
  • Motor Limit Brushless Mode 2S: 13.5T 2-pole 36mm Can
  • Motor Limit Brushed Mode 2S: 20T 36mm Can
  • Max Current: 70amps per phase*
  • BEC: 6.0v @ 3.7amps
  • Dimensions: 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm
  • Weight: .80oz / 22.5g
*per manufacturer spec

Motor Specifications

  • Input Voltage: 1-2S LiPO - 25.5T / 21.5T / 17.5T / 13.5T / 10.5T / 6.5T
  • Weight: 5.1oz / 145g
  • Shaft Dimensions: 3.18mm (1/8") x 15.3mm
  • Motor Diameter: 35.85mm / 1.40"
  • Motor Length: 50.25mm / 1.978"
  • Max Operating Temperature: 180°F / 82°C
  • Bearing Dimensions:
    Front: 4x13x5mm
    Rear: 1/8x3/8x5/32"
  • Rotor Size:
    12.3mm BLACK - 25.5T
    12.5mm BLUE - 21.5T / 17.5T / 13.5T / 10.5T
  • Rebuildable: Yes
