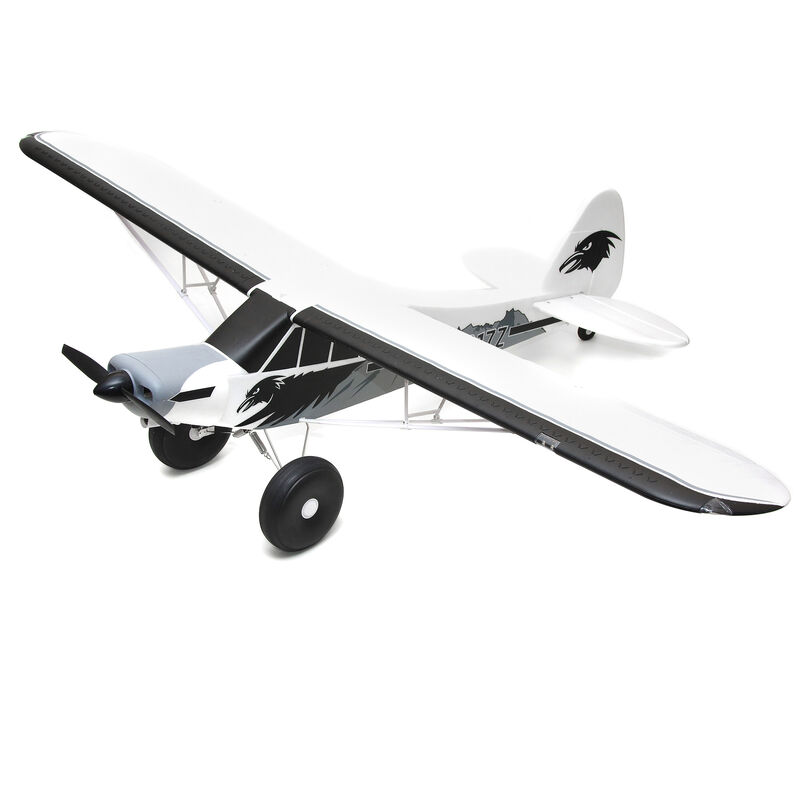

PA-18 Super Cub EP PNP, 1700mm with Floats

Item No. FMM110PF
Discontinued
Brand Logo
4.1 out of 5 Customer Rating

PA-18 Super Cub EP PNP, 1700mm with Floats

Item No. FMM110PF
This Item is No Longer Available
Selected Store
PA-18 Super Cub 1700mm PNP with Floats and Reflex
PA-18 Super Cub 1700mm PNP with Floats and Reflex
FMM110PFX
View Alternate Product Details

Product Details

Key Features
  • Powerful 3541- 750KV Outrunner motor with Predator 45A ESC provides adequate thrust for any situation.
  • CNC metal landing gear structure for less-than-perfect landings.
  • 6.25-inch oversized balloon tires for all-terrain operations.
  • STOL capable (Takes off in less than 3m/10ft)
  • Pre-installed navigation and landing lights
icon-box
In The Box
  • (1) PA-18 Super Cub 1700mm EP PNP with Floats
  • (1) User Manual
icon-how-to
Needed to Complete
  • Full-range, 5+ channel transmitter
  • Full-range, 5+ channel receiver
  • 2200-3200mAh 4S LiPo flight battery
  • Compatible LiPo charger
PA-18 Super Cub EP PNP, 1700mm with Floats

Features

  • Scale-inspired trim scheme
  • Durable EPO foam construction
  • Strong aluminum landing gear with shock-absorbing articulation for all-terrain operations
  • Oversize 6.25-inch tundra tires
  • Functional flaps for remarkable STOL performance
  • Factory-installed navigation and landing LED lights
  • Two-piece plug in wing with carbon-fiber tube
  • Folding wing struts for easy transportation and storage
  • Large front-hatch allows for easy access to LiPo battery changes
  • Includes float set and single water rudder for float plane conversion
  • High power 4S compatible brushless motor and 45-amp ESC
  • Direct-link servo setup offers precision movement
  • No glue required- can be ready to fly in less than one hour

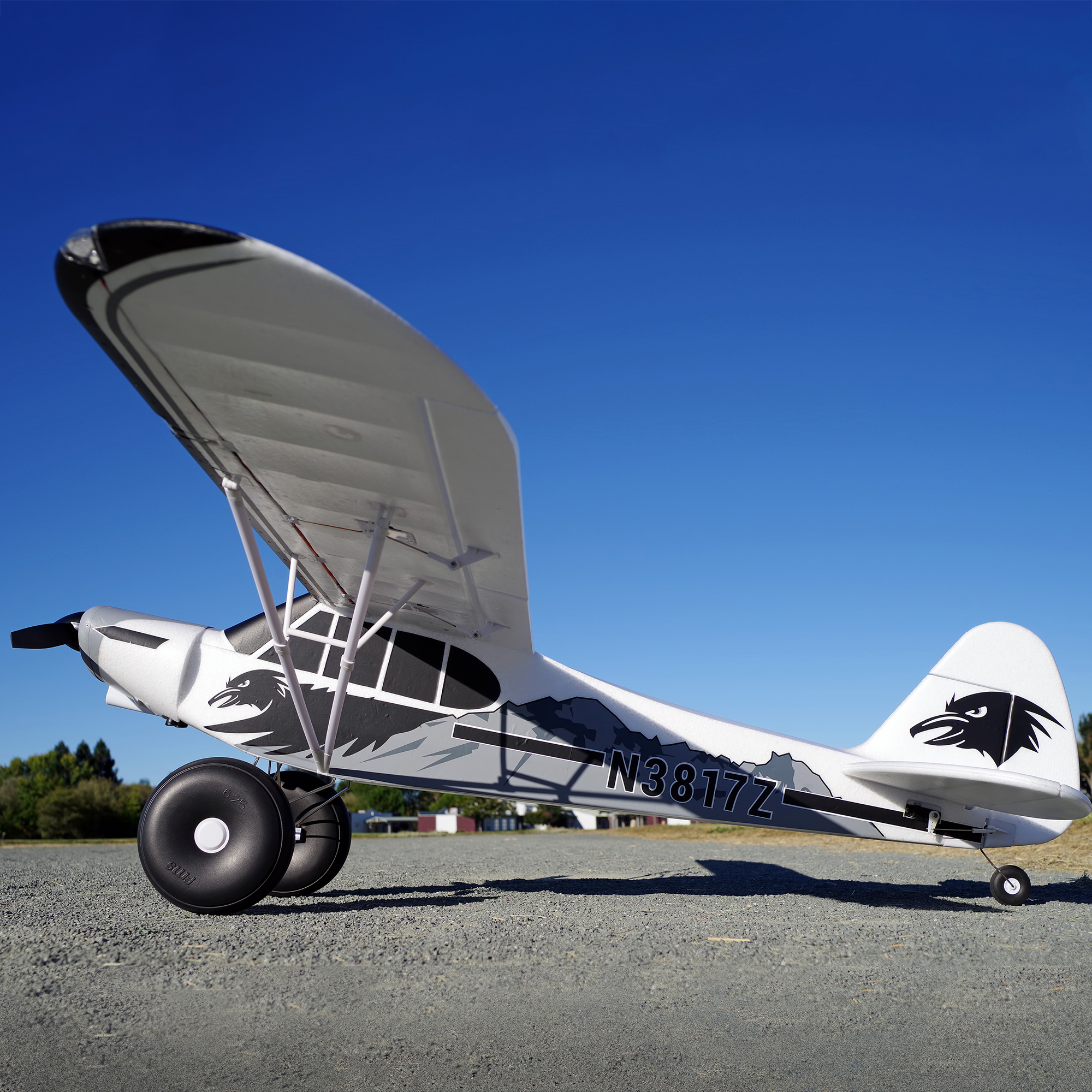

Overview

The Piper PA-18 Super Cub is a two-seat, single engine aircraft designed by the Piper Aircraft Company. First introduced in 1949, Super Cubs rugged construction, impressive payload and marvelous short-field performance quickly made it a mainstay of the bush flying fleet.

Like its full-sized counterpart, the FMS PA-18 Super Cub has excellent handling at low speeds and wide performance. FMS selected an attractive, scale-inspired silver, white and black paint scheme to make this all-time-classic stand out from the crowd. Components such as LED lights, large tundra tires, and functional flaps are replicated with authentic detail. Flying off water couldn’t be any easier with the included float set with water rudder. The factory installed 4S compatible power system combine with the functional flaps delivers STOL performance from smooth or rough terrain. For pilots looking for an easy-to-fly, scale aircraft with gentle trainer-like flight characteristics, plenty of power and an unmistakable golden-age appearance—the FMS PA-18 Super Cub 1700mm is all that, and more.

Video Overview



Video Overview

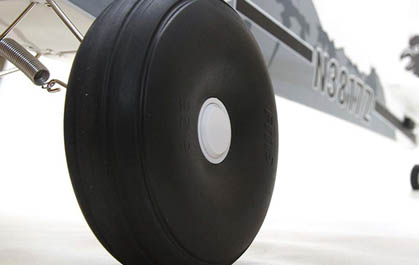

Tires
Tires

Oversize 6.25-inch tundra tires ready for any surface conditions.

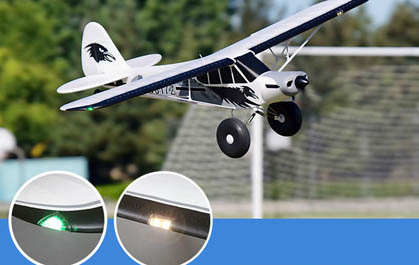

Navigatin and Landing Lights
Navigation and Landing Lights

Pre installed navigation and landing lights

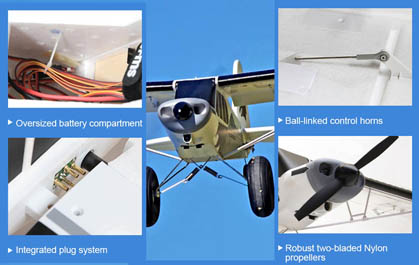

Build Time
Build Time

A screw together air frame, integrated plug system, pre-installed ball link control horns, all increase the reliability and precision of the aircraft while shortening build time.



FEATURE_TITLE

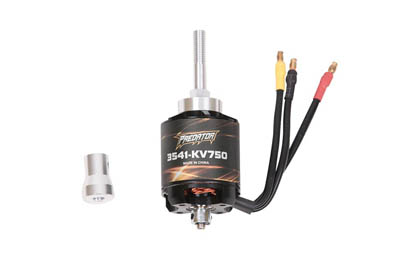

Brushless Motor

High power 4S compatible brushless motor



FEATURE_TITLE

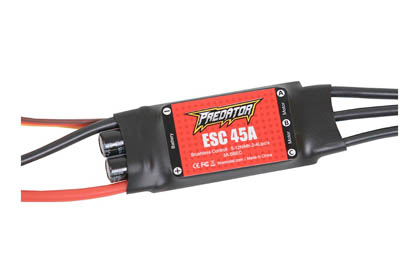

ESC

High Power 45-Amp ESC



FEATURE_TITLE

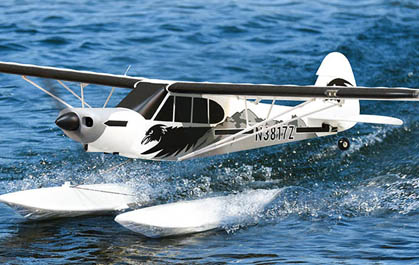

Optional Floats

Optional floats and stainless steel struts allow pilots to operate off the water.



Product Specifications

Motor Type Brushless
Speed Control Included
Wing Area 4.52 sq ft. (42 sq dm)
Product Weight 74 oz (2100g)
Wing Loading 15.8 oz/sq ft. (50g/sq dm)
Approximate Assembly Time Less than 1 Hour
Approximate Flight Time 10 minutes
Flaps Yes
Material EPO
CG (Center of Gravity) 80-85mm (from leading edge, at the root)
Completion Level Plug-N-Play
Propeller Size 12 x 7.5, 2-blade
Battery Sold Separately
Connector Type XT-60
Motor Size Brushless 3541, 750Kv outrunner (installed)
Product Length 44.71" (1136 mm)
Motor Design Outrunner
Receiver Sold Separately
Power Type Electric
Servos Included
Wingspan 66.91" (1700 mm)
Minimum Required Radio Full-range, 6+ channel transmitter
