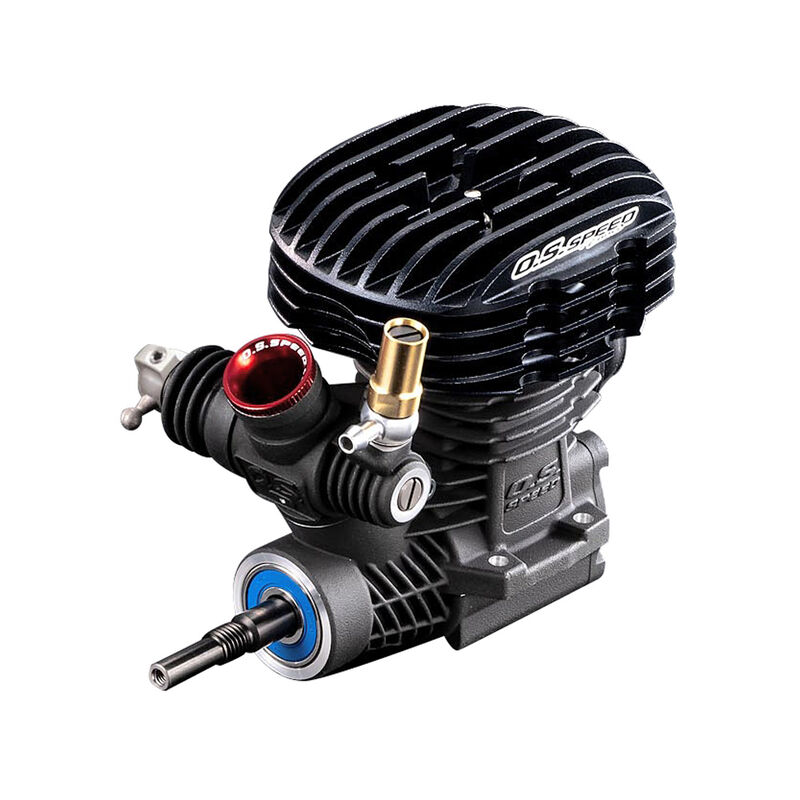

O.S. Speed B2103 Type S Competition 1/8 Buggy Engine
Item No.
OSMG2067
Product Details
Key Features
- The crankcase, on which OS SPEED logo is engraved, has enough surface area for effective heat dissipation.
- Type S 3– ports liner performs well at medium and low speed range
- Type S has high vertical finned low-profile cooling head for improving the car drivability with low gravity
In The Box
- (1) O.S. Speed B2103 Type S Competition 1/8 Buggy Engine
Quick Links
Overview
O.S. SPEED B2103 TYPE S is a factory tuned engine for 1/8 off-road competition, most parts of which are newly designed; carburetor, crankcase, piston/liner, crankshaft, and inner head. The cooling head is low-profile type, which has low-gravity center with high vertical fins, which contributes to efficient heat dissipation. To say nothing of improvement over its power performance, the inner head with silicon o-ring improves anti-vibration and dustproof performance. The new ball link of carburetor makes linkage adjustment easier.
Video Overview
Product Specifications
| Manufacturer # | 1BN00 |
| Bore | 0.64 in (16.27 mm) |
| Crankshaft Threads | UNF1/4-28 |
| Cylinders | Single |
| Cylinder Type | Type R 5-port |
| Displacement | 0.213 cu in (3.49 cc) |
| Engine (Only) Weight | 12.42 oz (352 g) |
| Power Type | Glow |
| HP | 2.68 PS, 2.64 HP @ 34,000 rpm |
| Muffler Type | Tuned Muffler |
| RPM Range | 4,000 - 42,000 |
| Stroke | 0.66 in (16.80 mm) |
