MINI-Z 2WD MR-03 Mazda 787B No.55 LM RTR

Item No. KYO32328REB
Discontinued
Brand Logo
4.9 out of 5 Customer Rating

MINI-Z 2WD MR-03 Mazda 787B No.55 LM RTR

Item No. KYO32328REB
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • Factory assembled chassis
  • Pre-painted plastic body, complete with markings
  • 2.4GHz Perfex KT-531P 2.4GHz transmitter
  • Front tread adjustment parts set
  • Front suspension adjustment spacers
  • Pinion gears 6T, 7T, 8T, 9T
  • Wheel wrench
  • Pinion gear tool
  • Spare nuts
  • Pairing stick
  • Tires, wheels
  • Mini pylons
icon-how-to
Needed to Complete
  • (4) AAA-size alkaline batteries for transmitter
  • (4) AAA-size alkaline batteries or (4) Ni-MH batteries for chassis.
MINI-Z 2WD MR-03 Mazda 787B No.55 LM RTR

Features

  • Series includes the Syncro KT-531P transmitter with multiple setting options.
  • Circuit board with a developed control program realizes dramatically improved steering feel.
  • Highly detailed display-standard body is fully factory finished.
  • Full ball bearing specifications include 7 bearings, previously an optional upgrade.
  • Compatible with all MINI-Z Racer body styles. **Motor case and diff gear assembly to suit body are required to be purchased separately.
  • Front suspension incorporates VCS that optimizes camber angle with suspension stroke.

Overview

With just 8 x AAA-size batteries, the MINI-Z Racer allows anyone to enjoy the beautiful style and advanced performance of R/C cars. First launched in 2013, Kyosho has renewed the MINI-Z Racer Sports MR-03 concept to be even more user-friendly and appealing to more drivers with the MINI-Z RWD series! Widely popular body styles in highly detailed body sets create the incredibly realistic model lineup. Including the latest Syncro KT-531P transmitter with steering trim, throttle trim, dual rate, LED control function, the sponge grip of the steering wheel provides comfortable fit for precision control feel. The set also includes a car body finished to display-model standard that matches stunning style with the performance, reliability and durability of the MR-03 chassis. The control program on the circuit board realizes linear handling characteristics and can be further enhanced for even easier control by installing the optional gyro unit . This series represents the perfect package for a deep dive into the amazing world of R/C cars! Syncro KT-531P transmitter uses FHSS 2.4GHz and is not compatible with existing ASF/MHS/FHS 2.4GHz systems.

Reproduction Body
Reproduction Body

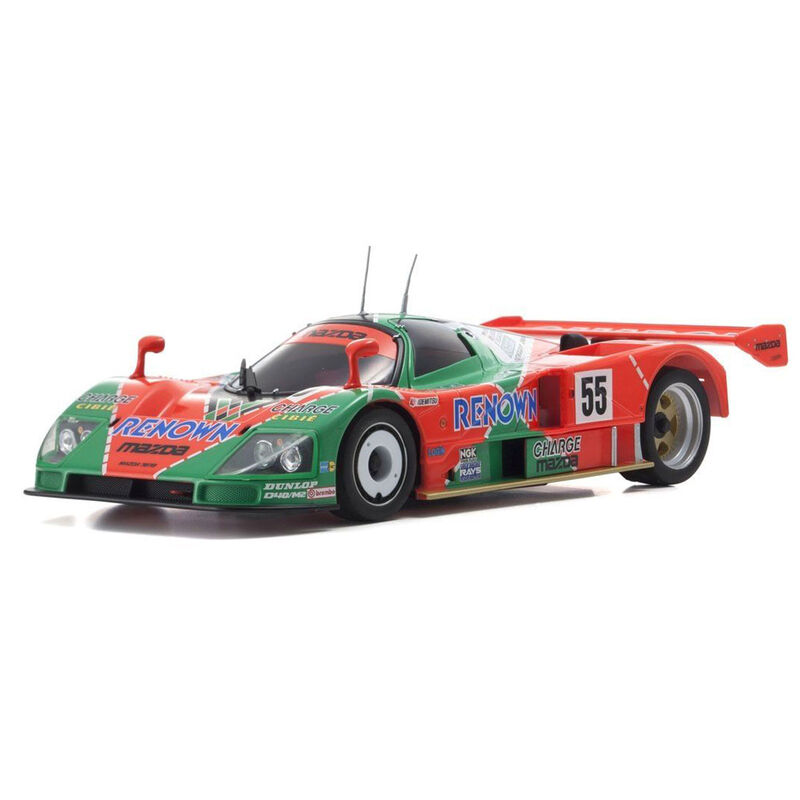

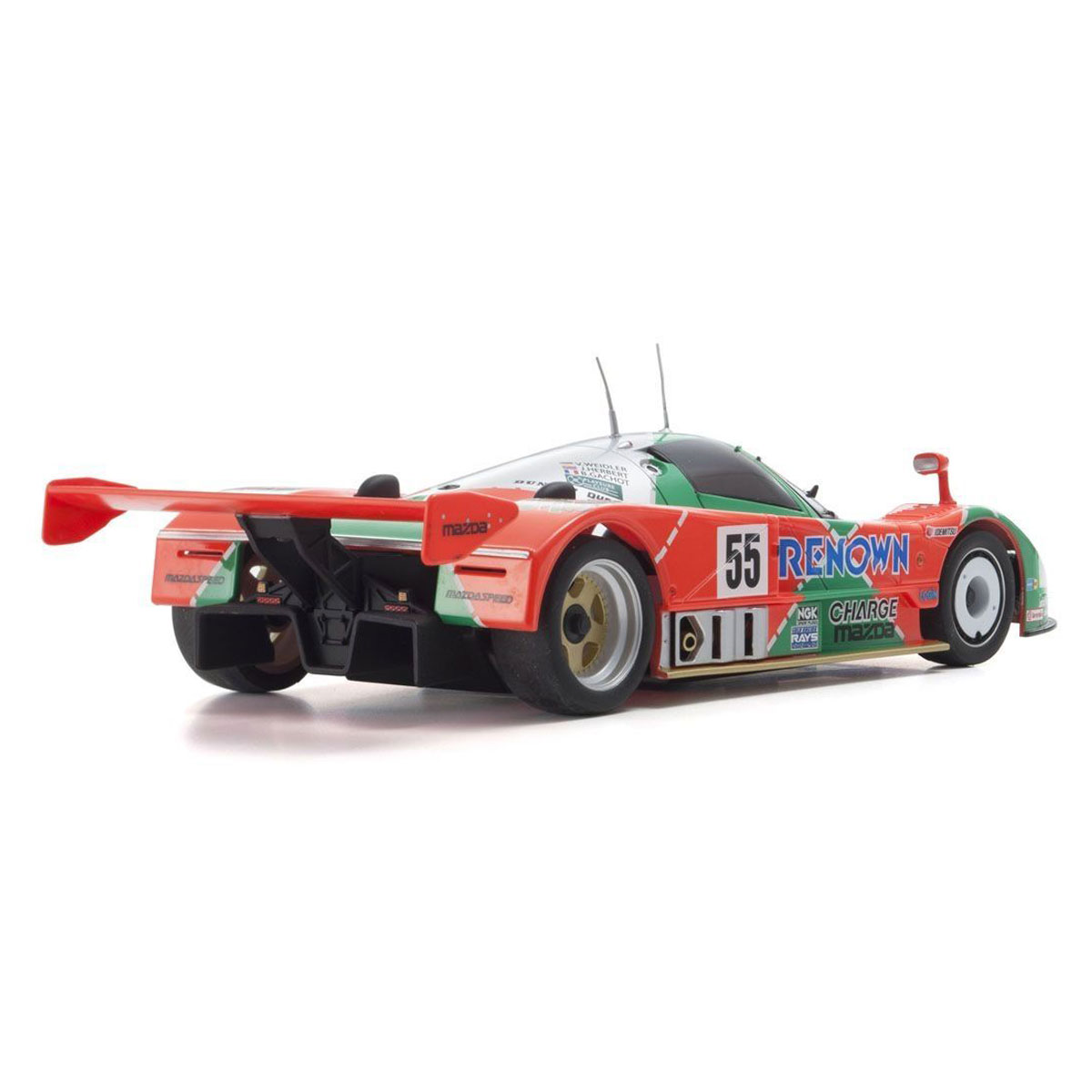

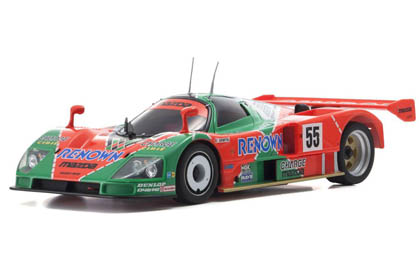

Immaculate reproduction of the Mazda Renown Charge 787B; the first Japanese car to claim the Le Mans 24 Hour endurance race trophy in 1991, which was the last year open to rotary engine cars.



Syncro KT-531P transmitter
Syncro KT-531P transmitter

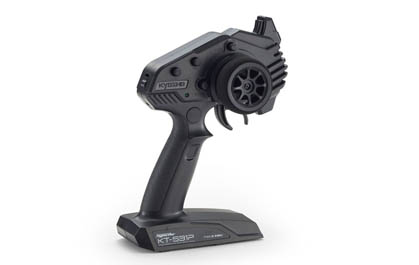

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning(default setting at the time of shipment is Training Mode).



Chassis
Chassis

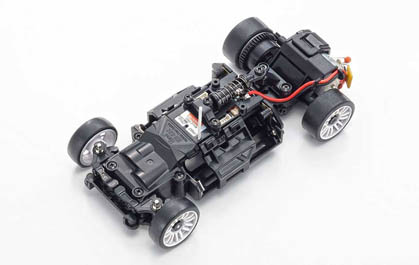

As the chassis is based on the proven MR-03 design, existing parts for the MR-03 and the optional gyro unit can be installed to enhance driving control.



Wheelbase
Wheelbase

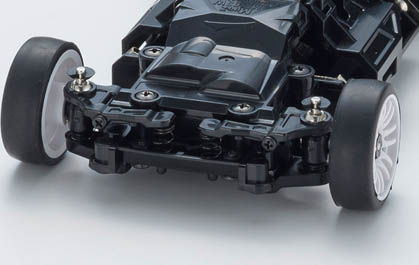

Tread can be set to narrow or wide by changing steering tie rods on front lower and upper plates. Wheelbase can also be changed to suit body style. (**Changing requires parts to be purchased separately).



Product Specifications

Completion Level Ready-To-Run
Drivetrain 2WD
Motor Type Brushed
Power Type Electric
Scale Mini
Vehicle Type On-Road
