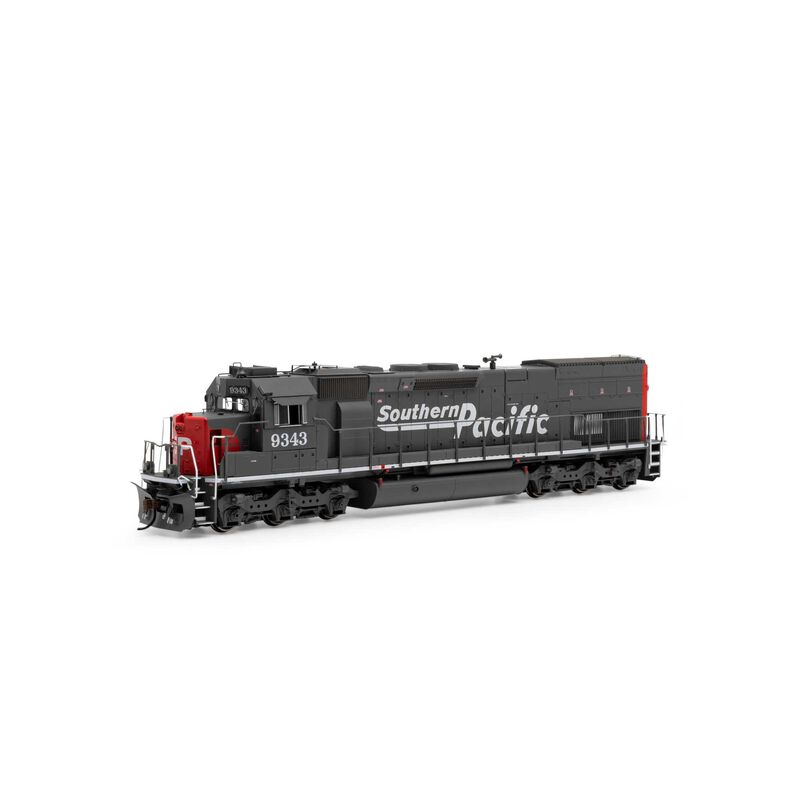

HO SD45T-2 Locomotive with DCC & Sound, SP/Speed Letter #9343

Item No. ATH86973
Pre-Order
Brand Logo
5 out of 5 Customer Rating

HO SD45T-2 Locomotive with DCC & Sound, SP/Speed Letter #9343

Item No. ATH86973
$239.99
RC Club points earned on this item shown at checkout.
Next Shipment August 2024
Selected Store

Product Details

SP FEATURES:

  • Nose headlight
  • Modified “L” window cab
  • Roof A/C and bell
  • Nathan P-3 Horn on long hood
  • Walkway mounted ditch lights
  • Large front plow
  • Large front anticlimber

As these units were ran hard in service since their initial debut, many were repainted into SP’s then-new Speed Lettering scheme of the 1990’s. By this time, the units had lost their SP lighting features in favor of the addition of front ditch lights. other changes included moving the horn to the long hood and modifying the “L” cab windows.

SD45T-2 SERIES LOCOMOTIVE FEATURES:

  • Fine scale handrails
  • Photo-etched windshield wipers
  • Separately applied air tanks
  • LED Lighting
  • HTC truck sideframes
  • Fixed, see-through cab windows
  • Welded ECAFB
  • All-wheel electrical pickup
  • See-through dynamic brake fans
  • Separately applied wire grab irons
  • Rubber trainline and MU hoses with silver ends
  • Standard late Dash-2 cab with or without “L” window per prototype
  • See-through radiator grilles with new rear truck gearbox specific for the tunnel motor
  • Speed recorder attached to appropriate axle per prototype (except undecorated)
  • McHenry® operating scale knuckle couplers
  • All-wheel drive with precision gears for smooth and quiet operation
  • 5-pole motor with flywheels and multi-link drivetrain for trouble-free operation
  • DCC Ready 21-pin NEM Quick Plug™ technology
  • Nickel plated, blackened machined wheels
  • Wheels with RP25 contours operate on all popular brands of track
  • Highly-detailed, injection molded body
  • Minimum radius: 18” — Recommended radius: 22”

SOUND-EQUIPPED MODELS ALSO FEATURE

  • Onboard DCC decoder with SoundTraxx Economi sound
  • Sound units operate in both DC and DCC
  • Full DCC functions available when operated in DCC mode
  • Engine, horn, and bell sounds work in DC
  • All functions NMRA compatible in DCC mode
  • Excellent Slow speed control
  • Effect lighting (if applicable) using F5 and/or F6
  • Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
  • Many functions can be altered via Configuration Value (CV) changes

PROTOTYPE SPECIFIC INFORMATION

The SD45T-2 is a six-axle diesel electric locomotive built by General Motors Electro-Motive Division having a 20-cylinder 645-series diesel engine producing 3600 horsepower. Over 200 examples were produced between 1972 and 1975. This locomotive including the SD40T-2 were nick-named “Tunnel Motors” due to the rear cool air intake lowered to just above the walkway at the rear of the locomotive. This helped provide cooler air into the locomotive’s radiator cooling system and ultimately reducing the chance of the engine overheating in tunnels.

Product Specifications

Scale HO
Sub Brand ATHEARN
Lighting LED
Sound Econami
DCC Equipped
Era 1941-1970
Prototype Manufacturer EMD
Axles 6
Reporting Mark SP
