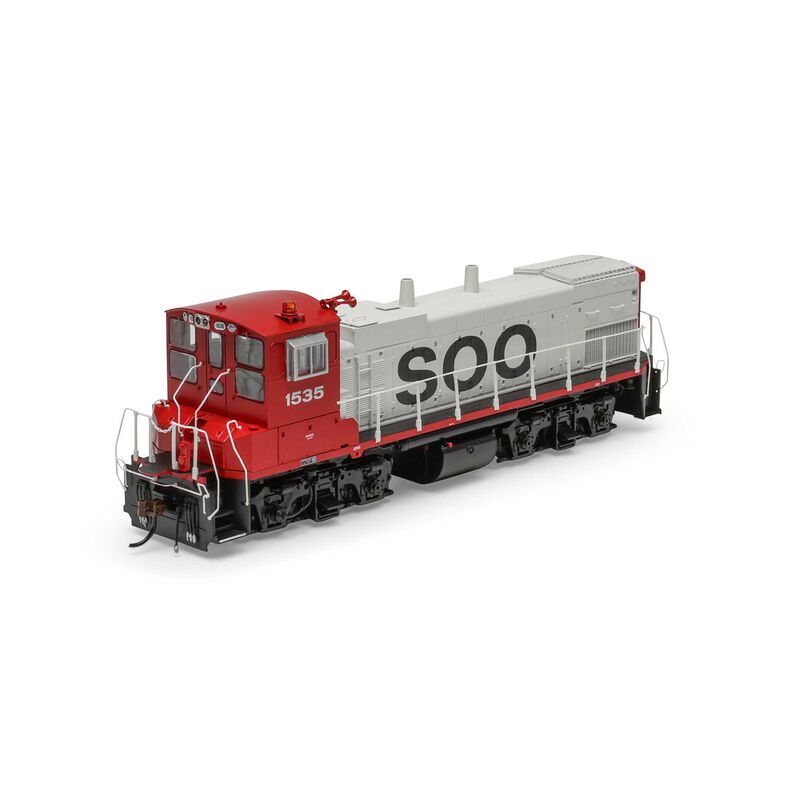

HO MP15AC Locomotive, SOO #1535

Item No. ATHG66269
Pre-Order
Brand Logo
3.2 out of 5 Customer Rating

HO MP15AC Locomotive, SOO #1535

Item No. ATHG66269
$234.99
RC Club points earned on this item shown at checkout.
Selected Store

Product Details

After the 1985 acquisition of the MILW from bankruptcy, SOO inherited their MP15AC’s along with other motive power. While many were simply patched and put back into service, a few got the full white and red SOO repaint treatment. Even though we have offered these numbers in the past, we thought it was time to announce these again, this time with LEDs and Tsunami 2 Sound!
Key Features
  • Operating ditch lights (if equipped)
  • Operating ground lights
  • DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector

PROTOTYPE SPECIFIC INFORMATION

The EMD MP15 is a light road switcher that was built between 1974 and 1980. It came in two designs, the MP15DC and the MP15AC. It was billed as replacement for the EMD SW1500.

The MP15DC’s standard Blomberg B trucks were capable of transition and road speeds up to 60 mph (97 km/h), allowing use on road freights. Soon there was a demand for a model with an advanced AC drive system. The MP15AC replaced the MP15DC’s DC generator with an alternator producing AC power which is converted to DC for the traction motors with a silicon rectifier. The MP15AC is 1.5 ft (457 mm) longer than an MP15DC, the extra space being needed for the rectifier equipment. The alternator-rectifier combination is more reliable than a generator, and this equipment became the standard for new diesel-electric locomotive designs.

The MP15AC is easily distinguished from the DC models. Instead of the front-mounted radiator intake and belt-driven fan used on all previous EMD switchers, these have intakes on the lower forward nose sides and electric fans. Side intakes allowed the unit to take in cooler air, and the electric fans improved a serious reliability issue found in its earlier DC sisters.

In the early 1970s railroads were starting to convert to AC power, the six largest buyers, Milwaukee (64), Southern Pacific (58), Seaboard Coast Line Railroad (45), Nacionales de México (25), Long Island (23), and Louisville & Nashville (10), were all buying AC road locomotives. 36 more units were sold to 8 other customers.

MP15AC LOCOMOTIVE FEATURES:

  • Full cab interior
  • Wire grab irons
  • Coupler cut levers
  • See-through cab windows
  • Flexible rubber trainline hose
  • Flexible rubber MU hoses
  • Lift rings
  • Windshield wipers
  • Blomberg-B trucks
  • Sander lines
  • Directional constant lighting
  • Walkway Tread
  • Operating ditch lights (if equipped)
  • Operating ground lights
  • Fine-scale Celcon handrails for scale appearance
  • Headlight brightness remains constant
  • Separately applied photo-etched metal and injection molded detail parts
  • Detailed fuel tank with fuel fillers, fuel gauges, breather pipes
  • DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector
  • Accurately-painted and –printed paint schemes
  • McHenry® scale knuckle couplers - Kadee® compatible
  • Fully-assembled and ready-to-run
  • Scaled from prototype resources including drawings, field measurements, photographs, and more
  • Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
  • All-wheel drive with precision gears for smooth & quiet operation
  • All-wheel electrical pickup provides reliable current flow
  • Wheels with RP25 contours operate on all popular brands of track
  • Heavy die-cast frame for greater traction and more pulling power
  • Packaging securely holds model for safe storage
  • Replacement parts available
  • Minimum radius: 18”

SOO FEATURES:

  • Ground lights
  • Cab beacon (effect in DCC)
  • Leslie 3-chime cab-mounted horn
  • Small fuel tank
  • Ratchet brake

SOUND-EQUIPPED MODELS ALSO FEATURE

  • Onboard DCC decoder with SoundTraxx Tsunami2 sound
  • Dual cube speakers for optimal sound quality
  • Sound units operate in both DC and DCC
  • Full DCC functions available when operated in DCC mode
  • Engine, horn, and bell sounds work in DC
  • All functions NMRA compatible in DCC mode
  • Precision slow speed control
  • Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
  • Many functions can be altered via Configuration Value (CV) changes
  • CV chart included in the box

Product Specifications

Axles 4
Coupler Style McHenry Scale Knuckle
DCC Ready/21-Pin NEM
Era 1971-1990, 1991-2010, 2010-Present Day
Minimum Radius 18" (457 mm)
Prototype Manufacturer EMD
Reporting Mark SOO
Scale HO
Sound Ready
Sub Brand GENESIS
