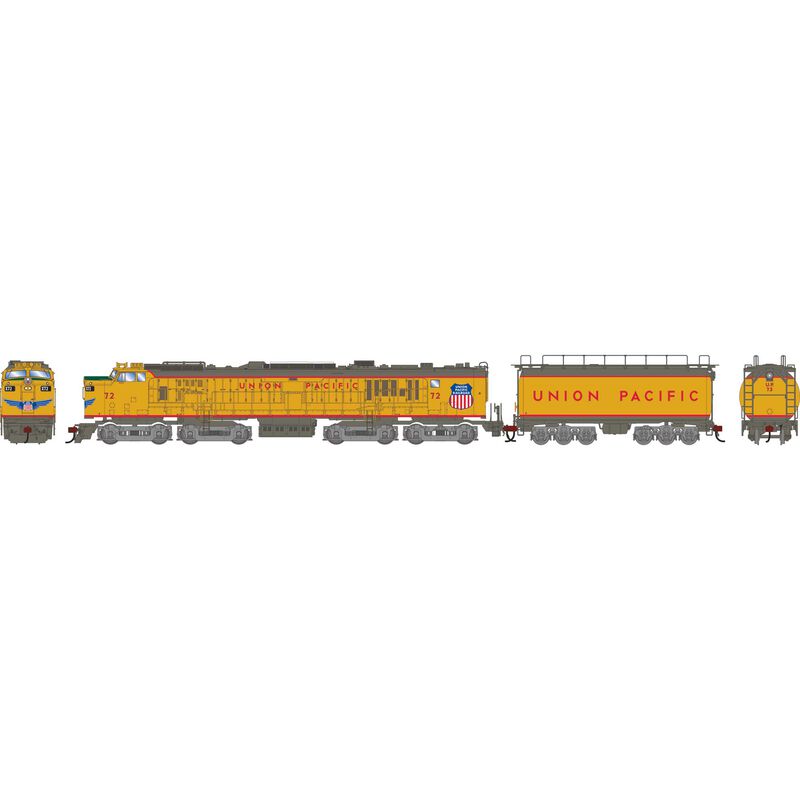

HO Gas Turbine with Tender, UP #72

Item No. ATHG41414
Discontinued
Brand Logo
3.7 out of 5 Customer Rating

HO Gas Turbine with Tender, UP #72

Item No. ATHG41414
Selected Store

Product Details

ROAD NUMBER SPECIFIC FEATURES:

#64
  • Short air intakes
  • no “Union Pacific” on nose
  • smaller tender lettering
  • aluminum trucks and fuel tender.
#67
  • Raised air intakes
  • “Union Pacific” on nose
  • aluminum trucks and fuel tender.#70
#70
  • Short air intakes
  • “Union Pacific” on nose
  • aluminum trucks and fuel tender.#72
#72
  • Short air intakes
  • no “Union Pacific” on nose
  • aluminum trucks and fuel tender.

MODEL FEATURES:

  • Fully assembled and ready for your layout or display
  • Sound versions feature Soundtraxx Tsunami2 sound with 2 speakers installed
  • Razor sharp painting and printing
  • Minimum radius: 18”

SOUND EQUPPED MODELS ALSO FEATURE

  • Onnboard Econami sound decoder by Soundtraxx
  • Sound units operate in both DC and DCC
  • Engine startup sound sequence
  • All functions NMRA compatible in DCC mode
  • Dynamic brake sound or Non-Dynamic Straight to idle on F4
  • Some functions are limited in DC
  • Extra prime mover and horn sounds exclusive to Athearn version
  • Slow speed control
  • Multiple bell sound files user configurable via Configuration Value (CV)
  • CV chart included in the box
  • Sound units operate in both DC and DCC
  • Full DCC functions available when operated in DCC mode
  • Engine, horn, and bell sounds work in DC
  • All functions NMRA compatible in DCC mode
  • Excellent Slow speed control
  • CV chart included in the box
  • Current Keeper ready with on board expansion plug
  • Operating lighting functions with F5 and/or F6
  • Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
  • Many functions can be altered via CV changes

PROTOTYPE AND BACKGROUND INFO:

After World War II, GE began work on a locomotive using a gas turbine power plant specifically designed for locomotive usage. The gas turbine had an advantage in that it could burn Bunker “C” fuel oil. Bunker “C” is a thick, low-grade oil that is a left-over when crude oil is refined into higher quality products like gasoline and diesel fuel. Being a residual of the refining process, it was both very cheap and widely available. GE’s locomotive gas turbine was about 20 feet long and created 4,500 horsepower, three times as much as a contemporary diesel.

GE’s test-bed and demonstrator gas turbine locomotive was completed in November 1948. Numbered as UP 50, it spent twenty-one months testing on the UP, covering 105,732 miles of operation and moving 349 million gross ton-miles of freight. UP’s first gas-turbine, numbered 51, was received at the Omaha shops on January 28, 1952. It had a full car body and a single cab. It carried 7,200 gallons of fuel oil and 1,000 gallons of diesel fuel. In addition to the gas turbine, there was also a 250 horsepower diesel engine. The diesel was used to move the locomotive around yards, power the auxiliaries, and crank the turbine. The locomotive weighed 551,720 pounds and was just over 83 feet long and stood 15 feet six inches tall. It rode on two sets of span-bolster AAR Type B trucks with a wheel arraignment of B+B-B+B. The gear ratio was 74:18 that gave a maximum speed of 65 miles per hour and a starting tractive effort of 137,930 pounds. Like contemporary diesels, the gas turbines were equipped with dynamic brakes.

The so-nicknamed “Veranda” turbines, with their outside walkways, were delivered in 1954. These units had their air intakes moved to the roof, and were equipped with 22,000 gallon fuel tenders (made from retired 9000 class steamers) starting in 1956. Beginning in 1958, experiments were conducted with running the turbines in multiple with diesels . The experiments proved to be successful and all of the turbines were modified to operate in MU with diesels. Retirement of the units began in 1963 and all were out of service by 1964, their truck assemblies finding new homes under GE U50 diesels.

The Athearn Genesis Veranda turbines are equipped with many additional lighting features over previous runs. Separately-controlled MARS light, emergency stop “big hole” light, class lights, number boards, and backup light are all equipped. Combined with the industry’s most accurate Union Pacific colors, and the advanced capabilities of the Soundtraxx Tsunami2 Gas Turbine sound decoder, these impressive units will be at home on any late transition era UP roster.

Product Specifications

Axles 8
DCC DCC Ready 21-Pin Harness
Era 1941-1970
Prototype Manufacturer Electro Motive Division
Reporting Mark UP
Scale N
Sound Ready
Sub Brand GENESIS
