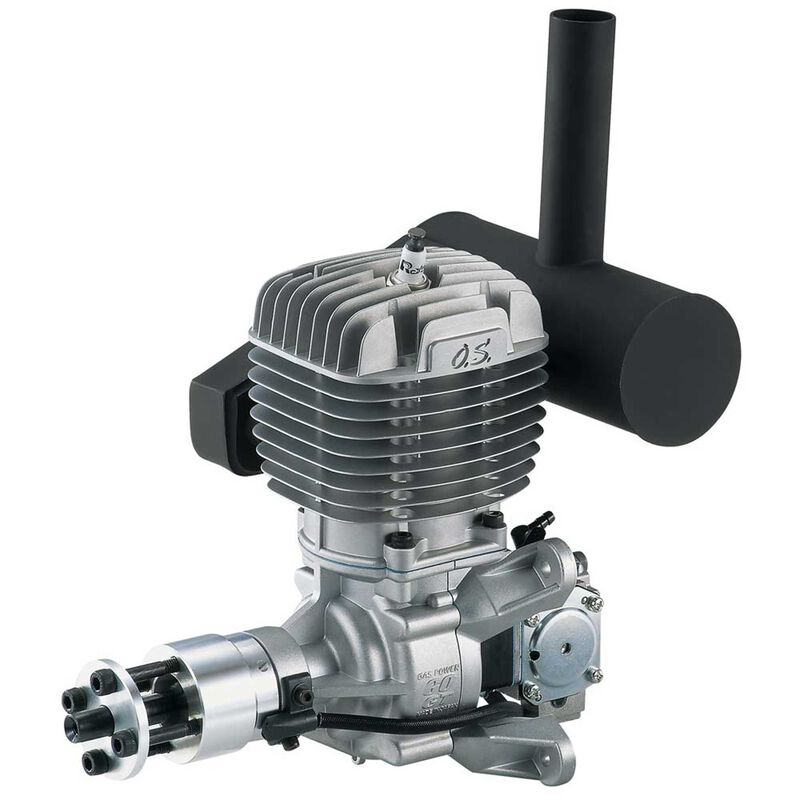

GT60 60cc Gas Airplane Engine with Muffler

Item No. OSMG1561
GT60 60cc Gas Airplane Engine with Muffler
GT60 60cc Gas Airplane Engine with Muffler
GT60 60cc Gas Airplane Engine with Muffler
Out of Stock
Brand Logo
5 out of 5 Customer Rating

GT60 60cc Gas Airplane Engine with Muffler

Item No. OSMG1561
$942.85
RC Club points earned on this item shown at checkout.
This item is currently not available
Selected Store
The link to GT60 60cc Gas Airplane Engine with Muffler has been copied

Product Details

Quick Links
icon-pdf-download Manuals & Support

ORE POWER for 50 cc class aircraft!

The GT60 is everything 50 cc fliers want in a gasoline engine – durable, efficient, easy to operate and high performance. A liner-less cylinder makes the engine light, makes it cool faster and gives better exhaust-scavenging characteristics. Plus, a E-6020 muffler reduces engine noise and directs emissions away from your plane's fuselage.


O.S. Two Year Limited Warranty
  • Quick-starting IG-02 electric ignition system uses 4-6 cell NiCds/NiMHs or 2-cell LiPos.
  • Rear-mounted Walbro® carburetor is custom-designed for the GT60.
  • Connecting rod features needle roller bearings at both ends.
  • Pitts-style E-6020 muffler.
  • Angled spark plug allows easy installation in tight spaces.
  • Recommended prop sizes: 22x8, 22x10, 23x8, 24x8, 24x10.

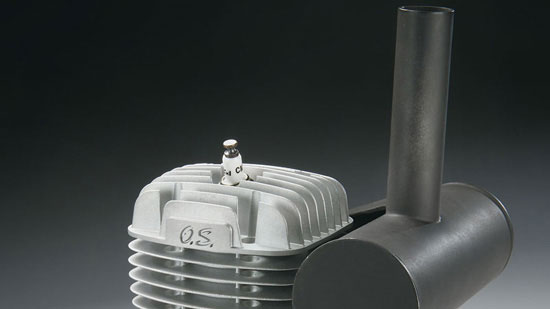

O.S. GT60 Gas w/Muffler - muffler
Our pitts-style E-6020 muffler reduces engine noise and increases power while directing harmful heat and exhaust away from your fuselage.

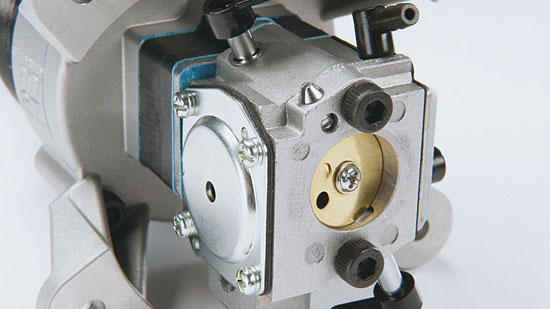

O.S. GT60 Gas w/Muffler - rear-mounted carb
Pilots prefer a rear-mounted carb – and O.S. designers listened. The carb is custom-designed by Walbro specifically for the GT60.

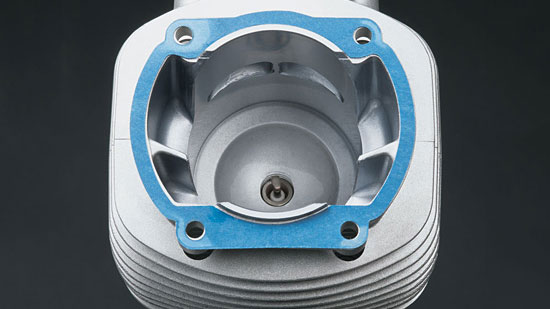

O.S. GT60 Gas w/Muffler - liner-less cylinder
The GT60's liner-less cylinder head lowers weight, improves cooling, and contributes to increased scavenging efficiency.

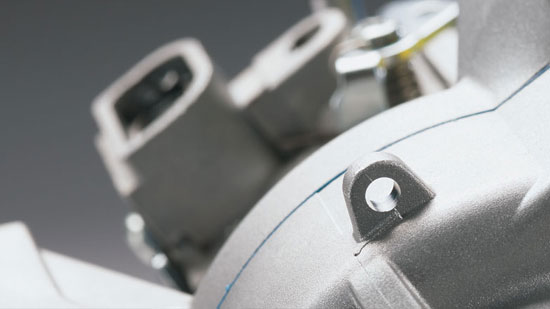

O.S. GT60 Gas w/Muffler - choke rod guide
A choke rod guide has been integrated into the crankcase for effortless set-up.

Product Specifications

Cylinder Type Linerless cylinder w/integrated head
Engine (Only) Weight 49.38 oz (1400 g)
Muffler Type Pitts
Bore 1.73 in (44.0mm)
Power Type Gas
Plug Type CM6 Spark Plug
Stroke 1.55 in (39.4mm)
Ignition Weight 3.7 oz (105 g)
Muffler Weight 6.3 oz (178 g)
Displacement 3.66 cu in (59.91 cc)
Oil Type & Content 2-cycle oil at 30:1 mix ratio for break-in, 50:1 after break-in
Product Length 6.5 in (166.4mm) from backplate to drive hub
Cylinders Single
Product Width 3.8 in (97.6mm)
Total Weight 3.71 lbs (1683g)
Product Height 6.9 in (175mm)
Prop Range 22 x 10 - 24 x 10
RPM Range 1,600 - 8,000 rpm
