Giant Zero A6M 50-60cc Gas ARF, 86"

Item No. TOPA0712
Discontinued
Brand Logo
3.1 out of 5 Customer Rating

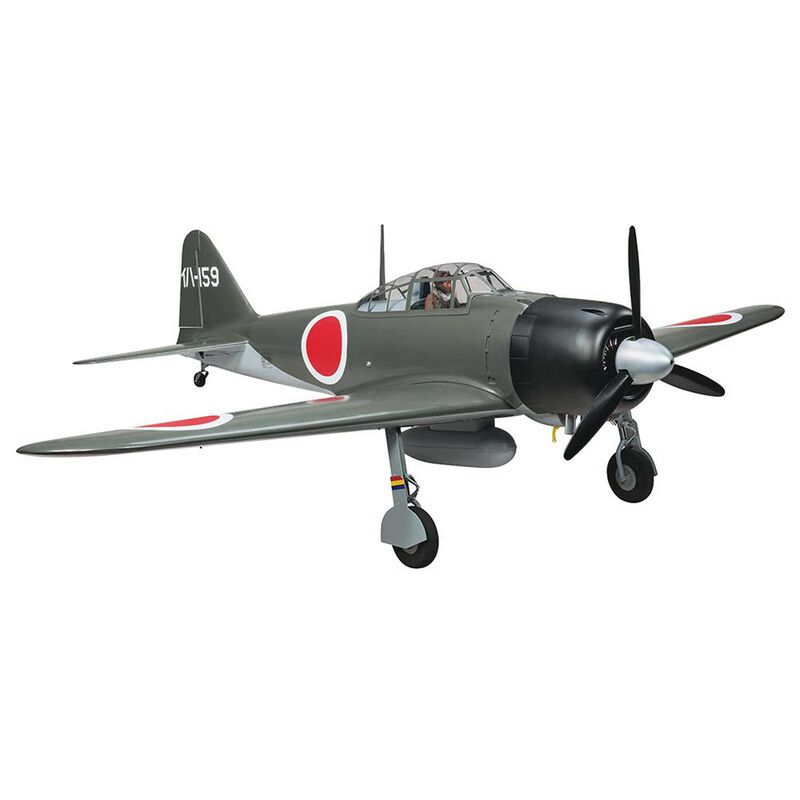

Giant Zero A6M 50-60cc Gas ARF, 86"

Item No. TOPA0712
This Item is No Longer Available
Selected Store

Product Details

Overview

At its introduction in 1940, the Zero was the most devastatingly effective aircraft in production. Its long range and incredible performance made it virtually untouchable. This Top Flite model is a tribute to those legendary aircraft, designed to be scale in appearance and performance. A thick airfoil, large wing and wide stance landing gear deliver ease of flight and good maneuverability on the ground. Make no mistake, this Zero is no trainer. It's a sleek bird with maneuverability worthy of its legendary namesake.

Features

  • Construction: Balsa and plywood, built-up and sheeted airframe components, prehinged control surfaces
  • Covering: Top Flite MonoKote
  • Wings: Balsa and ply
  • Cowl: Painted fiberglass with hidden mounting screws and replica radial engine with pushrod tubes and spark plug wires
  • Cockpit: Detailed instrument panel with recessed gauges
  • Tail Cone: Molded fiberglass
  • Spinner: Two-blade aluminum spinner
  • Practice flying this aircraft in the RealFlight® simulator!
Needed to Complete
  • Radio: 7-channel minimum (8 channel or greater recommended)
  • Servos: 8-12 servos at least 85 oz-in of torque
  • 20" (508mm) Heavy Duty Servo Extensions: 2 for ailerons, 1 for optional drop tank
  • 16" (406mm) Heavy Duty Servo Extensions: 6, two for flaps, one each for throttle, choke, ignition switch and air valve
  • 8" (203mm) Pro Series Heavy Duty Servo Extensions: 3
  • Heavy Duty Switch Harnesses: Two
  • Charge Receptacles: Two
  • Receiver Battery: 3200mAh 4.8V NiCD
  • Engine: 3.0-3.6 cu in 50-60cc gasoline
  • Retracts: Robart Pneumatic or electric
  • Building and field equipment
What's in the box?
  • (1) ARF Giant Scale Gold Edition Zero, Decals,24 oz Fuel Tank, Spinner, Radial Engine Detail, Cowl, Wheels, and Cockpit Interior
  • (1) User Manual

Specifications

  • Wingspan: 86" (2185mm)
  • Wing Area: 1276 in² (82.3 dm²)
  • Weight: 25.5-27.5 lb (11.5-12.4 kg)
  • Wing Loading: 46-50 oz/ft² (140-153 g/dm²)
  • Length: 70.5" (1790mm)
  • CG (Center of Gravity): 6.25" (158mm) back from the leading edge of the wing measured at the fuselage
  • Control Throws: Low Rate High Rate
  • Elevator up/down: 5/8" (16mm) 12° 7/8" (22mm) 16°
  • Rudder right/left: 1-1/2" (38mm) 17° 2" (51mm) 24°
  • Ailerons up/down: 5/8" (16mm) 10° 7/8" (22mm) 14°
  • Flaps: half rate 1-3/4" (44m) 24°   full rate 2-1/2" (64mm) 36°

Product Specifications

Specs

Power Type Gas
Flaps Yes
Completion Level Almost Ready-To-Fly
Product Length 70.5 in (1790mm)
Wingspan 86 in (2185mm)
Material Balsa
