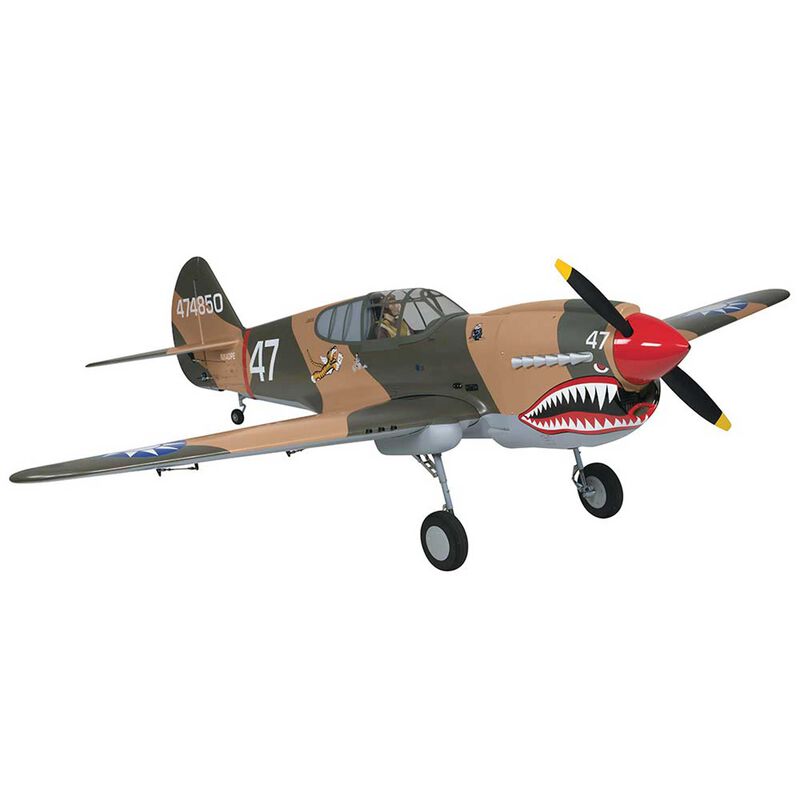

Giant P-40 Warhawk Scale GP ARF 2.6-3.3, 86"

Item No. TOPA0705
This Item is No Longer Available
Selected Store

Product Details

Quick Links
icon-pdf-download Manuals & Support

Overview

Made famous by Colonel Claire Chennault's "Flying Tigers" squadron at the onset of World War II, the P-40 Warhawk had one of the most impressive kill-to-loss ratios of any Allied fighter plane. Equally impressive is Top Flite's IMAA-legal, giant-scale replica of the P-40, which utilizes Gold Edition engineering to capture the exciting details of this revered warbird in a great-flying ARF!

Features

  • Construction: Plywood and built-up balsa sheeting
  • Wings: One-piece with wing joiner
  • Covering: Top Flite MonoKote
  • Cowl: Painted fiberglass
  • Landing Gear: Heavy duty fixed prebent wire
  • Wheels: Foam, two main and one tailwheel
  • Flap Control: Dual servo
  • Aileron Control: Dual servo
  • Cockpit: Plastic kit molded in white with instrument panel, left and right control panels, seat, floor and control stick
  • Radial Engine Replica: Molded plastic
  • Engine Mount: Plywood firewall
  • Stabilizer: Aluminum tubes automatically align stab halves and reduce workshop time
  • Building Time: Ready to fly in 15-20 hours
  • Spinner Hub: Two-piece aluminum
  • Hardware: Full set, IMAA legal
Needed to Complete
  • Engine: 2.6 - 3.3 cu in (43 - 55cc) gasoline or glow, (the DLE 55 is recommended. The manual provides specific instructions for the mounting of this engine. Modifcations may be needed if mounting other engines.) *
  • Muffler: To match selected engine, J'TEC makes a muffler (JTCG1040) specifically for use with this airplane and the DLE 55 engine
  • Radio: At least 5-channel, 6-channel needed if installing retractable landing gear
  • Servos: Nine, all control surfaces require high-torque servos, servos with 40 oz-in of torque can be used for throttle, choke and air valve
  • Heavy Duty 24" (310mm) Servo Extensions: Two for ailerons
  • Heavy Duty 12" (305mm) Servo Extensions: Five, two for flaps, two for elevator, one for rudder
  • Y-Harnesses: One each for aileron, flaps and elevator
  • Receiver Battery: At least 1500mAh
  • Heavy Duty Switch Harness: Two
  • Charge Receptacle: Two
  • Servo Arms: Two 1", one 2"
  • Building and Field Equipment
What's in the box?
  • Pre-built and covered wings, fuselage and tail assemblies, decals, landing gear, wheels, hardware, spinner hub, hardware package fuel tank, replica radial engine, cockpit kit and photo-illustrated instructions

Specifications

  • Wingspan: 86" (2,185mm)
  • Wing Area: 1,262in² (81.4dm²)
  • Weight: 23-24lb (10.43-10.88kg)
  • Wing Loading: 42-44oz/ft² (128-134g/dm²)
  • Length: 72" (1,830mm)
  • Airfoil: Semi-symmetrical
  • Center of Gravity (CG): 5.5" (140mm) back from the leading edge of the top of the wing on both sides of the fuselage
  • Control Throws: Low Rate   /   High Rate
  • Elevator Up & Down: 3/4" (19mm) 10° 1" (25mm) 13°
  • Rudder Right to Left: 1" (25mm) 9° 1-7/8" (48mm) 18°
  • Ailerons Up & Down: 3/4" (19mm) 13° 1" (25mm) 18°
  • Flaps: 2-1/2" (64mm) 36°

* If modeler is using the DL-55cc engine, the stock muffler will not fit in the cowling and the J'TEC Pitts Wraparound Muffler (JTCG1035) must be used for a clean installation.

Product Specifications

Power Type Gas
Wingspan 86 in (2,185mm)
Completion Level Almost Ready-To-Fly
Flaps Yes
Material Balsa
Product Length 72 in (1,830mm)
