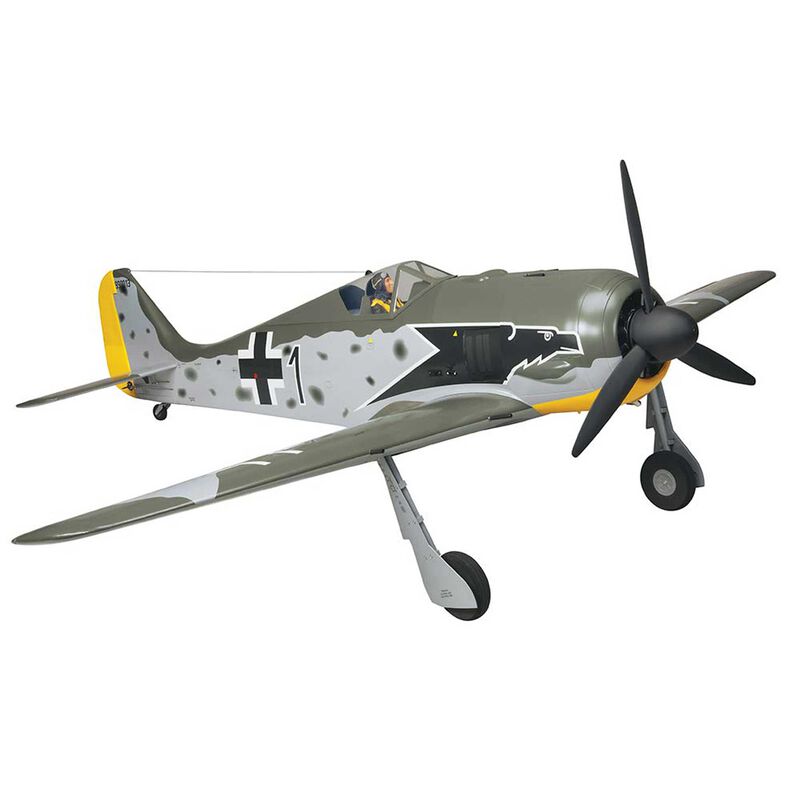

Giant Focke-Wulf Fw 190 Gas ARF 50-55cc, 85"

Item No. TOPA0706
Giant Focke-Wulf Fw 190 Gas ARF 50-55cc, 85"
Giant Focke-Wulf Fw 190 Gas ARF 50-55cc, 85"
Giant Focke-Wulf Fw 190 Gas ARF 50-55cc, 85"
Discontinued
Brand Logo
3.4 out of 5 Customer Rating

Giant Focke-Wulf Fw 190 Gas ARF 50-55cc, 85"

Item No. TOPA0706
This Item is No Longer Available
Selected Store

Product Details

Quick Links
icon-pdf-download Manuals & Support

Overview

Few fighter planes have ever been as agile as the Focke-Wulf Fw 190. Along with the Messerschmitt Bf 109, the Fw 190 formed the foundation of Luftwaffe air defense in World War II. Early prototypes proved the Focke-Wulf could hold its own against Allied aircraft like the P-47 Thunderbolt and the Spitfire. The Fw 190's blistering performance and multi-role versatility (including high-altitude interceptor and night fighter) made it one of the most important fighters of its time. Top Flite reproduces this Luftwaffe legend in a Giant Scale ARF that's packed with realism.

Features

  • Construction: Balsa and ply
  • Wings: Two-piece balsa and ply
  • Covering: Top Flite Monokote
  • Aileron Control: Dual servo
  • Cowl: Painted fiberglass with molded exhaust ports and plastic radial engine detail
  • Fuel Tank: Approximately 24.5oz (725ml)
  • Spinner: Aluminum 4" (102mm) diameter
  • Wheels: 5" (127mm) foam main wheels, 1.5" (38mm) tailwheel, fiberglass tailwheel cover
  • Practice flying this aircraft in the RealFlight® simulator!
Needed to Complete
  • Radio: 7-8 ch, 8-ch or more highly recommended for best performance
  • Servos;
    • Elevators: 2 (min. 50oz-in torque)
    • Rudder: 1 (min. 50oz-in torque)
    • Ailerons: 2 (min. 50oz-in torque)
    • Flaps: 2 (min. 50oz-in torque)
    • Tail Steering: 1 (min. 50oz-in torque)
    • Tail Gear Retract: 1 (min. 50oz-in torque)
    • Throttle: 1 (standard)
    • Retract: 1 (micro)
    • Optional Choke: 1 (standard)
  • Y-Harness: Four 6" for elevator, rudder/steering, alierons and flaps
  • 12" Extension: Two for flaps
  • 24" Extension: Two for ailerons
  • Heavy Duty Switch Harness: Two
  • Receiver Battery: 4.8V at least 2400mAh
  • Retracts: Pneumatic and electric main gear retracts and mechanical tail gear
  • Engine: 50 - 55cc gasoline only
  • Ignition Battery: At least 1600mAh NiMH
  • Propeller, Building and field equipment
What's in the box?
  • Prebuilt Wing, Fuselage and Tail Sections, Fuel Tank, Spinner, Decals Cannons, Antenna Mounts, Cockpit Kit, and Main and Tail Wheels
  • (1) User Manual

Specifications

  • Wingspan: 85" (2160mm)
  • Wing Area: 1198 sq in (77.3 sq dm)
  • Weight: 22 - 24 lbs (9980 - 10880 g)
  • Wing Loading: 42 - 46 oz/sq ft (128 - 140 g/sq dm)
  • Length: 73.25" (1860mm)
  • Airfoil: Semi-symmetrical
  • Center of Gravity: 5-1/2" (139mm) back from the leading edge of the wing at the fuselage sides
  • Control Throws: High Rate   /   Low Rate
  • Elevator Up/Down: 7/16" (11mm) 11° 5/16" (8mm) 8°
  • Rudder Right/Left: 2" (51mm) 27° 1-1/2" (38mm) 19°
  • Ailerons Up/Down: 7/8" (22mm) 18° 5/8" (16mm) 13°
  • Flaps: 2" (51mm) 35°

Product Specifications

Wingspan 85 in (2160mm)
Completion Level Almost Ready-To-Fly
Product Length 73.25 in (1860mm)
Material Balsa
Retracts Yes
Power Type Gas
Flaps Yes
