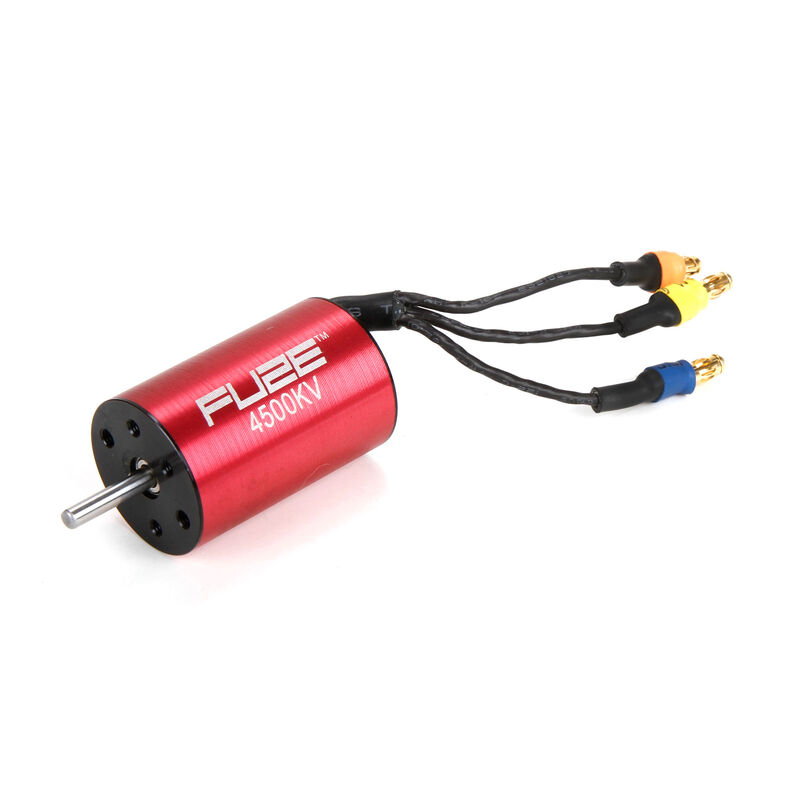

Fuze Mini Sensorless Brushless Motor, 4500Kv: 3.5mm Bullet

Item No. DYNS1600
Discontinued
Brand Logo
4.8 out of 5 Customer Rating

Fuze Mini Sensorless Brushless Motor, 4500Kv: 3.5mm Bullet

Item No. DYNS1600
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Large Diameter 1/8” output shaft for enhanced durability
  • Improved rotor and stator design for elevated power output and enhanced efficiency
  • Complete brushless package that comes pre-wired for easy installation with 3.5mm bullets
  • Ball bearing construction provides low drag and long life
  • Designed to work with most 1/14- to 1/18-scale sensorless brushless ESCs

Product Specifications

Resistance 0.045 Ohm
Shaft Diameter 0.125in (3.175mm) with flat
Connector Type 3.5mm Bullet
Bushing Or Bearing Bearing
Motor Design Inrunner
Voltage 7.2-11.1V
Idle Current (Io) 1.2A
RPM/Volt (Kv) 33,300 @ 7.4V / 4500Kv
Shaft Length 0.55 in (14.0mm)
Outer Diameter 0.944 in (24mm)
