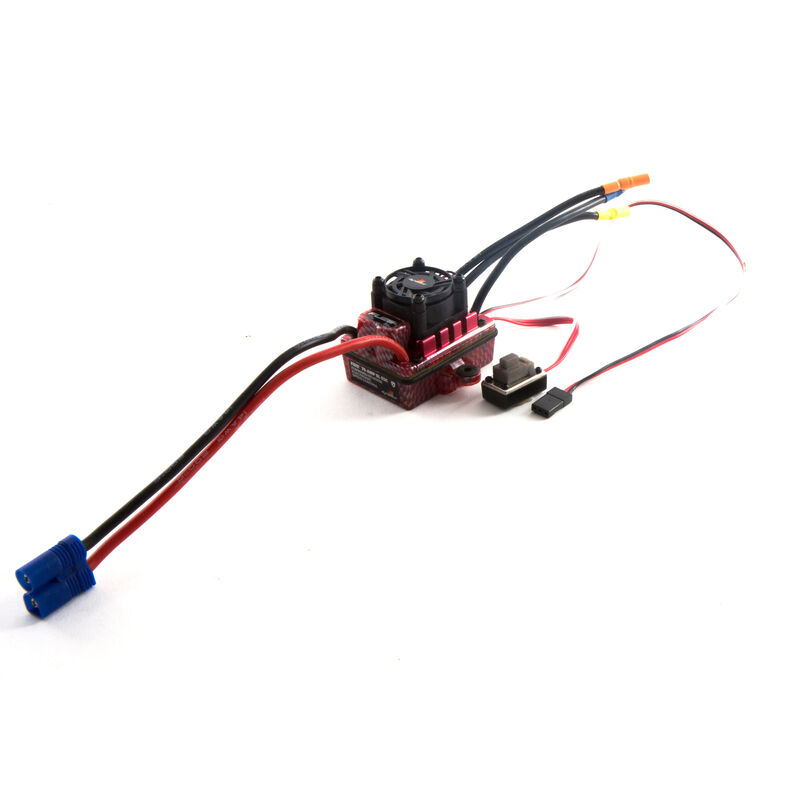

Fuze 70A Sensorless Brushless ESC Waterproof V2

Item No. DYNS2600
Discontinued
Brand Logo
5 out of 5 Customer Rating

Fuze 70A Sensorless Brushless ESC Waterproof V2

Item No. DYNS2600
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Easier than ever to toggle between battery chemistries
  • Easy to program via your transmitter or compact program card. No need to haul around a PC
  • Improved operation under heavy loads
  • Allows a hard mount, with servo tape and/or velcro
  • Waterproof

Overview

The ESC is available by itself and as a combo with a 6-pole brushless motor.

Product Specifications

Auto Cutoff Yes
Battery Input Lead 14AWG, 6 in
BEC Yes
BEC Continous Current 3A
BEC Type Switch-Mode
BEC Voltage 6V
Brakes Yes
Connector Type EC3
Forward Yes
Input Voltage 2-3S LiPo/LiFe, 4-9 cells NiMh/HiCd
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 390A
Maximum Continuous Current 70A
Motor Limit 2S LiPo - up to 6000KV . 3S LiPo - up to 4000KV
Motor Output Lead 16 AWG, 4 in
Motor Type Brushless
Overload Protection Yes
Product Height 1.46 in (37mm)
Product Length 1.89 in (48mm)
Product Weight 2.82 oz (80 g)
Product Width 2.2 in (56.1mm) with mounting tabs, 1.46 in (37mm) without mounting tabs
Programmable Yes
Resistance .0012 ohm
Reverse No
