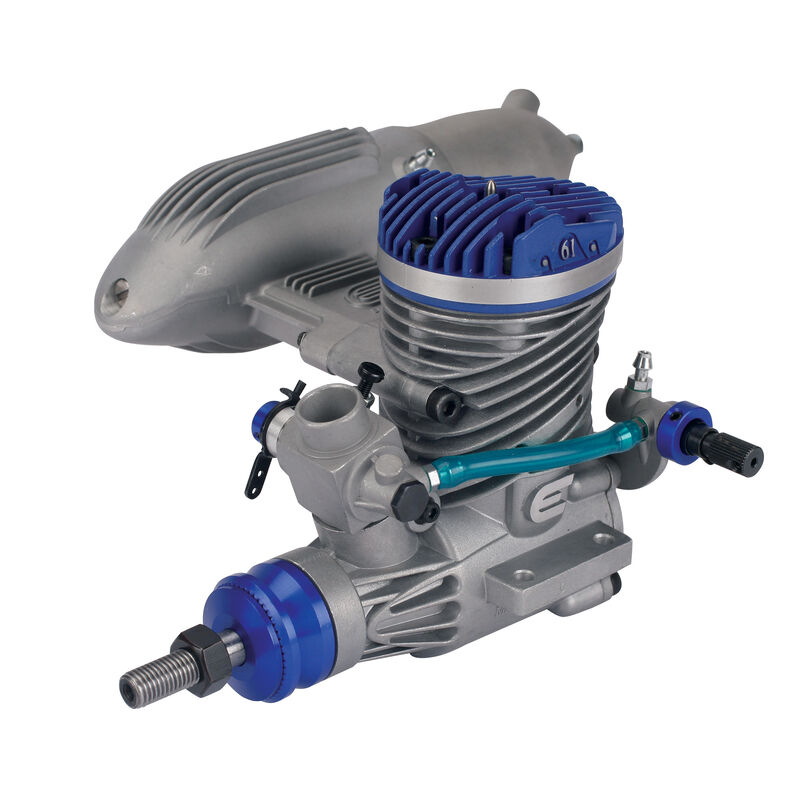

Evolution .61NX Glow Engine with Muffler

Item No. EVOE0611
Evolution .61NX Glow Engine with Muffler
Evolution .61NX Glow Engine with Muffler
Discontinued
Brand Logo
5 out of 5 Customer Rating

Evolution .61NX Glow Engine with Muffler

Item No. EVOE0611
This Item is No Longer Available
Selected Store

Product Details

Quick Links
icon-pdf-download Manuals & Support

Key Features

  • Redesigned cylinder head for even greater power
  • Same ease of use and reliability
  • True ABC piston and cylinder construction for more performance and longer engine life
  • Includes optional SetRight™ needle valves for easy starting and great performance
  • Rear needle valve provides safe, easy adjustments
  • Dual ball bearing-supported crankshaft extends engine life and improves reliability

Overview

The Evolution® .61NX will be replacing the popular .61NT engine. This redesigned engine incorporates a new combustion chamber design that increases the compression and power of the engine. Its improved combustion chamber design and higher compression ratio result in more power at the same weight as the original. Along with the internal engineering updates, the .61NX sports a sleek external case. With improved performance and looks, the .61NX will be a great option for modelers looking to power their .60-size airplanes.

Product Specifications

Bore .94 in (23.9 g)
Crankshaft Type Ball Bearing
Power Type Glow
Stroke .86 in (21.8 g)
Cylinder Type ABC
Engine (Only) Weight 20.32 oz
Muffler Type Cast
Crankshaft Threads 5/16 x 24
Muffler Weight 5.12 oz (145 g)
Cylinders Single
Total Weight 25.44 oz (721 g)
Benchmark Prop 12 x 6 @ 12,000 rpm
Displacement .61 cu. in. (10.0 cc)
Mounting Dimensions 100 x 52 x 102mm (H X W X L)
Prop Range 11 x 7–13 x 7
RPM Range 2,000 to 17,000
