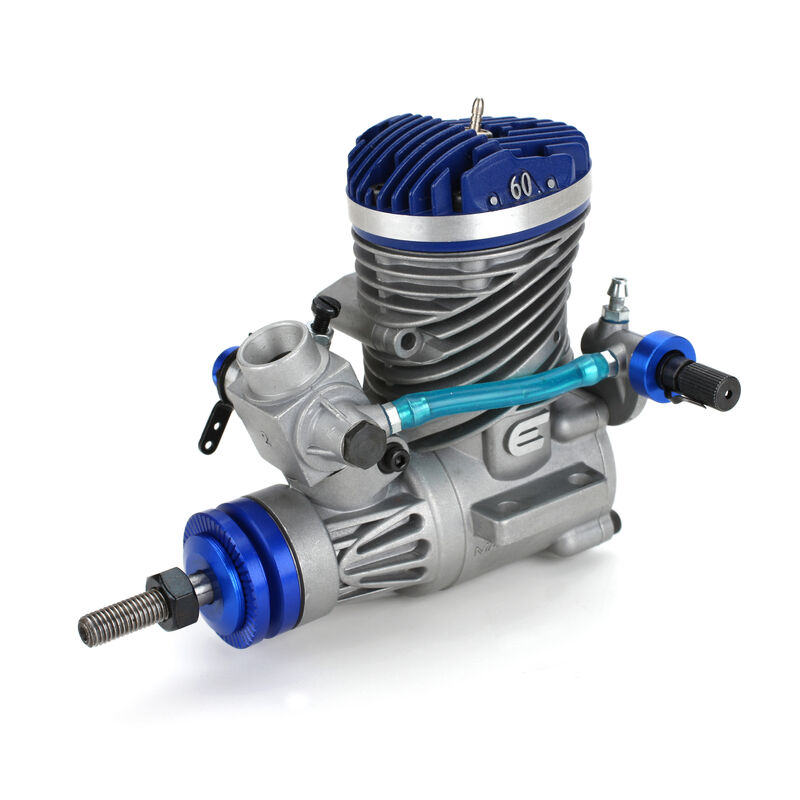

Evolution .60NX Engine with Muffler

Item No. EVOE0600
Discontinued
Brand Logo
3.2 out of 5 Customer Rating

Evolution .60NX Engine with Muffler

Item No. EVOE0600
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Smaller size and lighter weight than typical displacement .60 engines lead to a higher power-to-weight ratio.
  • Fits smaller airframes where .60-size power was not previously available
  • 7 ounces lighter than competitive .60-size engines
  • Designed to make use of aftermarket-tuned exhaust to enhance performance by increasing power

Overview

The Evolution® .60 is revolutionary for modelers demanding the most from their engines. This new engine provides the performance of a .60-size engine in the case size of a .40-size engine, allowing modelers to put more power into smaller configurations. The .60 will truly be a “hot rod” and will provide modelers with speed and performance, which have previously been unavailable in the .40- to .60-size sport market. For the modeler who doesn’t want to stop at the impressive speeds offered out of the box, this engine is designed to work with aftermarket pipe systems to provide the ultimate in model engine performance.

Product Specifications

Crankshaft Threads 1/4 x 28
Muffler Weight 3.2 oz (92 g)
Cylinders Single
Total Weight 17.13 oz (487 g)
Displacement .60 cu. in. (9.83 cc)
Cylinder Type ABC
Engine (Only) Weight 13.93 oz (395 g )
Muffler Type Cast
Prop Range 10 x 7 to 13 x 6
RPM Range 2000 to 17000
Bore .95 in (24mm)
Crankshaft Type Ball Bearing
Power Type Glow
Stroke .85 in (21.5mm)
