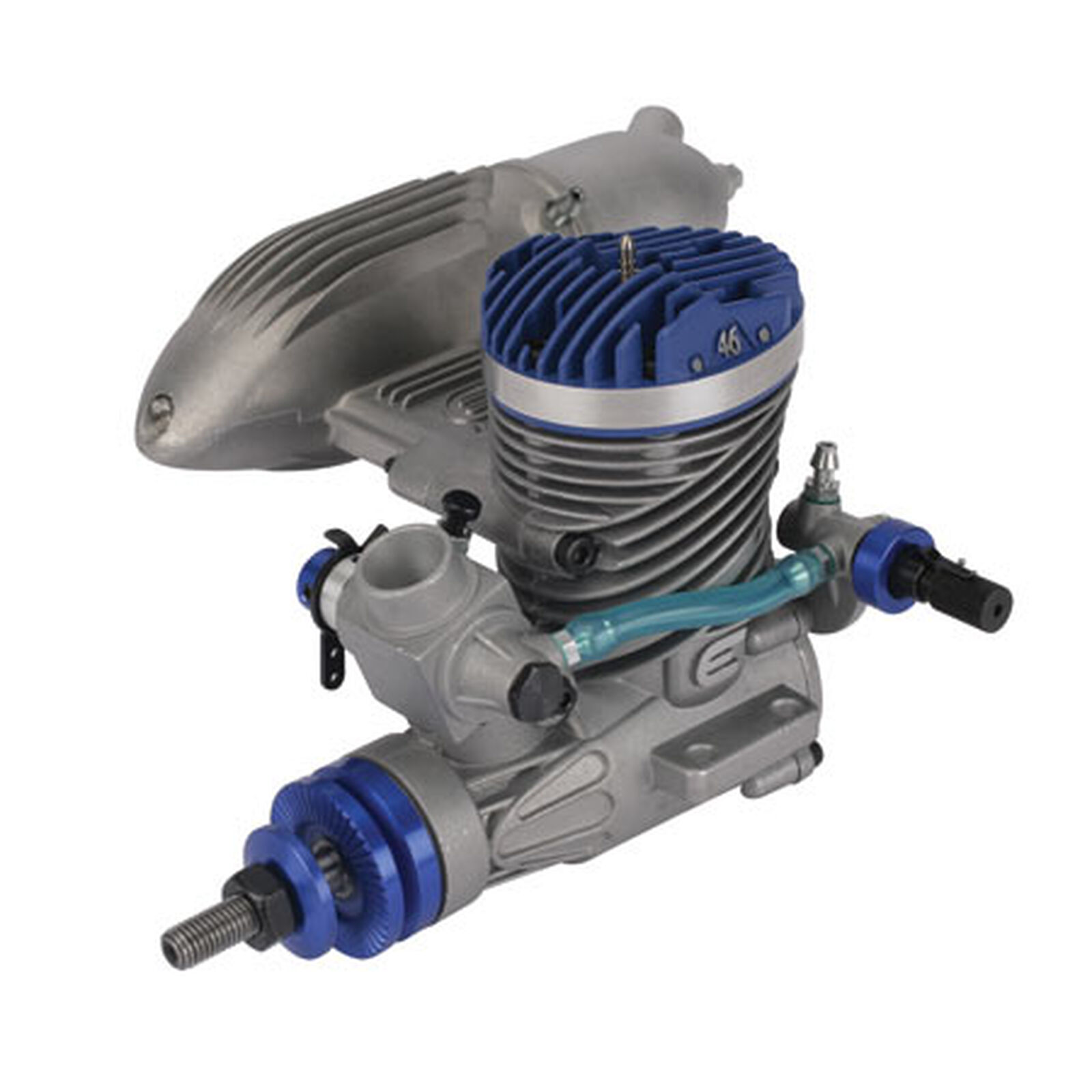

Evolution .46NX Glow Engine with Muffler

Item No. EVOE0461
Discontinued
Brand Logo
5 out of 5 Customer Rating

Evolution .46NX Glow Engine with Muffler

Item No. EVOE0461
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Redesigned cylinder head for even greater power
  • Same ease of use and reliability
  • True ABC piston and cylinder construction for more performance and longer engine life
  • Includes optional SetRight‚ĄĘ needle valves for easy starting and great performance
  • Rear needle valve provides safe, easy adjustments
  • Dual ball bearing-supported crankshaft extends engine life and improves reliability

Overview

The Evolution¬ģ .46NX will be replacing the popular .46NT engine. This¬†redesigned engine¬†incorporates a new combustion chamber design that increases the compression and power of the engine. Its improved combustion chamber design and higher compression ratio result in more power at the same weight as the original. Along with the internal engineering updates, the .46NX¬†sports a¬†sleek external case. With improved performance and looks, the .46NX will be a great option for modelers looking to power their .40- to .50-size airplanes.

Please note:New stock comes with a new one part muffler. If customer is using on Pawnee 40 or Cub 40 they will need EVO100601.

If using the 8cc one piece muffler (EVOG08601) on the 46NX, you will need to add a fuel nipple (EVO100114). Remove the screw off the muffler's side and install the nipple.

Product Specifications

Crankshaft Threads 1/4 x 28
Benchmark Prop 11x6 @ 12500 rpm
Displacement .46 cu. in. (7.50 cc)
Bore .86 in (21.8mm)
Crankshaft Type Ball Bearing
Power Type Glow
Stroke .80 in (20.3mm)
Cylinders Single
Total Weight 16.96 oz (482 g)
Cylinder Type ABC
Engine (Only) Weight 13.76 oz (390 g)
Muffler Type Cast
