Product Details

Key Features
  • Oversized Battery Compartment For Easy Battery Installation
  • Oversized Control Surfaces
  • Screw Together Assembly
  • Made Of Ultra-Lightweight EPO Foam
icon-box
In The Box
  • (1) Edge 540 PNP, 750mm containing the following parts:
  • Fuselage
  • Canopy
  • Main Wing
  • Landing Gear Set
  • Screws
  • (1) Product Manual
icon-how-to
Needed to Complete
  • 4-channel Radio System
  • 7.4V 1300mAh+ LiPo Battery
  • Compatible LiPo Charger

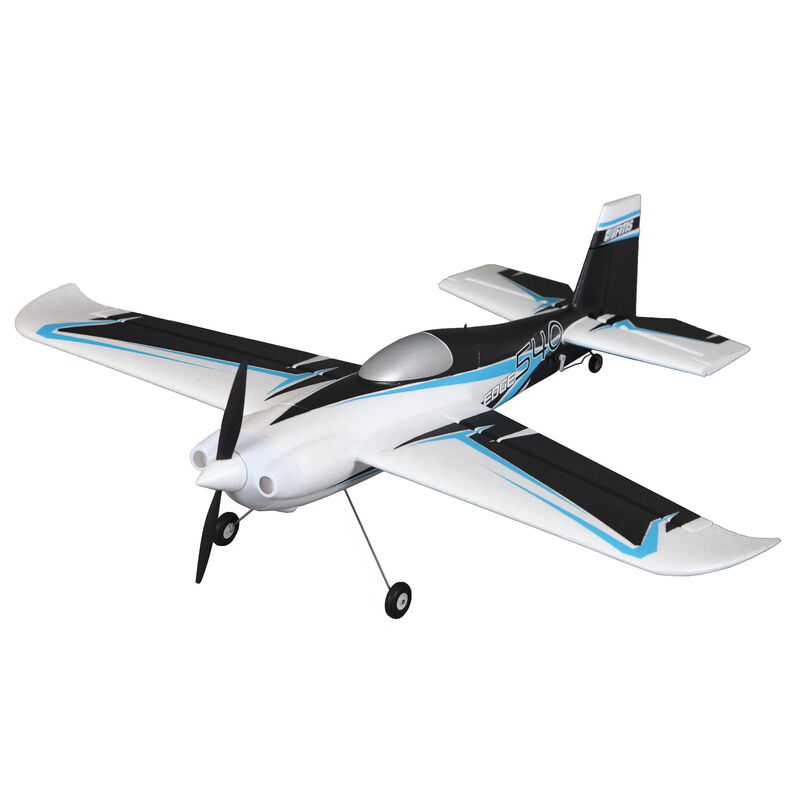

Edge 540 PNP, 750mm

Features

  • 2212-2500Kv Motor,
  • Predator 20A ESC
  • 5g Servos x 4
  • Oversized Battery Compartment For Easy Battery Installation
  • Oversized Control Surfaces
  • Screw Together Assembly
  • Made Of Ultra-Lightweight EPO Foam

Overview

FMS has miniaturized the ultra popular 1300mm Edge 540! Don't let the small wingspan mislead you, the FMS 750mm Edge 540 is as much a beast as its older brother! Courtesy of the large control surfaces and high power-to-weight ratio, even the most advanced aerobatic maneuvers can be performed with pinpoint precision. Thanks to the small wingspan and a takeoff weight of only 390g, the 750mm Edge 540 will fly just about anywhere!

No detail was overlooked in the design of this aircraft- a latch-type canopy will easily put up with even the most violent maneuvers; while an oversized battery compartment makes installing batteries a breeze. Adorned with an attractive blue-black trim scheme, the Edge 540 looks fantastic in the air!

Power comes from a 2212 2250Kv brushless motor with a Predator 20A ESC, giving the Edge 540 all the power you'll ever need. Want a fly-anywhere aerobatic machine? Look no further than the FMS 750mm Edge 540!

Video Overview



Product Specifications

Minimum Required Radio 4-channel
CG (Center of Gravity) 2.2-2.5" (55-65mm) back from leading edge of wing measured at the fuselage
Approximate Assembly Time Less than 1 Hour
Approximate Flight Time 5 minutes
Completion Level Plug-N-Play
Propeller Size 8.3 x 5, 2-blade
Recommended Motor Battery 7.4V 1300mAh 20C with XT30 connector
Power Type Electric
Trim Scheme Colors Black, white and blue
Wingspan 29.51" (750 mm)
Battery Sold Separately
Connector Type XT-30
Motor Size 2212-2250Kv
Product Length 27.62" (702 mm)
Product Weight 13.8 oz (390g)
Wing Loading 10.8 oz/sq ft. (33g/sq dm)
Landing Gear Fixed main LG and steerable tail wheel
Speed Control Included
Wing Area 1.27 sq ft. (11.8 (sq dm)
Charger Sold Separately
Receiver Sold Separately
