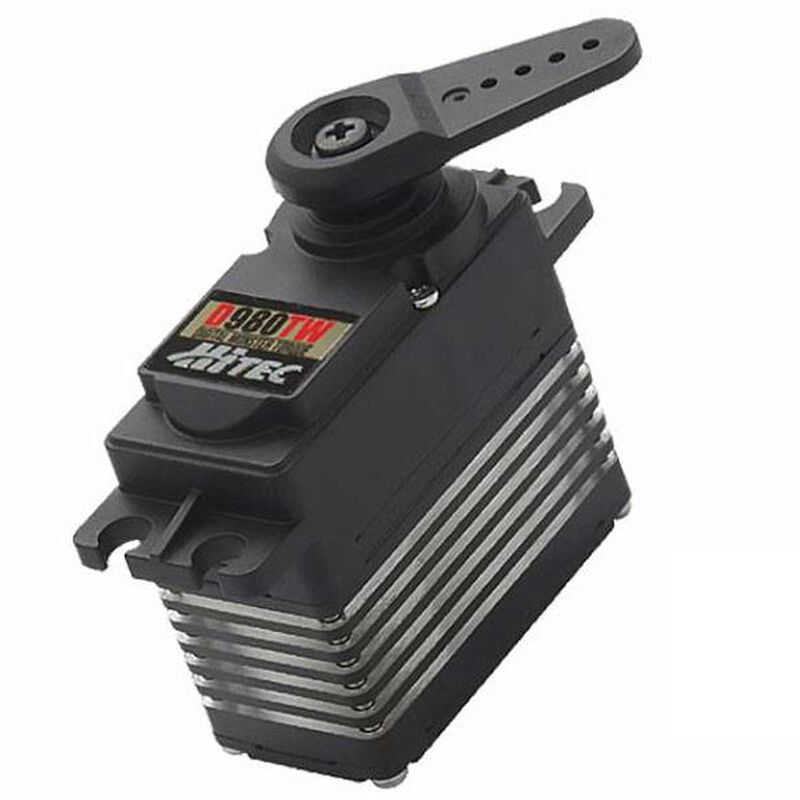

D980TW Giant Scale Digital Monster Torque Titanium Gear Servo

Item No. HRC36980
This Item is No Longer Available
Selected Store

Product Details

The titanium D-980TW is part of Hitec's D-Series servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Key Features
  • Speed: @4.8V .28sec/60' / @7.4V .17sec/60'
  • Torque: @4.8V 361oz/in / @7.4V 611oz/in
  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • Dust Resistant and Splash Proof Case
icon-box
In The Box
  • (1) D980TW Giant Scale Digital Monster Torque Titanium Gear Servo
D980TW Giant Scale Digital Monster Torque Titanium Gear Servo
Quick Links
icon-pdf-download Manuals & Support

Highlights of the D-Series Servos



Product Specifications

Programmable Yes
Servo Size Category Standard
Current Draw Stall 6,200 mA
Servo Operating Voltage 4.8 - 7.4V (HV)
Connector Type Universal
Maximum Servo Speed 0.28 sec/60 deg @ 4.8V, 0.21 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V
Product Length 1.72" (44 mm)
Application High Performance Aircraft, Cars, Boats
Product Weight 2.76oz (79.0g)
Spline Count 25 - Tooth
Water-Resistant No
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 20 AWG
Deadband 1µs
Input Voltage 4.8V ~ 6.0V ~ 7.4V
Product Height 1.57" (40 mm)
Servo Type Digital
Current Draw Idle 30 mA
Product Width 0.88" (22 mm)
Maximum Servo Torque 361oz/in @ 4.8V, 500oz/in @ 6.0V, 611oz/in @ 7.4V
