Discontinued

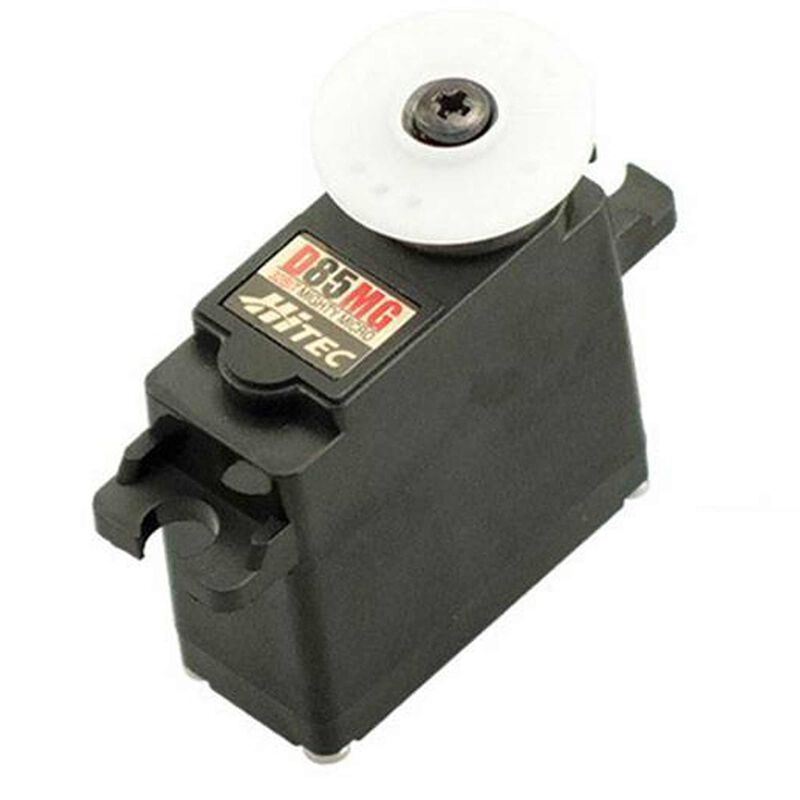

D-85MG Micro Digital Programmable Metal Gear Servo

HRC36085

Discontinued

D-85MG Micro Digital Programmable Metal Gear Servo

Name: D-85MG Micro Digital Programmable Metal Gear Servo
Brand: Hitec RCD Inc.
SKU: HRC36085
Price: 42.99 USD
Availability: Discontinued

HRC36085

This Item is No Longer Available

Product Details

Engineered with Hitec's state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

Key Features

Speed: @4.8V .17sec/60' / @6.0V .14sec/60'
Torque: @4.8V 50oz/in / @6.0V 60oz/in

In The Box

(1) D-85MG Micro Digital Programmable Metal Gear Servo

D-85MG Micro Digital Programmable Metal Gear Servo

Quick Links

Manuals & Support

Highlights of the D-Series Servos

Product Specifications

Application	50oz park flyers, 42-50oz sport planes, 2M/DLG sailplanes, 1:16 scale on-road, buggies & SC trucks, 1:16 scale power boats
Bearing	Top Ball Bearing
Bushing Or Bearing	Bearing
Connector Type	Universal
Current Draw Idle	3mA
Current Draw Stall	2,150mA
Deadband	2µs
Gear Type	Metal
Input Voltage	4.8V ~ 6.0V
Maximum Servo Speed	0.17 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V
Maximum Servo Torque	50oz/in @ 4.8V, 60oz/in @ 6.0V
Motor Type	Brushed
Product Height	1.18" (30 mm)
Product Length	1.14" (29 mm)
Product Weight	0.77oz (21.9g)
Product Width	0.51" (13 mm)
Programmable	Yes
Servo Operating Voltage	4.8 - 6.0V
Servo Size Category	Micro
Servo Type	Digital
Spline Count	24 Teeth
Water-Resistant	No
Wire Gauge	28 AWG
