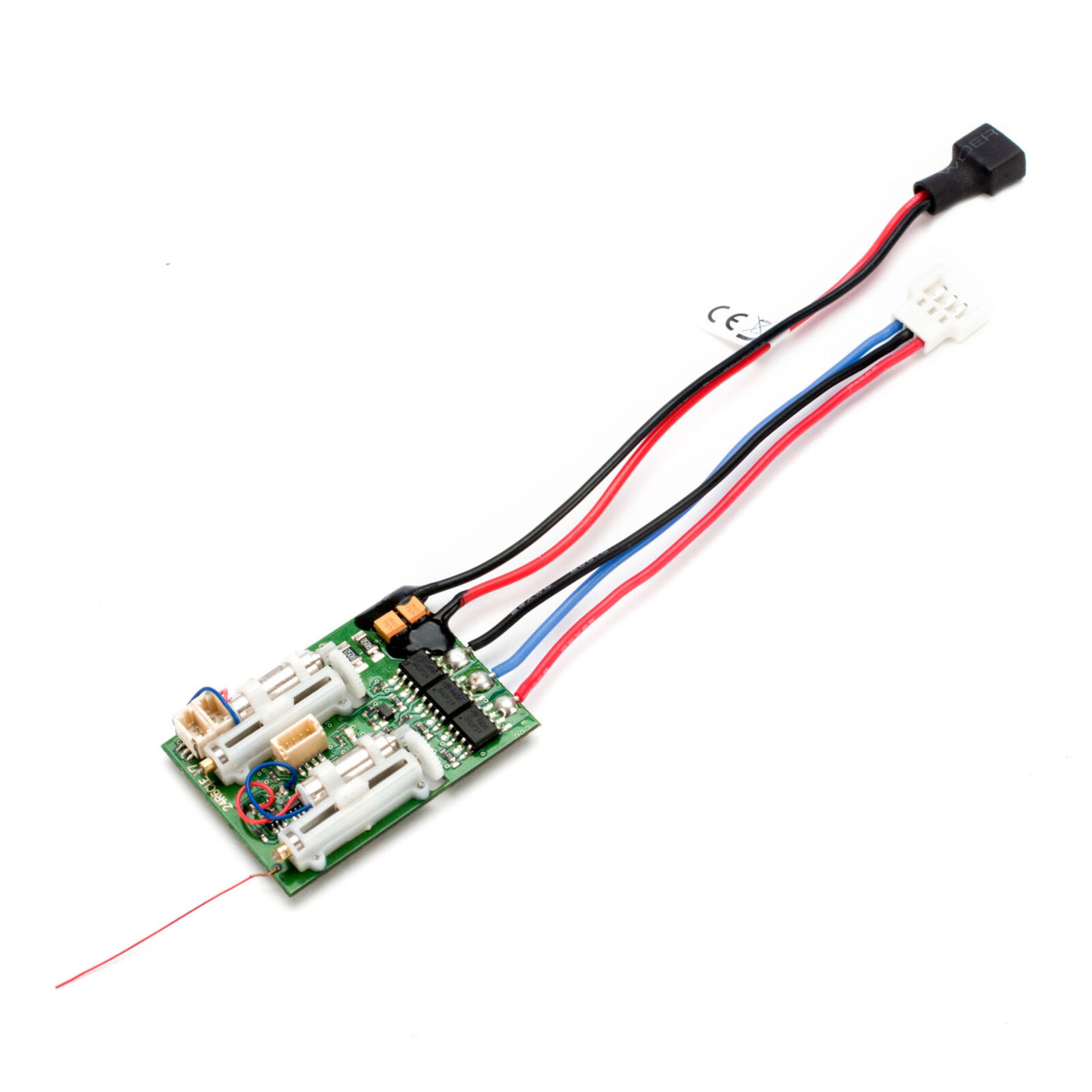

AR6410LBL DSMX 6-Ch Ultra Micro Receiver with Brushless ESC

• 6-channel ultra micro receiver
• Two integrated linear long-throw servos (elevator and rudder) plus two additional servo ports
• Integrated programmable brushless speed control
• Weighs just 7.8 grams
• Compatible with optional Spektrum™ ultra micro linear servos
• Smart Bind™ technology
• X-Port™ technology allows for future expansion

The Spektrum™ AR6410LBL is a 6-channel ultra micro receiver with two integrated linear long-throw servos, programmable brushless speed control and X-Port™ technology. The AR6410LBL receiver is designed for ultra micro and ultralight foamy aircraft.

Featuring DSMX® technology, the AR6410NBL receiver is compatible with all Spektrum™, JR®, E-flite® and ParkZone® 2.4GHz DSM2® and DSMX technology transmitters.

Applications:
The AR6410LBL is designed for ultra micro aircraft and is ideal for scratch-built ultra micro projects. It utilizes a two-cell LiPo battery and can be used with the integrated brushless speed controller to power a brushless motor up to 3.9-amps of continuous current. An integrated X-Port feature allows for future expansion. When X-Port technology is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available.

Servos:
Force: 2.8 oz (79 g)
Stroke: 9.1mm
Speed: 0.14 sec
Stall current: 80mA at 4.2V without load

Speed Controller:
Type: Integrated programmable brushless
Max continuous current: 4.9 amps
Overload protection current: 5A for 500ms
BEC continuous current: 1A
BEC overload protection current: 1A, 4.2V
Low-voltage cutoff: <6.3V motor pulsing, <6.1V motor cuts off and LED flashes
Over-current protection: 5A motor cuts off until throttle stick is pulled down to idle
Temperature protection: 120C motor cuts off
Programming features: See the “Programming the Brushless ESC” Section

Notice: Not compatible with the Spektrum DX6 park flyer transmitter.

Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2 or Spektrum products.

Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.

This product is not intended for use by children under 14 years of age without direct adult supervision.

.
