Ammo Inrunner Brushless Motor, 24-33-4875Kv

Item No. GPMG5170
Ammo Inrunner Brushless Motor, 24-33-4875Kv
Brand Logo
3.5 out of 5 Customer Rating

Ammo Inrunner Brushless Motor, 24-33-4875Kv

Item No. GPMG5170
$71.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
The link to Ammo Inrunner Brushless Motor, 24-33-4875Kv has been copied

Product Details

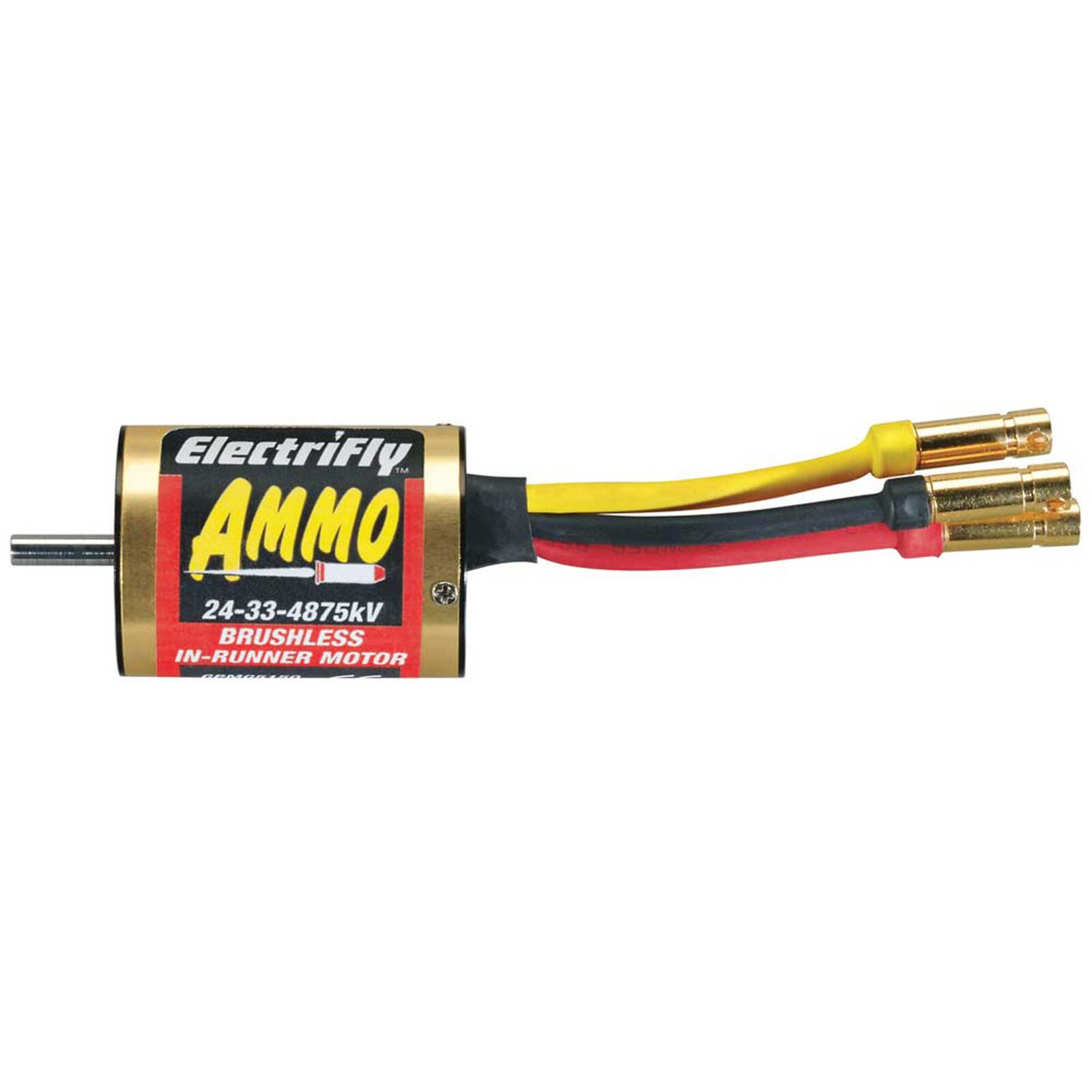

This is the Great Planes ElectriFly Ammo 24-33-4875kV Brushless In-Runner 2 Pole Electric Motor.
Key Features
  • Brushless, slotless Ammo In-Runner Motors offer an incredible power-to-weight advantage and almost twice the efficiency of Brushed motors
  • Ideal for direct or gear drive use
  • Up to 89% efficient and virtually maintenance-free; no brushes to wear out
  • Powered by "rare earth" Neodymium magnets for high torque and unmatched heat resistance
  • Pre-installed gold plated connectors for plug and play operation when used with compatible ElectriFly Silver Series Brushless speed controls
  • Double sealed bearings
  • Two year warranty
icon-box
In The Box
  • (1) ElectriFly Ammo 24-33-4875kV Brushless Electric Motor
  • (4) M3x5 machine screws
icon-how-to
Needed to Complete
  • (1) ESC
  • (1) Propeller, suggested sizes are 8x4E-10x7E
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Adjustable Timing No
Connector Type 3.5mm Bullet
Product Length 1.3" (33 mm)
Motor Type Brushless
Application Airplane
Number of Poles 2
Product Weight 2.4oz (67g)
Recommended Prop Range 8x4E-10x7E
Shaft Diameter 0.118" (3 mm)
Input Voltage 7.4-11.1V
RPM/Volt (Kv) 4875 rpm/V
Shaft Length 0.472" (12 mm)
Motor Design Inrunner
Outer Diameter 0.945" (24 mm)
