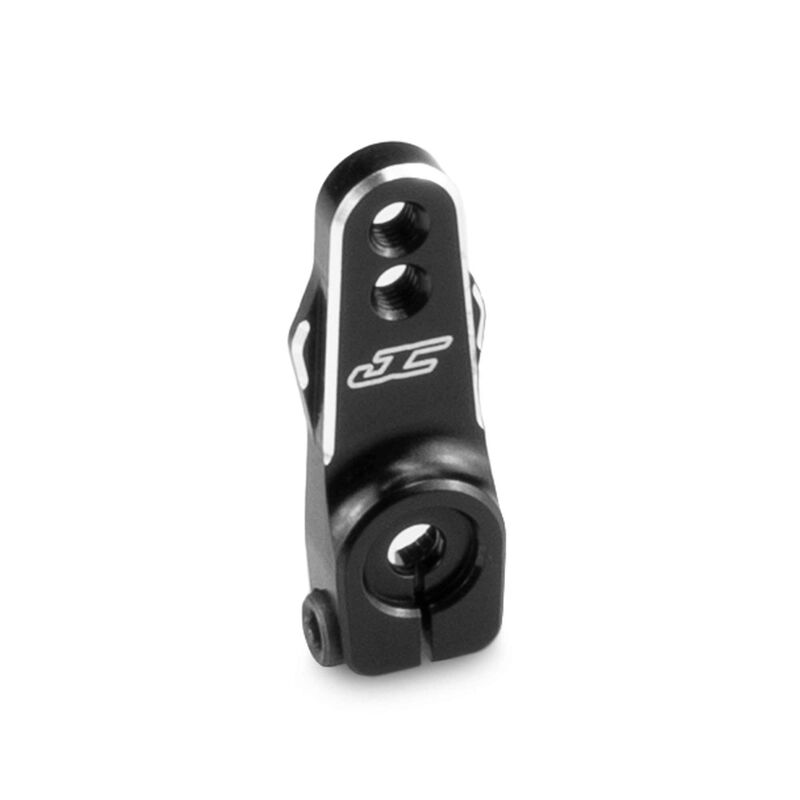

Aluminum Clamping Servo Horn, 20mm, 23T

Introduction

The horn transfers all the torque from the servo to the steering bell cranks and this piece needs to be created with precision and durability. The JConcepts 20mm servo horn created for both 23T and 25T count has all the geometry necessary as a vast assortment of vehicles. The clamping style is attractive for high-torque situations providing additional security and relieving some load to the servo splines themselves.

Features

Overview

The broad base of the horn tapers to the connection area where the steering takes place. The boss on top surrounds the ball-end and provides a hefty surface for steering direction. Small ribs have been added on the sides to help strengthen the unit in a twisting fashion and a deep pocket hides the 3mm standard mounting screw. The entire horn has been retouched with chamfer highlight edging and laser etched with JC and the tooth count for high-end looks and authenticity.
