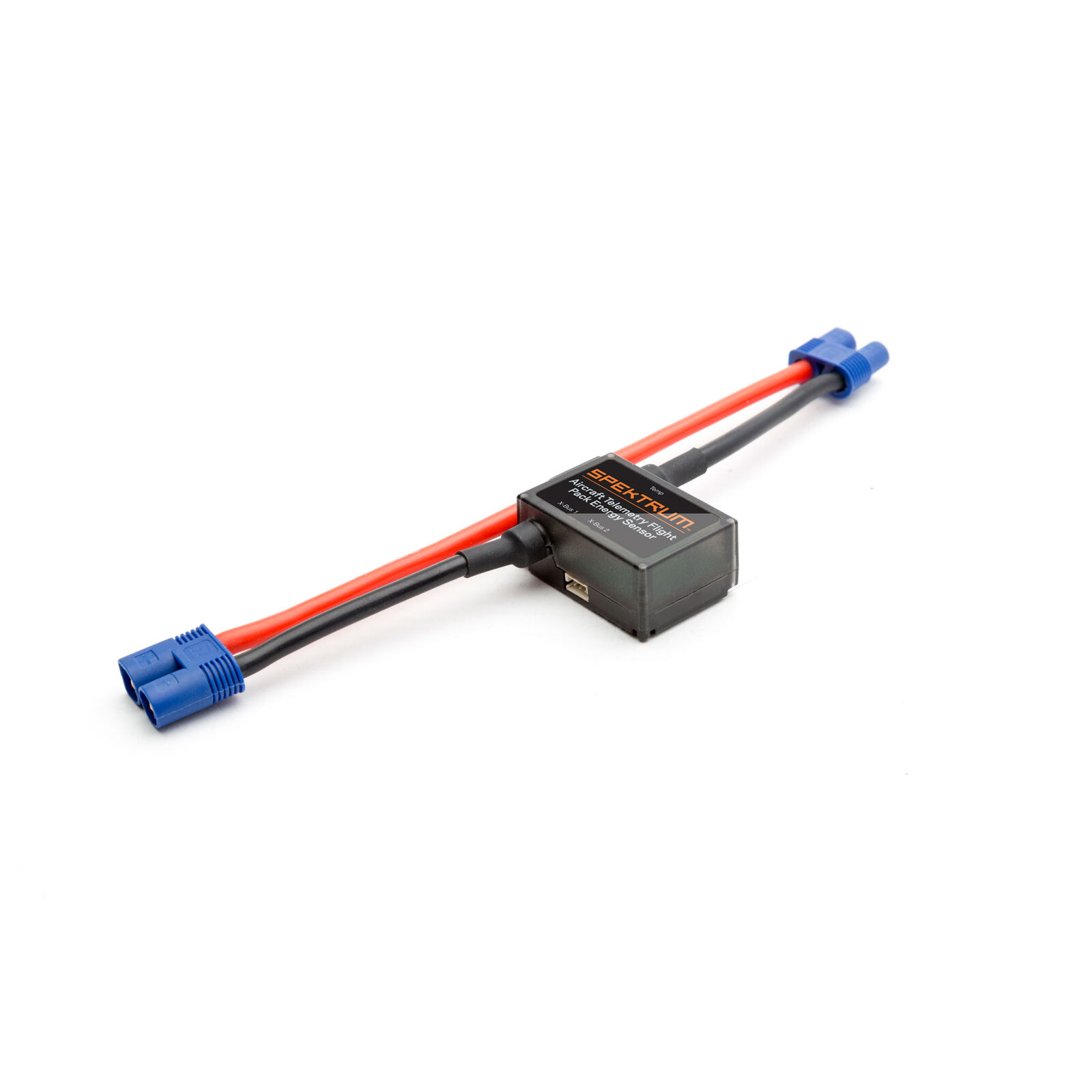

Aircraft Telemetry Flight Pack Battery Energy Sensor

Item No. SPMA9605
Discontinued
Brand Logo
4.8 out of 5 Customer Rating

Aircraft Telemetry Flight Pack Battery Energy Sensor

Item No. SPMA9605
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Measure mAh (coulombs) – Monitors the level of mAh used in a single flight pack battery
  • Compact Design – Small footprint allows for virtually unlimited applications
  • Easy Set Up – No calibration or programming of the unit itself is required
  • EC3 Connectors – Uses standard EC3 battery connectors to easily connect between the battery and ESC
  • Telemetry Module or Telemetry Reciever and a Telemetry Capable Transmitter required

Overview

The Spektrum Aircraft Telemetry Flight Pack Energy Sensor is designed to measure Capacity Used, Current, and Temperature of your flight pack. With this information you’ll be able to determine how much capacity has been used by your electric power system all the while monitoring the results through the telemetry settings in your telemetry compatible Spektrum transmitter. Pre-wired with a EC3 power connector the Flight Pack Energy Sensor also allows you to monitor the temperature of the battery while in use. With its light weight design and simple installation you’ll be flying with confidence in your aircrafts power system.

Note: Not Compatible with DX8 Gen1, DX7s and Apple STI Device.

Product Specifications

Input Voltage 3.5?50V
Product Height 0.6 in (15mm)
Wire Gauge 13 AWG
Application Telemetry
Product Weight 0.85 oz (24g)
Connector Type EC3
Product Length 1.3 in (33mm)
Maximum Burst Current 140A (with sufficiently rated connector and wire)
Maximum Continuous Current 60A (Change EC3 connector to EC5 if current exceeds 60A)
Product Width 0.9 in (23mm)
