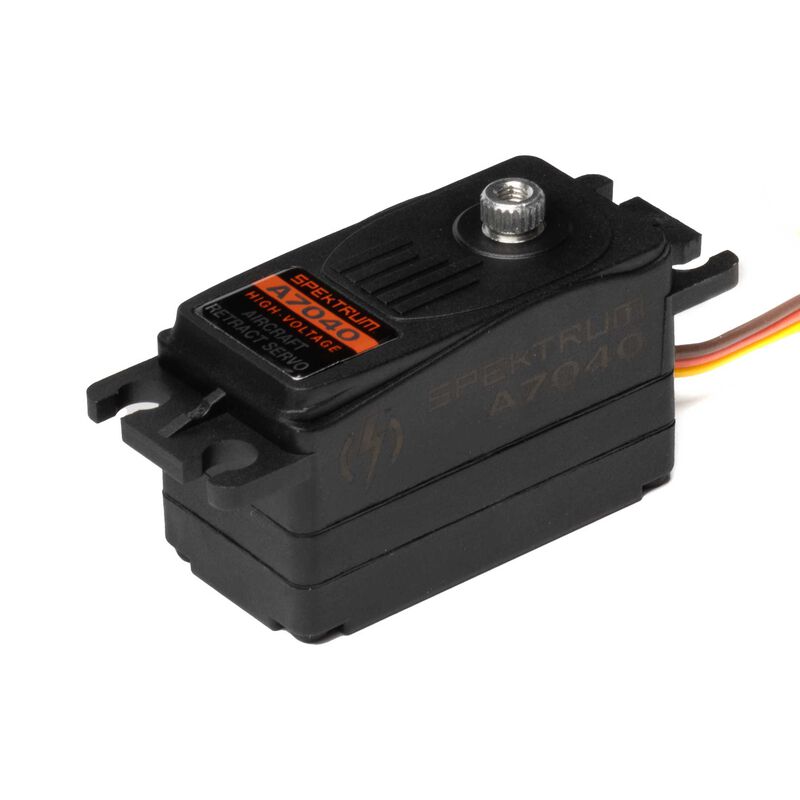

A7040 Analog HV Aircraft Metal Gear Retract Servo

Item No. SPMSA7040
Brand Logo
3.2 out of 5 Customer Rating

A7040 Analog HV Aircraft Metal Gear Retract Servo

Item No. SPMSA7040
$39.99 Price reduced from $45.99 to
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features

  • Retract servo with adjustable endpoints
  • High-voltage compatible
  • Slow transit speed of 1.39 sec/160° at 7.4V for realistic landing gear operation

Overview

The A7040’s wide stance and low profile design along with its heavy duty metal gears, cored motor and class leading, 266 oz.-in. of torque, is ideal for mechanical retract systems. Its ability to accept a higher voltage from a 2S Li-Po battery makes setup simpler and operation more efficient. Fully proportional with endpoint adjustable, when paired with a servo speed function, the landing gear movement can be adjusted to simulate scale applications.

Detailed Information

Click Here to see Spektrum's Servo Reference Chart

Product Specifications

Specs

Speed 1.92 sec/160? @ 6.0V; 1.39 sec/160? @ 8.4V
Torque 195 oz-in (14.0 kg-cm) @ 6.0V; 266 oz-in (19.2 kg-cm) @ 8.4V
Servo Type Analog
Servo Size Category Specialty
Servo Operating Voltage 6.0 - 8.4V (HV)
Product Width 0.87" (22.2mm)
Programmable No
Product Height 1.07" (27.3mm)
Product Length 1.70" (44mm)
Product Weight 1.48 oz (42.0g)
Maximum Servo Torque 200-349 oz-in
Maximum Servo Speed 0.200+ sec
Gear Type Metal
Bearing Dual
Bushing Or Bearing Bearing
