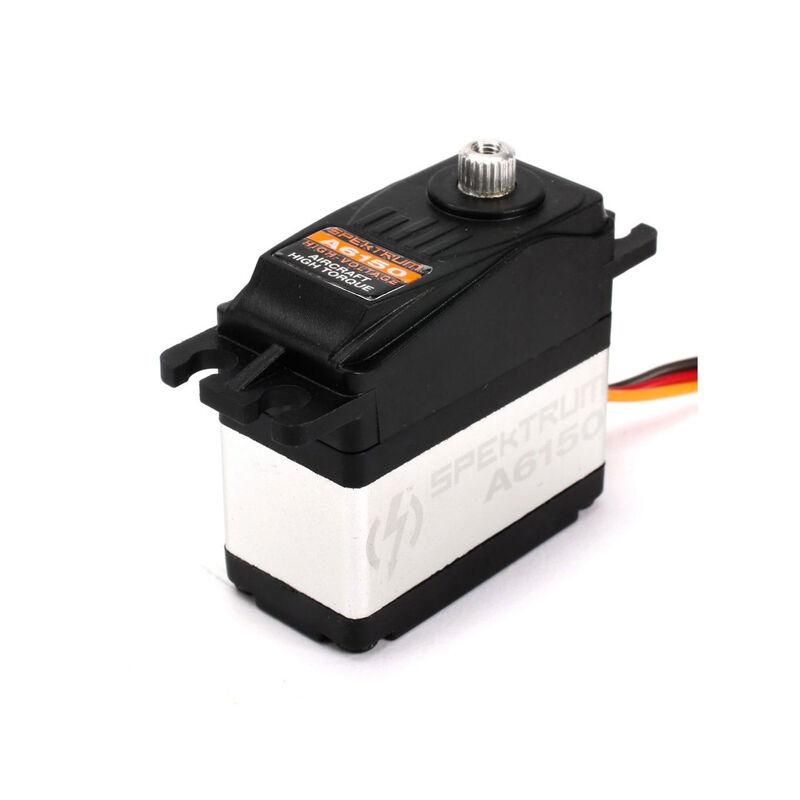

A6150 Standard Digital HV High Torque Metal Gear Aircraft Servo

Item No. SPMSA6150
Discontinued
Brand Logo
4.3 out of 5 Customer Rating

A6150 Standard Digital HV High Torque Metal Gear Aircraft Servo

Item No. SPMSA6150
This Item is No Longer Available
Selected Store
A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
SPMSA6380
View Alternate Product Details

Product Details

Key Features

  • High-voltage compatible
  • 0.12 sec/60° transit speed with 180 oz-in of torque @ 7.4V
  • Metal gears and metal center section of case

Product Specifications

Bearing Dual
Bushing Or Bearing Bearing
Gear Type Metal
Maximum Servo Torque 140 oz-in (10.1 kg-cm) @ 6.0V; 180 oz-in (13.0 kg-cm) @ 8.4V
Motor Type Brushed
Number of Poles 5
Product Height 1.51" (38.3mm)
Product Length 1.57" (40mm)
Product Weight 1.90 oz (53.9 g)
Product Width 0.79" (20mm)
Servo Operating Voltage 4.8 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
