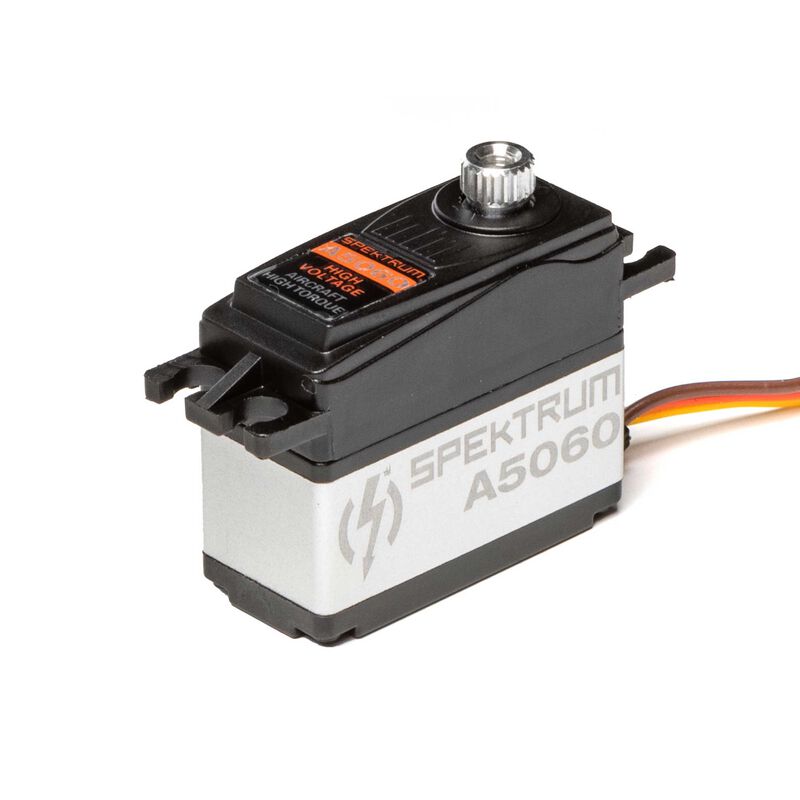

A5060 Mini Digital HV High Torque Metal Gear Aircraft Servo

Item No. SPMSA5060
Brand Logo
3.2 out of 5 Customer Rating

A5060 Mini Digital HV High Torque Metal Gear Aircraft Servo

Item No. SPMSA5060
$49.49 Price reduced from $56.99 to
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features

  • HV compatible
  • 118 oz-in of torque and a transit speed of .11 sec/60° at 8.4V offers impressive performance for a mini servo
  • Metal gear train for robust and rugged performance
  • Aluminum center section case doubles as a heat sink to keep the motor cool which increases performance and life of the servo, and adds high end look and feel

Product Specifications

Specs

Bushing Or Bearing Bearing
Bearing Dual
Servo Type Digital
Maximum Servo Speed 0.100-0.149 sec
Gear Type Metal
Speed 0.15 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 8.4V
Torque 87 oz-in (6.3 kg-cm) @ 6.0V; 118 oz-in (8.5 kg-cm) @ 8.4V
Product Height 1.08" (27.4mm)
Product Length 1.30 " (33.0mm)
Product Weight 0.92 oz (26.0 g)
Product Width 0.58" (14.7mm)
Motor Type Coreless
Maximum Servo Torque 100-199 oz-in
Programmable No
Servo Size Category Mini and Micro
Servo Operating Voltage 6.0 - 8.4V (HV)
