1/8 USA-1 4WD .25 Nitro Monster Truck RTR

Item No. KYO33155
Brand Logo
5 out of 5 Customer Rating

1/8 USA-1 4WD .25 Nitro Monster Truck RTR

Item No. KYO33155
Earn points on this item
Back Order
Selected Store

Product Details

The original Kyosho Nitro USA-1 set the standard for RC Monster Truck power and performance when it was released in 1990. 30 years later, the torch has passed to the newest Nitro USA-1, which outperforms the original in EVERY respect. Yes, it's that much better… and we even build it for you.
Key Features
  • Pre-Assembled Chassis With R/C System Installed
  • Equipped With Waterproof KS5031-09MW Servos
  • Ultra Scale, Licensed USA-1 Polycarbonate Body
  • Equipped With A New KE25SP2 Engine
  • Optional Four Wheel Steering
In The Box
  • (1) 1/8 USA-1 Nitro .25 Powered Monster Truck RTR
  • (1) 2.4GHz Syncro KT-231P+ Transmitter
  • (4) Hex Wrenches: 1.5, 2.0, 2.5, 3.0mm
  • (1) Cross Wrench (large)
  • (1) 17mm Wheel Wrench
  • (1) User Manual
Needed to Complete
  • (8) AA Batteries
  • (1) Engine Glow Heater
  • (1) Fuel and Fuel Bottle
1/8 USA-1 4WD .25 Nitro Monster Truck RTR


Built on a pickup truck chassis, large diameter tires and big engines with massive horsepower were installed by fun-loving American off-roaders to create the monster truck. These ever-popular monster trucks can be seen on specially-made racing circuits or jumping rows of cars in stadiums across the USA. Many R/C monster truck models have been produced over the years. First among equals is the legendary 1/8 scale USA-1 that embodied the might of American trucking power during the 1980’s and 90’s. Officially licensed by Kyosho in the 1990’s, the R/C model uniquely captured the power and glory of the USA-1. Now it’s ‘comeback-time’ for the USA-1, with modern chassis and drivetrain technology, upgrades unique to the USA-1 throughout, and a newly-designed ‘ULTRA SCALE BODY’ with form and detail finished to display-model standards. The iconic American flag graphic emblazoned on the body makes your heart swell with pride! The chassis features shaft-driven 4WD and 5-link suspension based on the Mad Crusher 2.0 and FO-XX models. Most of the suspension components have been uniquely upgraded and reinforced for the USA-1 at each point to handle the powerful new KE25SP2 engine, and the rigors of monster trucking. A 3-speed automatic transmission produces dynamic acceleration, which is enhanced by a true suspension system to produce "scale" running characteristics worthy of the prestigious USA-1, and make you feel like a monster truck driving god. Released as a pre-assembled Readyset, the USA-1 is almost ready for action straight out of the box.


  • Pre-assembled chassis with R/C system installed and finished body. Includes pistol-grip Synchro KT-231P+ transmitter.
  • 5-link suspension in combination with shaft-type 4WD delivers exceptional stability over rough roads.
  • Equipped with waterproof KS5031-09MW servos that incorporates durable metal gears.
  • Ultra-realistic scale body has been recreated under license of USA-1, including the signature color scheme.
  • Optional LED light set shines bright with LED head and tail lamps and rooftop fog lamps.
  • Equipped with a new KE25SP2 engine with easy needle setting. Also includes break-in ring to get the engine safely prepared for harder running.
  • Gleaming polished tuned muffler is equipped as standard.
  • Front center drive features a telescopic universal shaft to ensure high drive efficiency and prevent shaft dropout issues.
  • Optional 4WS (four wheel steering) increases turning power. A wide range of other options is also available.
  • 8 x AA batteries for transmitter and receiver, fuel, fuel pump and plug heater are required for operation.
  • Electric version using the same body and chassis components is also available.

Video Overview


Rigid Chassis Design
Rigid Chassis Design

The combination of the rigid frame with a shaft-driven 4WD system and five-link suspension is well-suited to handle the full grunt of the powerful new engine, just like the original machine. This Readyset model comes with R/C system pre-installed.


Polycarbonate Body
Polycarbonate Body

Under license by USA-1, the newly developed polycarbonate body has been produced to a spectacular level of detail with body size and tire ratio almost identical to that of the real USA-1. With separately molded accessory body parts including grille, carburetor, mirrors, roll cage, chassis-mounted front bumper, and removable 5-series fog light row on the roof, the spirit and legend of the USA-1 is captured in all its glory.


Triple Carburetors
Triple Carburetors

Molded and chrome-plated triple carburetors look identical to those used on the real truck, which looks awesome sticking through the hood once the body is attached. Coupled with the growl of the powerful engine, this accessory creates even more original details of the USA-1 more than ever.


KE25SP2 Engine
KE25SP2 Engine

Equipped with a new KE25SP2 engine, the easier-to-adjust low-speed needle makes it easier to produce more power than the previous KE25SP engine. The engine is fitted with a pull starter so a starter box isn’t required and engine settings have been optimized at the factory.


Automatic Transmission
Automatic Transmission

The time-tested 3-speed automatic transmission effectively utilizes the full power of the engine. In the low speed range, the torque of the engine is optimized by the ratio of first gear, while the 2nd gear covers the medium speed range where torque tends to be insufficient. Acceleration to maximum speed is achieved smoothly and efficiently.



Differentials in the front and rear axles are taken directly from a well-developed World Champion 1/8-scale off-road car, and are equipped with metal ring, pinion, and spider gears to handle the power of the 25-class (approx. 4.2cc) engine, all while managing the difference in rotation between the left and right tires during turns for smooth, stable driving characteristics and increased traction.

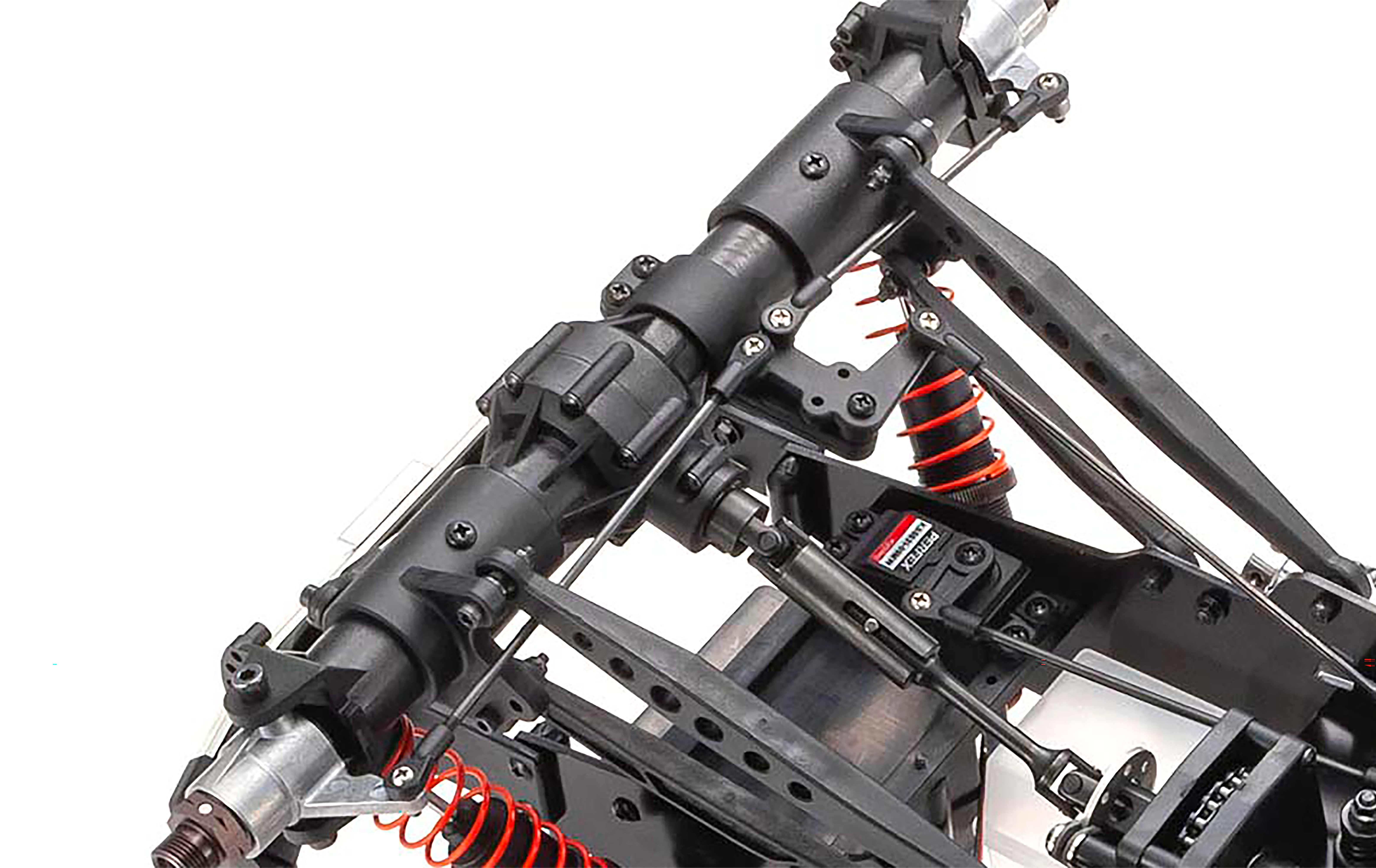

5-Link Suspension
5-Link Suspension

A 5-link suspension platform controls the rigid front and rear axles to minimize drive loss and deliver superior traction and handling over uneven and varying running surfaces. The large-capacity oil shocks reliably help to absorb the impacts from the running surface.


Reinforced Axle Housing
Reinforced Axle Housing

The reinforced axle housing thrives under high-power and rough road conditions while improving crash resistance. The scale aspects of the dynamic steering options of the early monster trucks can be enhanced with the addition of optional rear wheel steering to create a true AWS (All-Wheel Steering) system.


Rigid Suspension
Rigid Suspension

Combination of big tires with 5-link suspension provides plenty of stroke to overcome large obstacles. Lateral rods that increase suspension rigidity are also standard equipment on front and rear.


Product Specifications

Charger Sold Separately
Receiver Included
Product Weight 4,990g
Vehicle Type Monster Truck
Water-Resistant No
Servos Included
Power Type Nitro
Body Pre-cut And Painted Body Complete With Decals Applied
Scale 1/8
Battery Sold Separately
Product Length 22.32" (567 mm)
Radio Included
Product Width 17.91" (455 mm)
Wheelbase 14.17" (360 mm)
Chassis Pre-assembled Chassis With Pre-set Control Linkages
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake
Product Height 11.69" (297 mm)
