1/8 TYPHON 3S BLX 4WD Brushless Buggy RTR, Black

Item No. ARA102696
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/8 TYPHON 3S BLX 4WD Brushless Buggy RTR, Black

Item No. ARA102696
This Item is No Longer Available
Selected Store
1/8 TYPHON 3S BLX 4WD Brushless Buggy with Spektrum RTR, Red
1/8 TYPHON 3S BLX 4WD Brushless Buggy with Spektrum RTR, Red
ARA102722
View Alternate Product Details

Product Details

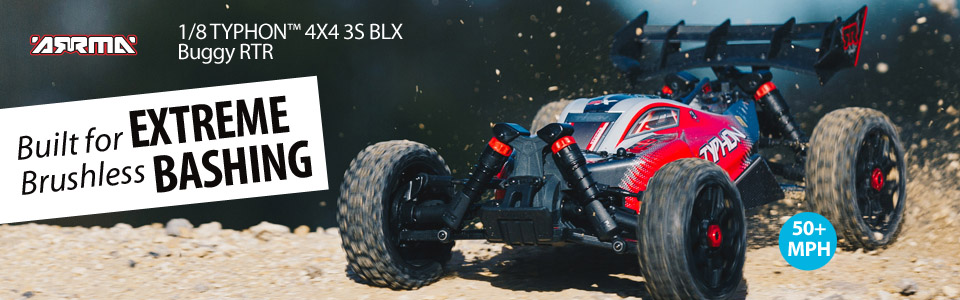

TYPHON 4X4 3S BLX 1/8 RTR Buggy

Key Features

  • Extremely durable
  • Fast, 50+ mph speeds
  • Ideal entry into brushless buggy bashing
  • Ready-to-run
  • Tactic® TTX300 3-channel 2.4 GHz radio system with adjustable steering rate, end point, and trims
  • ADS-7M waterproof, metal gear servo
  • Max. Servo Torque @6V: 84 oz-in (6 kg-cm)
  • Max. Servo Speed @6V: 0.14 s
  • New wheel axles, 17mm wheel hubs and wheel nuts that accept standard 1/8 scale buggy wheels and tires
  • Waterpoof electronics
  • BLX100 ESC with EC5 connector
  • BLX 3200Kv brushless motor
  • 2-year limited warranty
Needed to Complete
  • 6 to 8-Cell NiMH, 2S LiPo or 3S Hardcase LiPo Battery
  • Appropriate LiPo/NiMH charger
  • LiPo Charging Bag
  • 4 AA Batteries
What's in the Box?
  • (1) TYPHON 4X4 3S BLX 1/8 RTR Buggy
  • (1) Tactic® TTX300 3-channel 2.4 GHz radio transmitter
  • (1) Product Manual

Overview

The TYPHON™ 4X4 3S BLX brings the power, strength, and style of the TYPHON 6S BLX buggy to a 3S-capable version that reaches extreme 50+ mph speeds. Making your move into 1/8 scale brushless buggy bashing has never been easier — or more exciting!

ARRMA powers the TYPHON 4X4 3S BLX with its BLX100 brushless system, featuring a 3200Kv brushless motor and 100A ESC. This 3S LiPo-capable setup has proven its speed and toughness in the GRANITE 4x4 BLX monster truck and SENTON 4x4 BLX short course truck. As in those machines, the transmission and chassis have been beefed up to allow this buggy to take full advantage of the electronics’ power.

The low center of gravity, with wide arms and narrow buggy wheels and tires, improves handling over all of your favorite bashing terrain — race tracks, trails, muddy courses, skate parks, and more.

The body is the same size as that of the TYPHON 6S BLX model and captures the same sleek look, with body mounting points tweaked to match the mounting points available on the chassis.

Video Overview


TYPHON 4X4 3S BLX 1/8 RTR Buggy

Product Specifications

Approximate Assembly Time Less than 1 Hour
Ball Bearings Transmission Only
Battery 6 to 8-Cell NiMH, 2S LiPo or 3S Hardcase LiPo Battery (sold separately) 6.50 x 2.00 x 1.89 in (165x51x48 mm) maximum battery dimensions
Body Painted, decals applied, and trimmed
Brakes Electronic
Bushing Material Plastic
Charger Appropriate LiPo/NiMH charger (sold separately)
Chassis Molded Composite
Completion Level Ready-To-Run
Differential Oil filled, metal internal geared differentials
Drivetrain 4WD
Final Drive Ratio 10.83:1
Gear Pitch 0.8 Module
Ground Clearance 1.65 in (42mm)
Inner Tire / Outer Wheel Diameter 3.37 in (83mm)
Internal Gear Ratio 2.85:1
Motor Size 3660
Outer Diameter 4.60 in (117mm)
Pinion 15T
Power Type Electric
Product Height 7.68 in (195mm)
Product Length 20.12 in (511mm)
Product Weight 5.68 lb (2.58kg)
Product Width 12.05 in (306mm)
Radio Tactic TTX300, 3 channel
Scale 1/8
Servos ADS-7M waterproof, metal gear servo
Shock Type Coil-over-oil, Molded Composite
Speed Control BLX100, Waterproof, EC5 connector
Spur Gear 57T
Suspension Independent
Tire Tread 2HO
Vehicle Type Buggy
Water-Resistant Yes
Wheel Hex Size 17mm
Wheel Type 1/8th Buggy, 17mm Hex
Wheelbase 12.91 in (328mm)
