Product Details

Key Features
  • Chassis: DT-02 ABS plastic tub
  • Drive: Rear wheel
  • Pinion Gear: 17 tooth metal
  • Motor: 540 size
  • Electronic Speed Control: Tamiya TEU-104BK with reverse
  • Differential: Planetary gear
  • Gearbox: Sealed
  • Shocks: CVA oil-filled
  • Transmission: Single-speed with fully enclosed gearbox
  • Suspension: Double wishbone
  • Body: Clear untrimmed polycarbonate
  • Steering: Two-piece adjustable steering tie rods with servo saver
  • Tires: Dual block with foam inserts, Front-2.5" (64mm) outer diameter 1.5" (39mm) wide Rear-2.5" (64mm) outer diameter, 1.7" (44mm) wide
  • Wheels: Plastic, gray in color front-0.94" (24mm) wide, 2.1" (54mm) diameter, Rear-1.4" (35mm) wide, 2.1" (54mm) diameter, 12mm hex
  • Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
  • Camber: Non-adjustable
icon-box
In The Box
  • 1/12 scale Tamiya Nissan Titan Truck with Body
  • Wheels
  • Tires
  • ESC
  • 540 Motor
  • Servo Saver
  • Decals
  • Product Manual
icon-how-to
Needed to Complete
  • Radio: 2-channel with steering servo
  • Battery: 6-cell, 7.2V NiMH stick pack with standard connector
  • Battery Charger: To match selected battery
  • Transmitter Batteries: Four or eight depending on transmitter
  • Tools and track equipment
1/12 Nissan Titan 2WD Off Road Racing Truck Kit

Key Features

  • Polycarbonate body
  • 2WD with full independent suspension
  • Oil filled dampers
  • Newly-designed damper stays enable installation of long oil dampers to provide plenty of suspension travel
  • Fully-enclosed gearbox protects against dirt and debris
  • Front and rear Dual Block Tires
  • Type 540 motor included
  • Tamiya TEU-104BK ESC included

Overview

This is an easy to build Nissan Titan truck kit. The body is mounted on the Tamiya DT-02 platform buggy chassis, which makes it ideal for any new hobbyist building a construction kit for the first time. The Nissan Titan body replicates the truck as it was raced in the 2006 Championship Off-Road Racing (CORR) season in the United States.

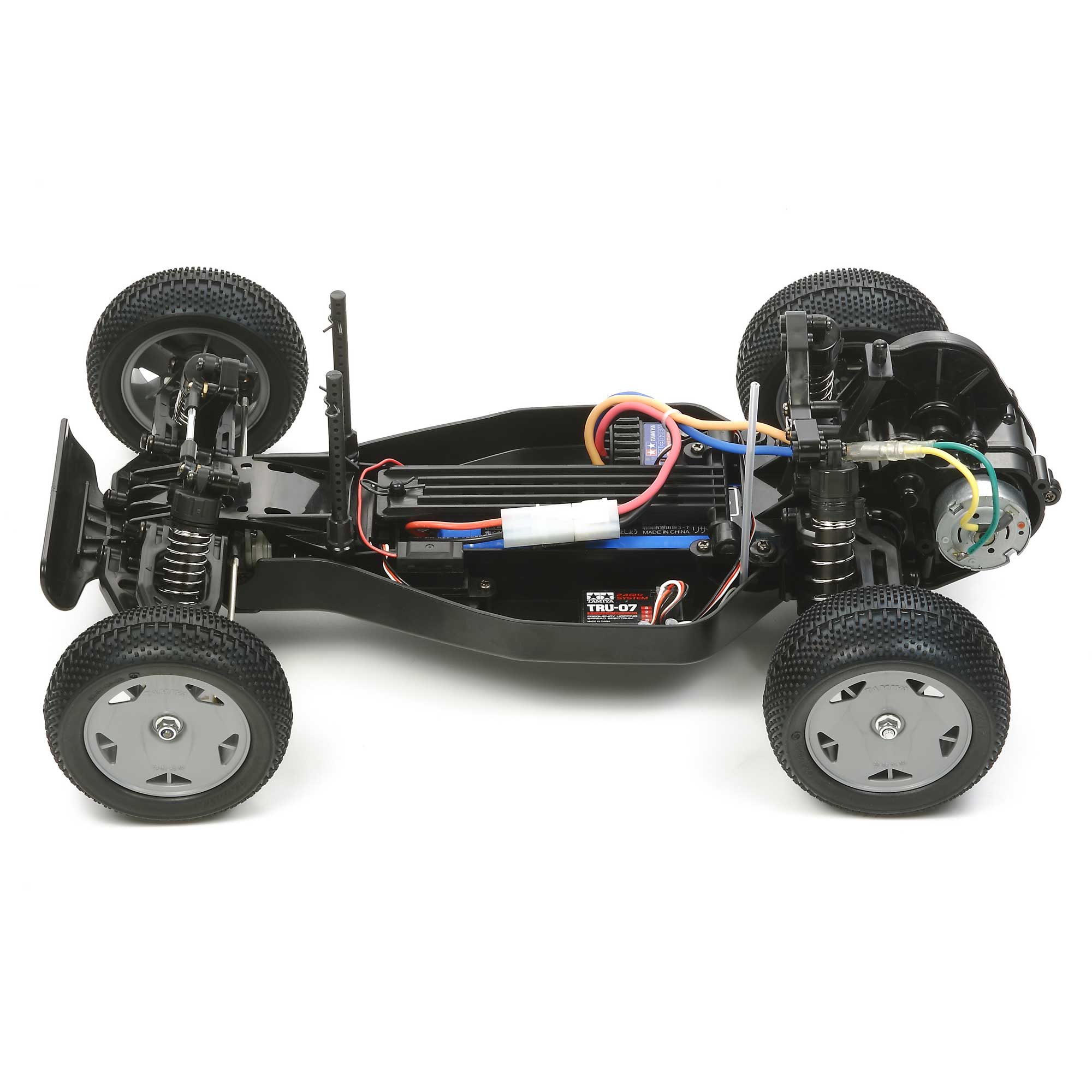

The DT-02 chassis bathtub type frame chassis features a longitudinal battery layout for lower center of gravity and optimum weight distribution. 4-wheel double wishbone suspension is equipped with CVA oil damper units to provide superb off-road traction. A sealed gearbox protects against dust and debris and is equipped with differential gears to ensure smooth cornering. Star-dish wheels are paired with dual block K tires front and rear to ensure that the model offers a dynamic drive.

Video Overview



Product Specifications

Chassis DT-02 bathtub type frame
Completion Level Kit
Drivetrain 2WD
Product Height 6.6" (168 mm)
Vehicle Type Short Course Truck
Power Type Electric
Brakes Integral with ESC
Scale 1/12
Body Trimmed, painted and decaled
Charger Sold Separately
Differential 3 bevel gears
Final Drive Ratio 9.28:1
Motor Type Brushed
Wheelbase 10.3" (263mm)
Product Width 9.7" (246 mm)
Product Length 16.3" (414 mm)
Battery Sold Separately
