1/10 Volkswagen Beetle 2014 2WD Off-Road Buggy Kit

Item No. KYO30614B
Brand Logo
5 out of 5 Customer Rating

1/10 Volkswagen Beetle 2014 2WD Off-Road Buggy Kit

Item No. KYO30614B
This Item is No Longer Available
Selected Store

Product Details

The legendary Beetle returns with powerful off-road performance! Spirit of the original is enhanced with modern technology!
Key Features
  • Stylish Aerodynamic Design
  • Aluminum Suspension And Gearbox
  • Lightweight Design
  • Revival Of The Famous Kyosho Scorpion
  • Unassembled Kit
In The Box
  • (1) Volkswagen Beetle 2014 2WD Buggy Kit
  • (1) Clear Polycarbonate Body
  • (1) Decal Sheet
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Motor
  • (1) Electronic Speed Controller
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger

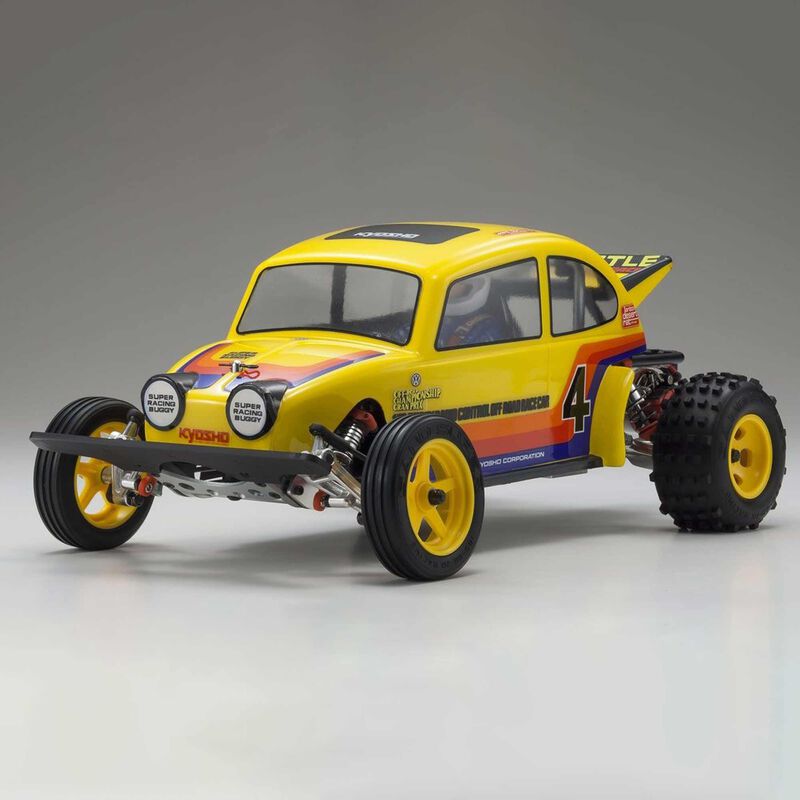

1/10 Volkswagen Beetle 2014 2WD Off-Road Buggy Kit


The famous Kyosho Scorpion and Baja Beetle combined into one legendary off-road machine that became synonymous with electric buggy racing in the 1980’s, a name that is still known around the world today. Now, in honor of the original Scorpion and its many fans, the Beetle makes a triumphant return with the advanced Scorpion 2014 chassis featuring the same basic ladder frame 2WD structure as the original, but with the latest technology and components. from the kit, making assembly easier and the finished chassis lighter and more rigid. From experts familiar with the Scorpion’s standard of performance to present-day drivers unaware of the Scorpion legend, all will enjoy the Scorpion experience that inspired so many.


  • Revival of the off road BEETLE. 2014 version upgraded throughout
  • Kit includes pre-assembled gearbox and oil shocks (shock oil sold separately).
  • 6061T6 forged aluminum suspension arms
  • Two-piece diecast aluminum gearbox with built-in diff gears
  • Slipper clutch protects gears and provides traction setting options
  • Oil shocks with aluminum cylinders and stainless shafts deliver smooth movement
  • Countersunk surface allows screws to be seated flat
  • Lightweight design from reduction in tapping screws and nuts
  • Near complete use of hex screws provides secure assembly
  • One-piece structure of rear wheels realizes lighter weight
  • Inner sponges included with rear tires
  • Includes newly developed block pattern high-grip compound tires
  • High efficiency full ball bearing specification
  • Radio box is suitable for the various shapes and sizes of current batteries
  • Ball diff from Ultima RB can be installed as an optional upgrade

Volkswagen Beetle 2014


Advanced Features
Advanced Features

The nostalgic form of the Baja Racer combines with advanced components and full ball bearing specifications. More power and performance than ever!

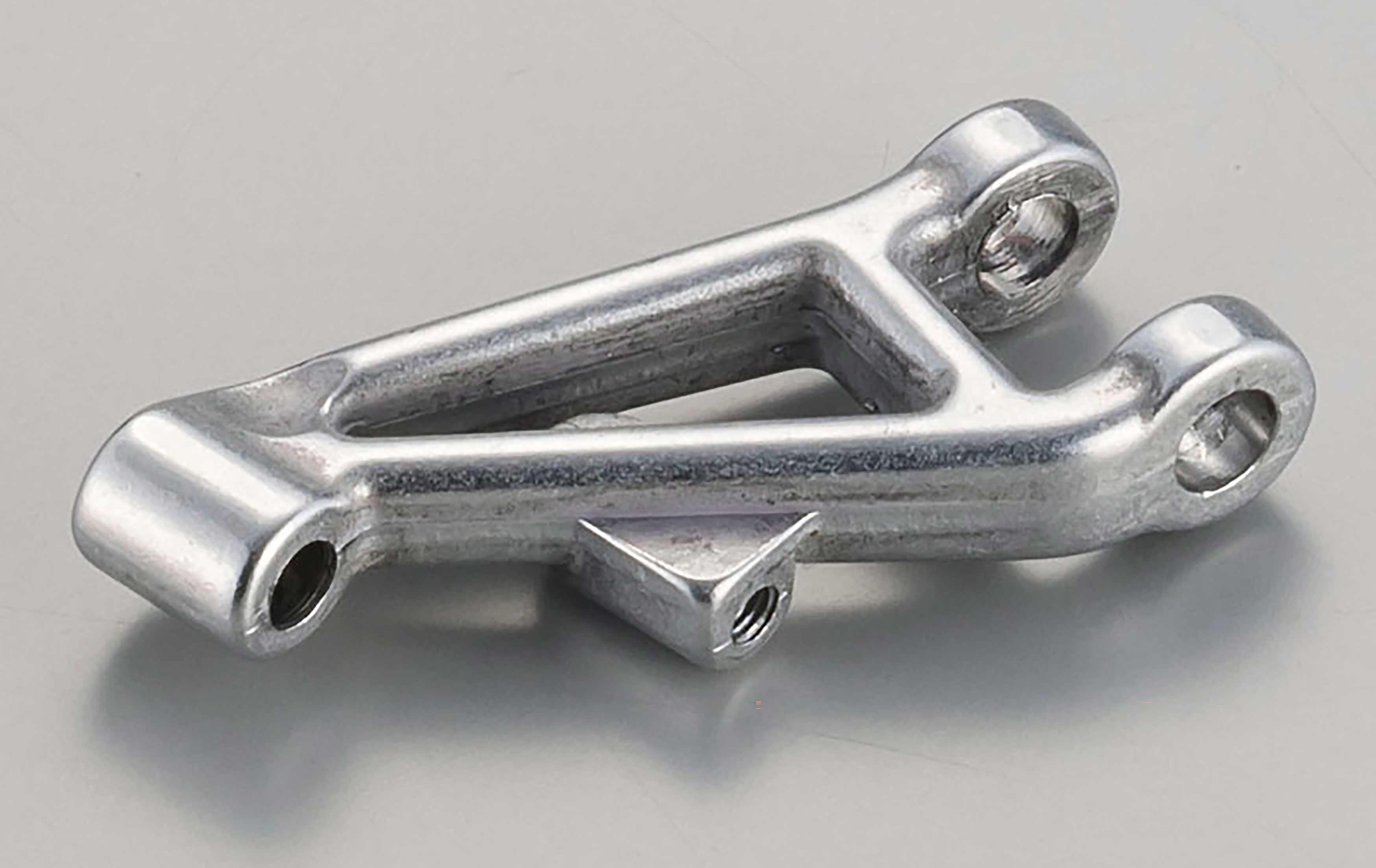

Aluminum Suspension
Aluminum Suspension

Front and rear suspension arms are made from 6061T6 aluminum to realize improved rigidity, durability and lightness. Wide front tread delivers superior driving stability.

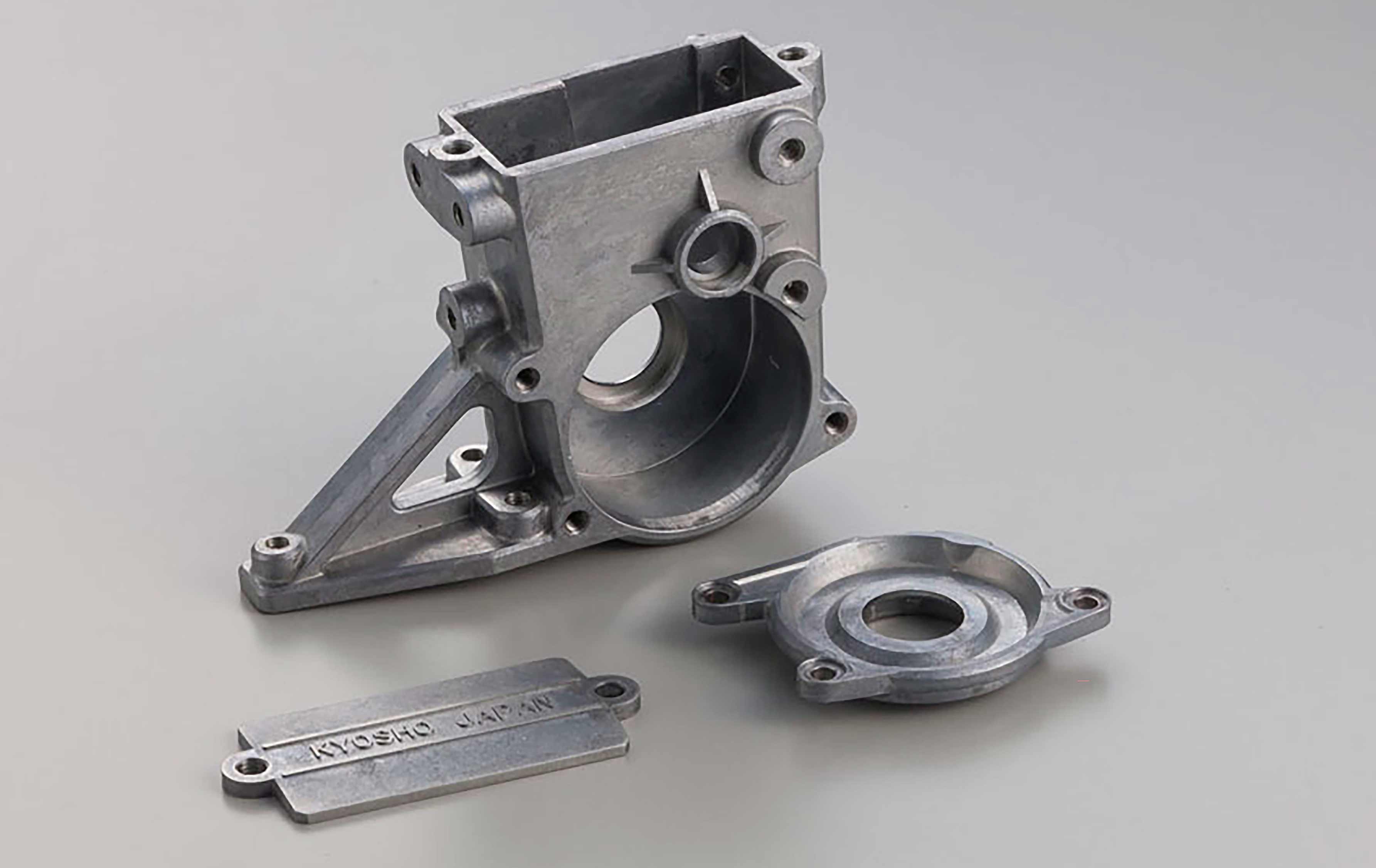

Aluminum Gearbox
Aluminum Gearbox

Includes two-piece diecast aluminum gearbox with built-in diff gears. Slipper clutch included can be set according to various surface types and conditions.

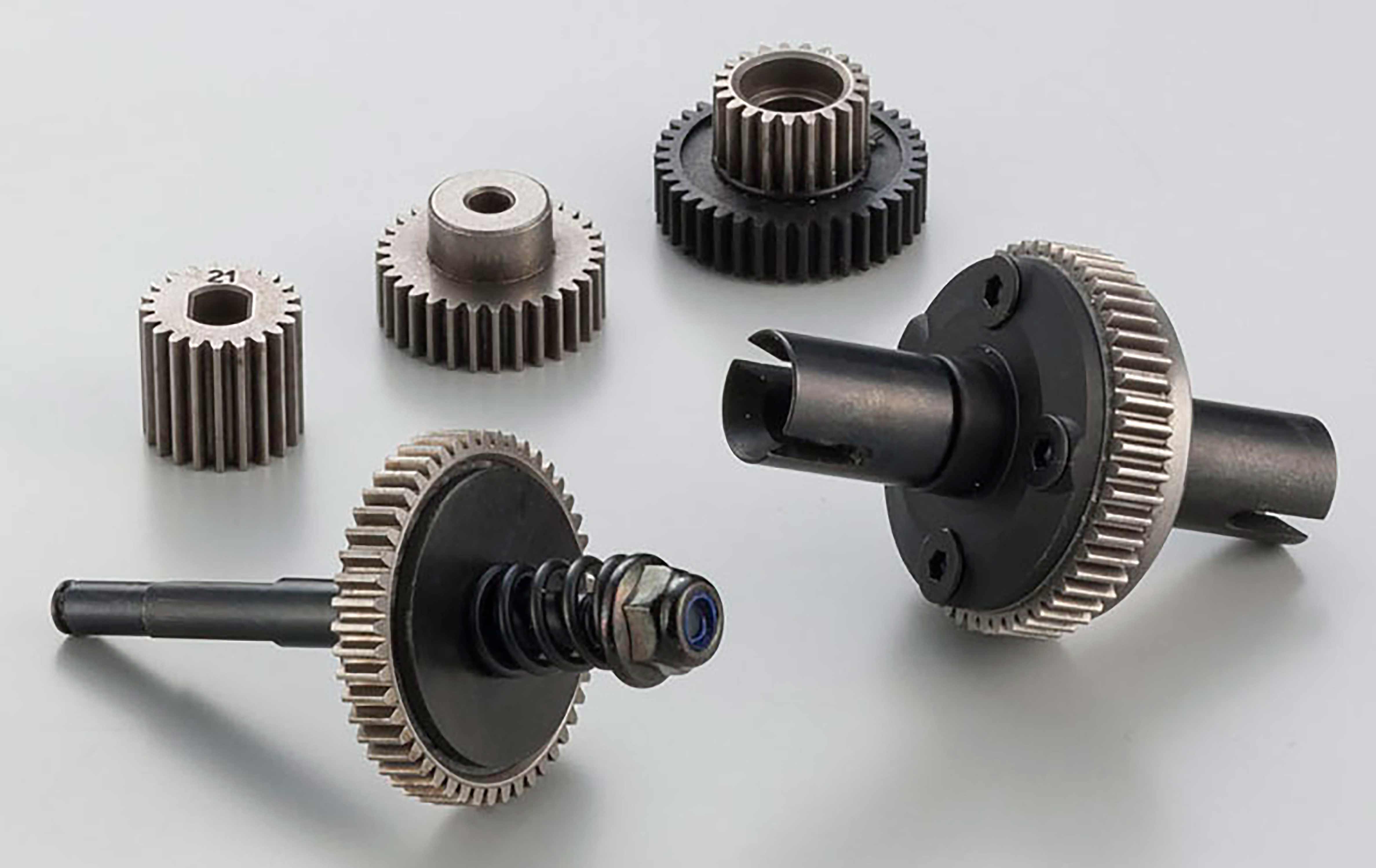

Alloy Gears
Alloy Gears

Sintered alloy and nylon combine in 48 pitch gears to deliver superior efficiency. Includes two gears for high-speed and low-speed settings. Ball differential is also available as an optional upgrade.

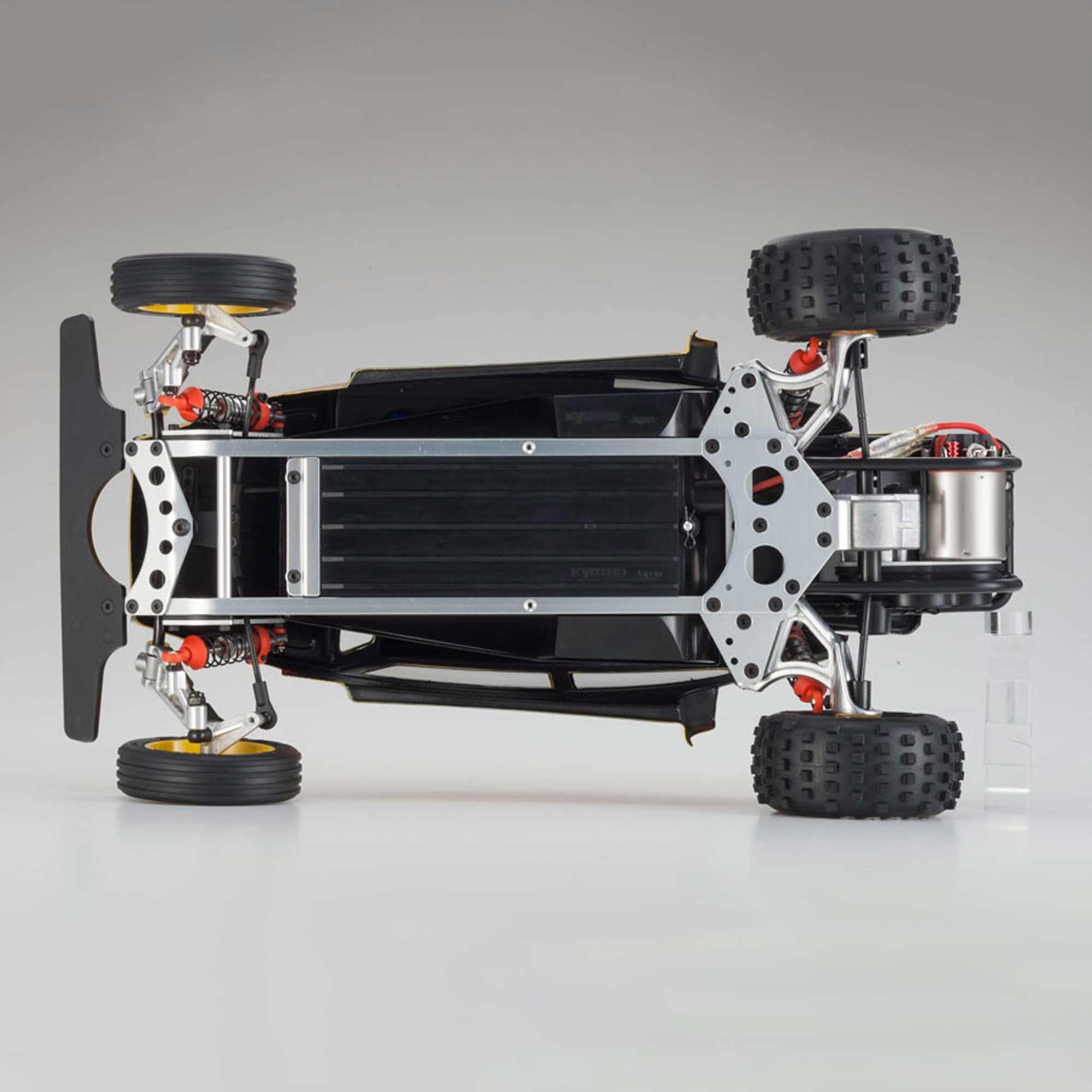

Aluminum Chassis
Aluminum Chassis

Main frame, front and rear shock stays and sub frame plate are made from 6061T6 aluminum. Underside of chassis is countersunk for a flat finish.

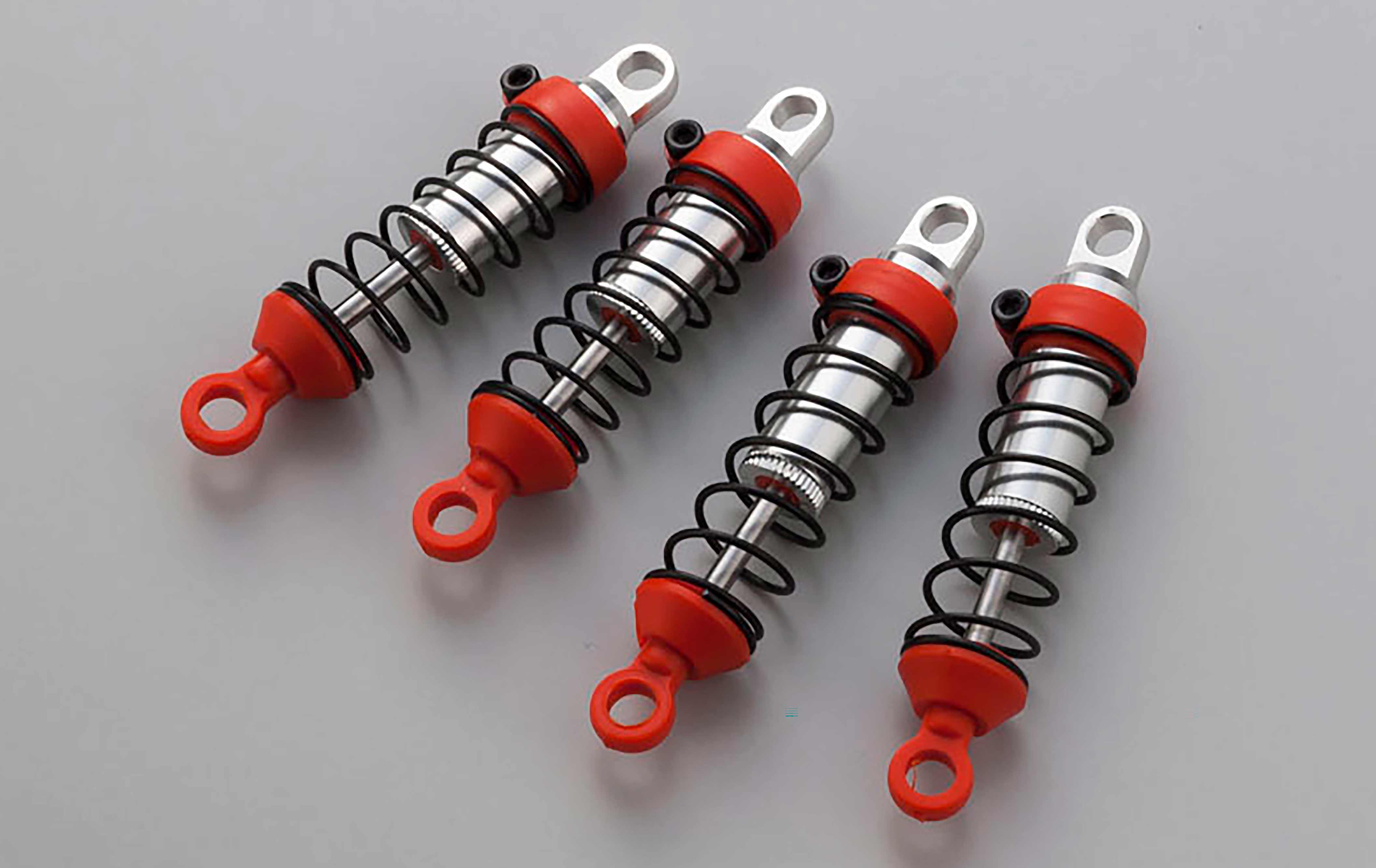

Aluminum Shocks
Aluminum Shocks

Aluminum cylinders and stainless shafts in the oil shocks produce effective damping. Delivers smooth movement through the entire stroke range.

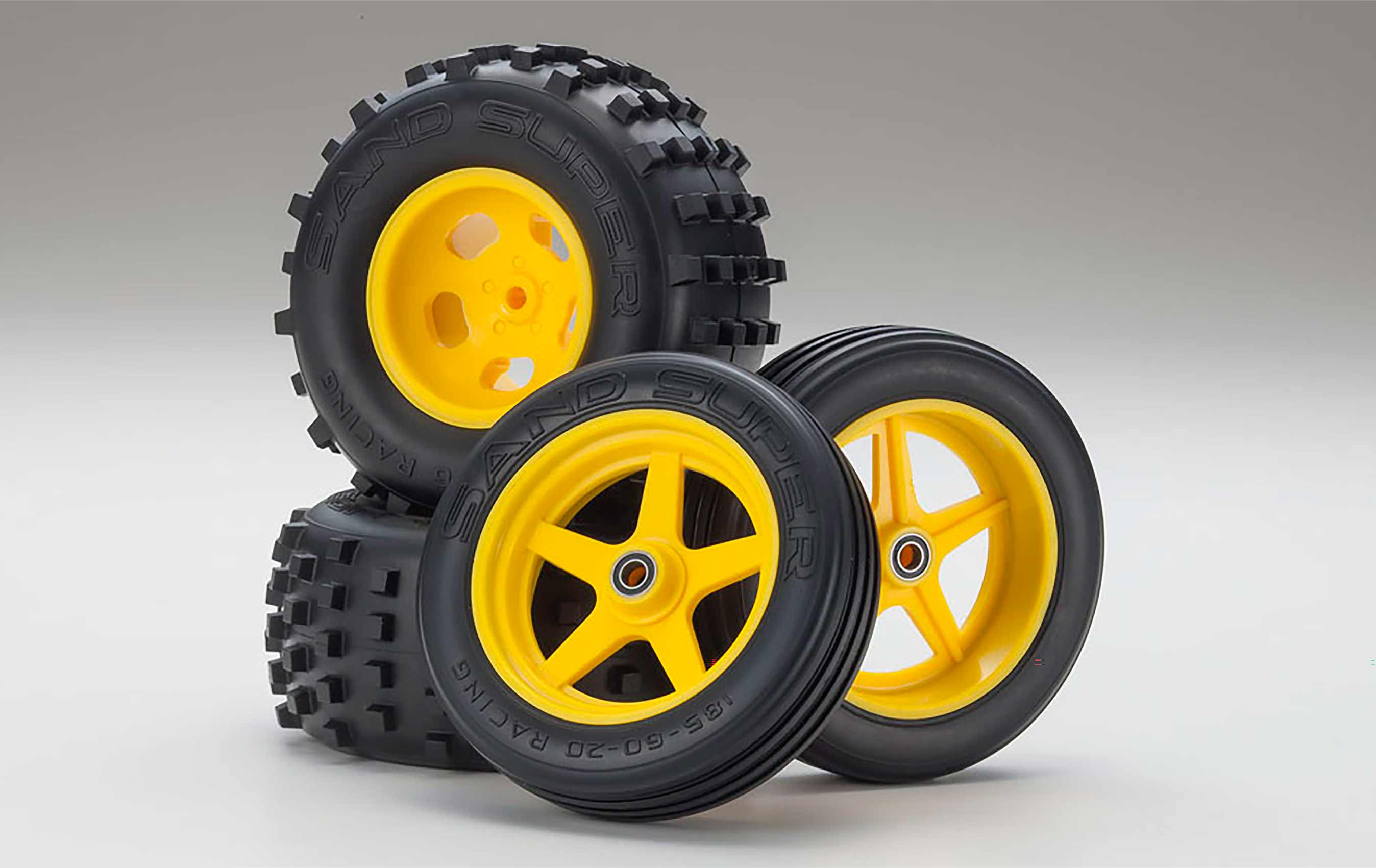

Wheels and Tires
Wheels and Tires

Unique Baja style is recreated with advanced high-grip compound tires with new tread pattern. Rear tires are equipped with inner sponges and the one-piece structure of wheels realizes lighter weight.


Product Specifications

Motor Type Brushed
Speed Control Sold Separately
Wheelbase 10.35" (263 mm)
Charger Sold Separately
Differential Gear Diffs
Receiver Sold Separately
Shock Type Oil-Filled, Coil-Over
Approximate Assembly Time 10-15 Hours
Scale 1/10
Vehicle Size Standard
Product Width 9.3" (236 mm)
Radio Sold Separately
Product Weight 2.17 lbs (985g) without battery
Tire Tread Off-Road
Vehicle Type Buggy
Ball Bearings Full Ball Bearings
Chassis Aluminum Main Frame
Completion Level Kit
Drivetrain 2WD
Drive Type Forward/Brake/Reverse
Product Height 5.7" (145 mm)
Battery Sold Separately
Gear Ratio Gear Ratio H setting 6.9:1 L setting 8.3:1 (2 combinations included)
Motor Size 540-Size
Product Length 15.7" (399 mm)
Steering Type 2WS
Power Type Electric
Servos Sold Separately
