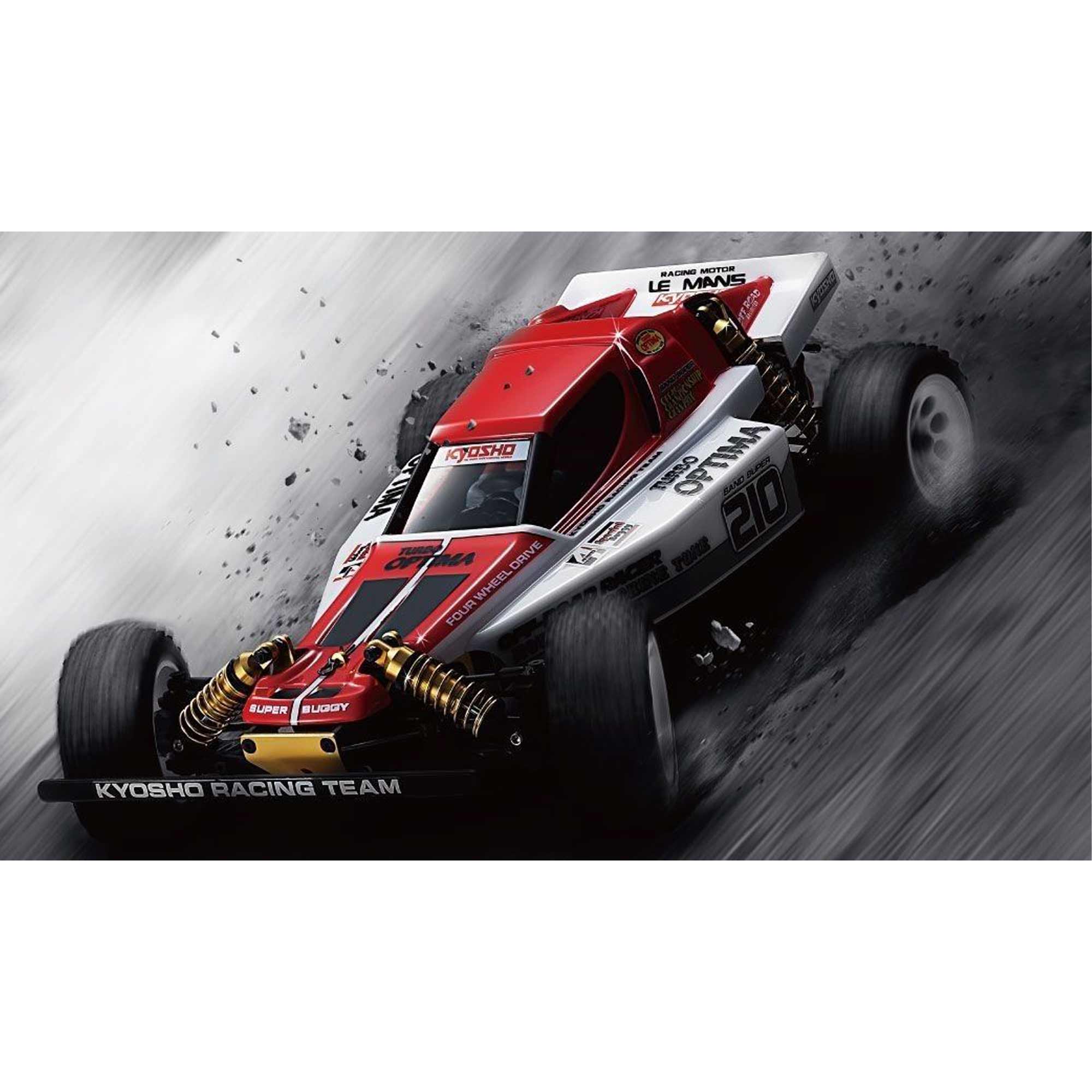

1/10 Turbo Optima Gold 4X4 Off-Road Buggy Kit

Item No. KYO30619
Discontinued
Brand Logo
4.3 out of 5 Customer Rating

1/10 Turbo Optima Gold 4X4 Off-Road Buggy Kit

Item No. KYO30619
This Item is No Longer Available
Selected Store

Product Details

After the dynamic impact of the Optima was felt across the R/C racing scene, the Turbo Optima launched in 1986 as the strongest machine in the series.
Key Features
  • Faithful Reproduction The Original Turbo Optima
  • Equipped With FRP Radio Plate
  • Three Toe Angle Settings ( 0°, 1°, 2°)
  • Modernized Aluminum Hexagon Wheel
  • Equipped With Metal Counter Gear
icon-box
In The Box
  • (1) 1/10 Turbo Optima Gold 4WD Buggy Kit
  • (1) Decal Sheet
  • (1) Instruction Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Motor
  • (1) Electronic Speed Control
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 Turbo Optima Gold 4X4 Off-Road Buggy Kit

Introduction

Until now. In addition to large diameter tires, large capacity pressure shocks, front and rear stabilizers and Le Mans 240S motor, the immortal Turbo Optima has modernized for 8.4V power and makes its debut as the 7th model of the vintage series. Key components of the Turbo Optima chassis have been redesigned to meet the demands of modern racing conditions and power sources, and share DNA with the Optima and Javelin. The new Turbo Optima is not simply a reproduction of the original and includes gold anodized parts that were optional upgrades on the original, gold shocks with dial adjustment of chassis height and new modern block pattern tires. Higher specs and design features deliver modern performance standards and visual impact that captures the magic of the original.

Features

  • While a faithful reproduction the original Turbo Optima, each key performance component has been revised for compatibility with modern power sources.
  • 4WD belt drive. Pulley for chain is also included in the kit so purchase of an optional chain can change the drive system.
  • Equipped with FRP radio plate that is compatible with major brand ESC’s.
  • Three toe angle settings ( 0°, 1°, 2°) can be used by inserting resin bushes into the rear hub carrier.
  • Equipped with metal counter gear.
  • Full ball bearing specifications.
  • Includes separate helmet and polycarbonate body.
  • Battery stays are compatible with various modern batteries and secured with hook and loop fasteners for easy removal of battery.
  • Hex screws used for assembly provide secure construction.
  • Modernized aluminum hexagon wheel hubs can be securely fixed with set screws.

KyoshoTurbo Optima



Gold Anodized Aluminum
Gold Anodized Aluminum

Simple design of the aluminum backbone-style chassis realizes high rigidity. A total of 15 key gold anodized aluminum components that were optional upgrades in the original such as main chassis, shock stay, and motor guard are included as standard.



Aluminum Chassis
Aluminum Chassis

6061T6 aluminum alloy is used in the main chassis, shock stays and plates for superior strength and corrosion resistance. Countersunk screws reduce the number of nuts used and produce a flat finish. Gold anodized under guard is also included as standard.



Alloy Gears
Alloy Gears

Sintered alloy 48 pitch gears combined with high impact nylon gears and newly added slipper clutch will cope with the current power plants.



Slipper Clutch
Slipper Clutch

The gearbox is equipped with a slipper clutch that protects the drive system from sudden load changes such as jump landings and is easily adjustable for compatibility with various surface conditions.



Aluminum Oil Shocks
Aluminum Oil Shocks

Aluminum oil shocks modernized with dial adjustment of chassis height while recreating the style of the original. Refined shock absorber setting.



Wishbone Suspension
Wishbone Suspension

Reliable movement and long stroke of the double wishbone suspension with reinforced arms increases control feel.



Suspension Stabilizers
Suspension Stabilizers

Stabilizers are equipped on front and rear to deliver sharp performance through suppression of chassis roll through corners.



Optima Body Design
Optima Body Design

The Turbo Optima’s wider body design (than the Optima) for compatibility with the 8.4V battery of 1986 has been accurately recreated. The packaging color scheme can be reproduced with the masking sheet and Decals included.



Wheels and Tires
Wheels and Tires

While still following the style of the original, the new Turbo Optima features modern block pattern tires for evolved running performance. Stylish large diameter (50mm/2-inch) wheels have evolved with a one-piece design and are included as standard.



Product Specifications

Battery Sold Separately
Body Polycarbonate
Charger Sold Separately
Completion Level Kit
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio 9.24 : 1
Motor Size 540-Size
Power Type Electric
Product Height 4.72441" (120 mm)
Product Length 15.5512" (395 mm)
Product Width 9.6063" (244 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Oil-Filled, Coil-Over
Speed Control Sold Separately
Steering Type 2WS
Suspension Independent
Vehicle Size Standard
Vehicle Type Buggy
Wheelbase 10.2362" (260 mm)
