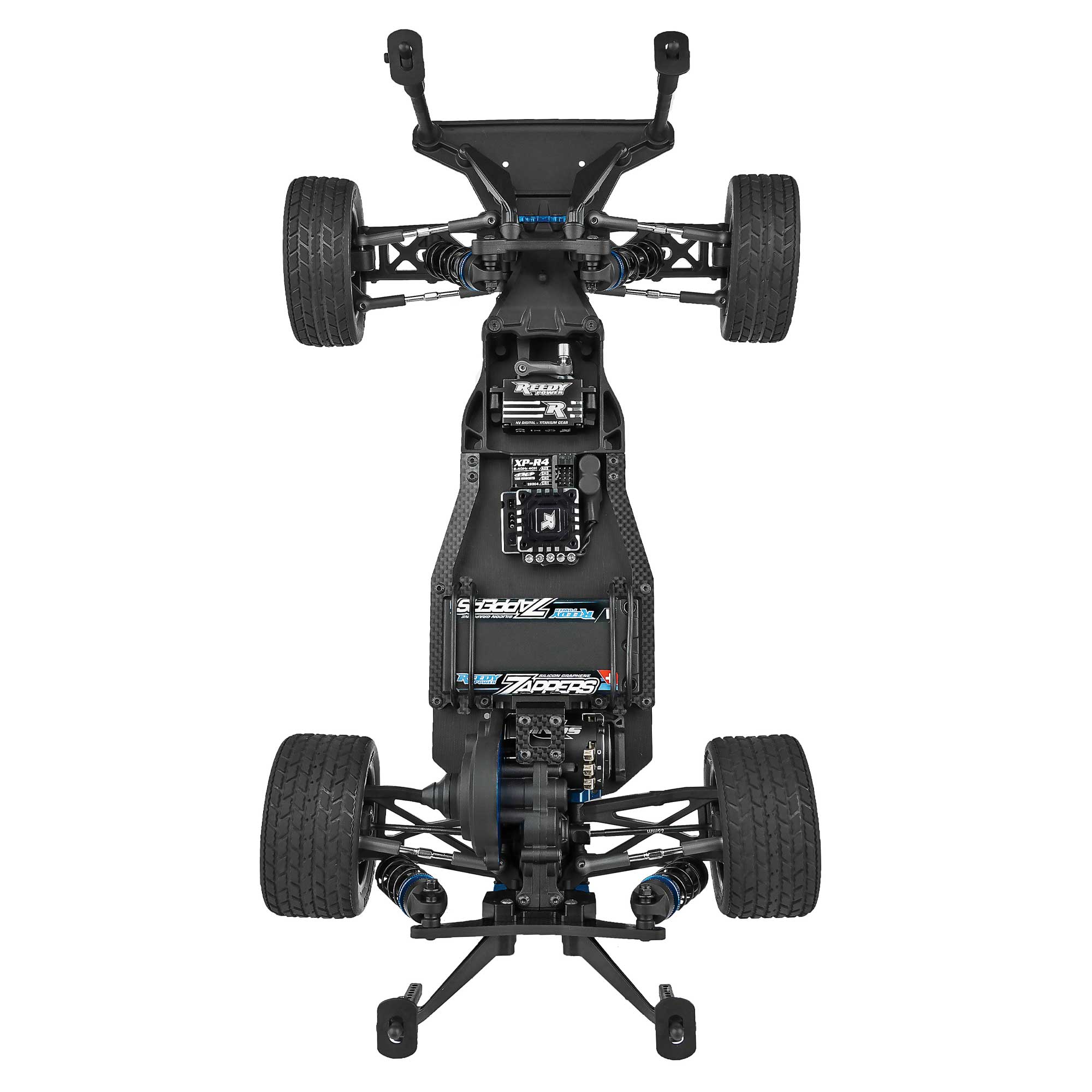

1/10 SR10M 2WD Dirt Oval Team Kit

Item No. ASC70032
Discontinued
Brand Logo
5 out of 5 Customer Rating

1/10 SR10M 2WD Dirt Oval Team Kit

Item No. ASC70032
This Item is No Longer Available
Selected Store

Product Details

Street Stock Dirt Oval Racing--All the dirt, clay and pavement-racing excitement in a 1:10 scale RC car!
Key Features
  • Updated Mid-Motor Rear Carbon Fiber Shock Tower
  • Heavy-Duty Sealed Gear Differential
  • Adjustable Suspension Geometry
  • Metric Hardware Throughout
  • Carbon Fiber Chassis Side Braces
icon-box
In The Box
  • (1) 1/10 SR10M Dirt Oval Team Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) 1/10 Electronic Speed Control
  • (1) 1/10 Electric Motor
  • (1) Standard-Size Steering Servo
  • (1) 1/10 Dirt Oval Polycarbonate Body
  • (1) Pinion Gear
  • (1) 7.4V - 7.6V Shorty Battery
  • (1) Battery Charger
  • (4) 1/10 Dirt Oval Wheels and Tires
1/10 SR10M 2WD Dirt Oval Team Kit

Overview

Often overlooked in the mainstream, dirt track racing is one of the most exciting forms of tire-scorching car racing action. Competitions are held on oval tracks with a surface of dirt or clay. With locations available throughout the United States, it’s easy to see why everyone enjoys gathering to these year-round weekly experiences.

The SR10M Dirt Oval Race Car features 24 precision ball bearings, fully adjustable suspension, vertical ball ends for roll center adjustments, 2.6:1 ratio gearbox with heavy-duty sealed gear differential, and externally adjustable V2 slipper clutch. The new Octalock spur gear and 11mm Octalock pads are used for maximum consistency and higher torque capacity. Look for a dirt track racing event near you. All are welcome to race, run for fun, or just enjoy the action. The time for tearing up the oval track is now!

Features

  • Updated mid-motor rear carbon fiber shock tower for oval
  • New carbon fiber chassis side braces
  • Updated rear toe block for dirt oval racing
  • Rear CVA drive shafts for more reliability
  • Durable and lightweight aluminum top shaft
  • Rugged steel turnbuckles for adjustable camber and front toe-in
  • 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch
  • Adjustable suspension geometry
  • Vertical ball ends for roll center adjustments, front and rear
  • Metric hardware throughout
  • 24 precision rubber-sealed ball bearings
  • Impact-absorbing front and rear bumpers
  • Fully adjustable front and rear body mounts
  • Many Factory Team options already available!
  • New mid-motor low center-of-gravity G10 fiberglass chassis with updated O-Ring battery straps that accommodate 2S LiPo “shorty” battery packs

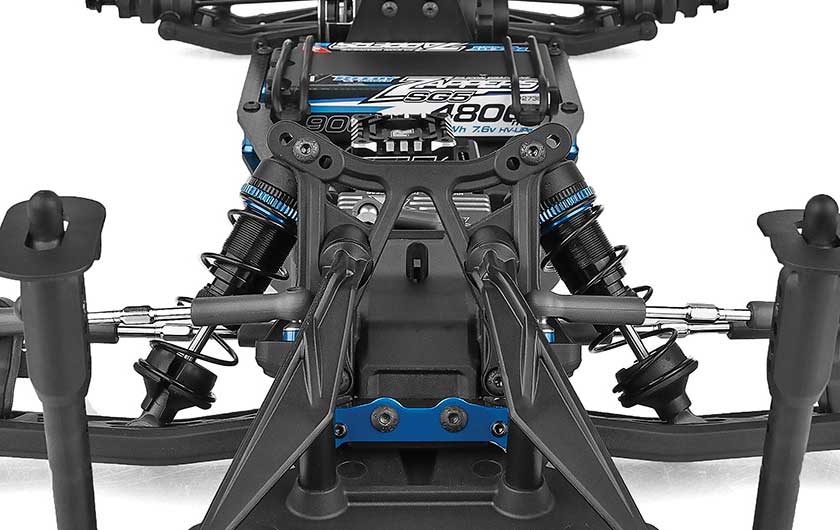

Suspension
Adjustable Suspension Geometry
Ball Ends
Vertical Ball Ends For Roll Center Adjustments

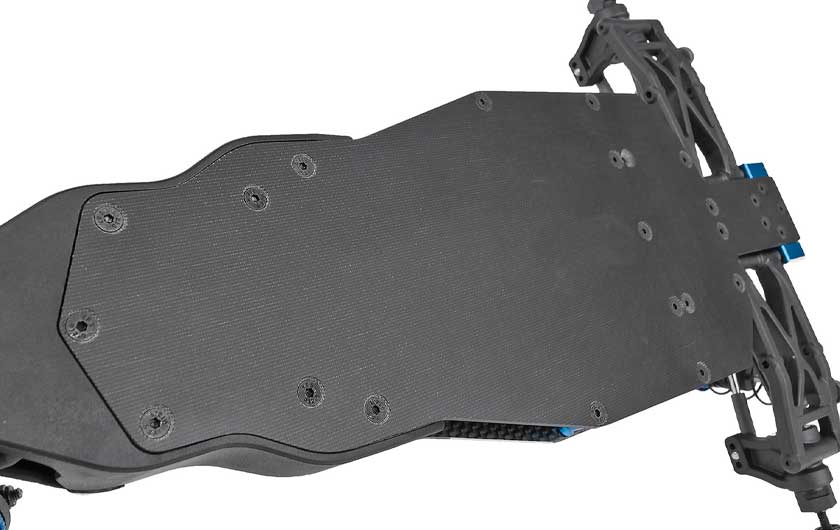

Low Center of Gravity
Mid-Motor Low Center of Gravity G10 Fiberglass Chassis

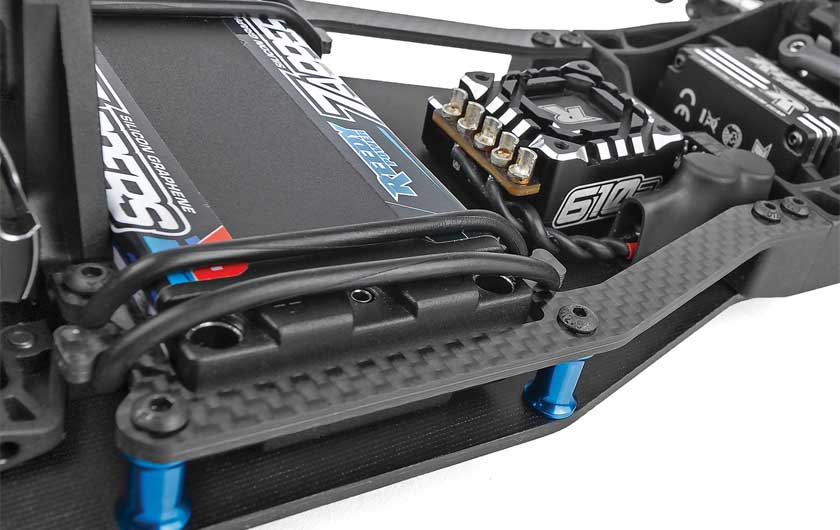

Chassis
New Carbon Fiber Chassis Side Braces

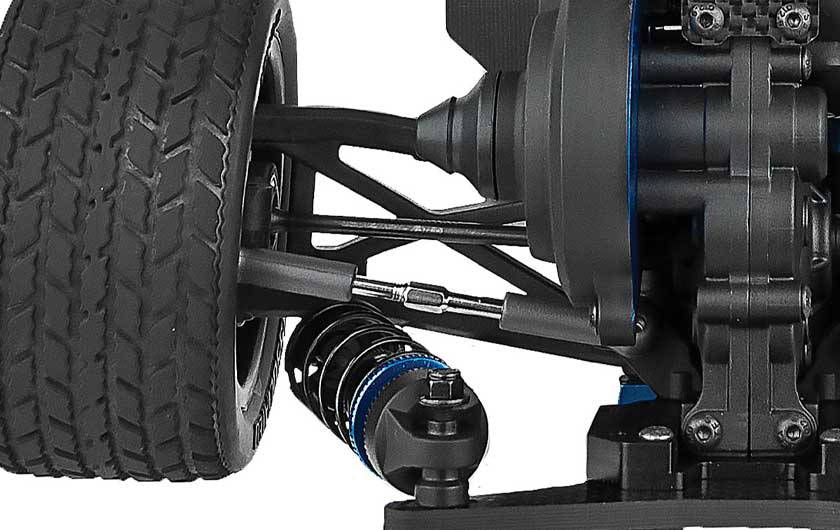

CVA Driveshafts
Rear CVA Driveshafts For More Reliability

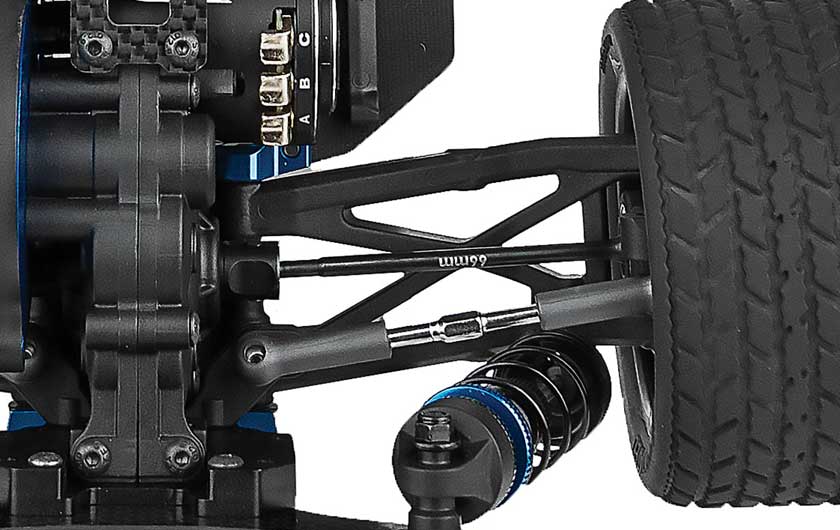

Tow Block
Updated Rear Tow Block For Dirt Oval Racing

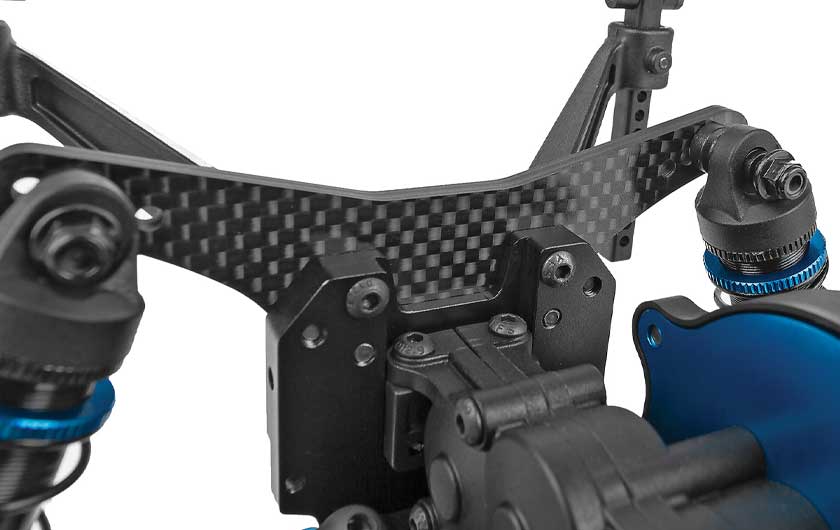

Shock Tower
Updated Mid-Motor Rear Carbon Fiber Shock Tower

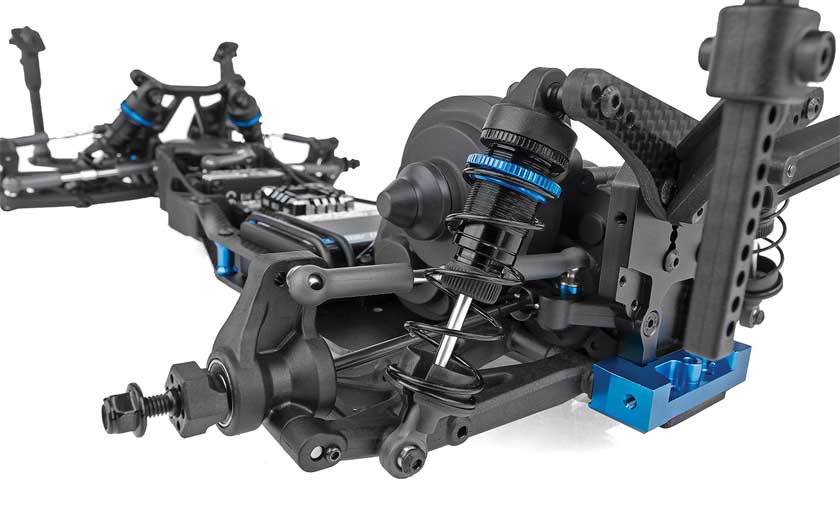

Shocks
Aluminum 12mm Coil-Over Shocks

Product Specifications

Battery Sold Separately
Body Sold Separately
Charger Sold Separately
Chassis CG10 Fiberglass Chassis
Completion Level Kit
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 2WD
Gear Ratio 2.6:1
Manufacturer # 70032
Power Type Electric
Product Length 21.1" (536 mm)
Product Weight 3.14lbs (1424g)
Product Width 9.8" (249 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Aluminum Shocks
Speed Control Sold Separately
Suspension Independent Suspension
Vehicle Size Standard
Vehicle Type Oval
Wheelbase 10.9" (277 mm)
