Discontinued
Brand Logo
5 out of 5 Customer Rating

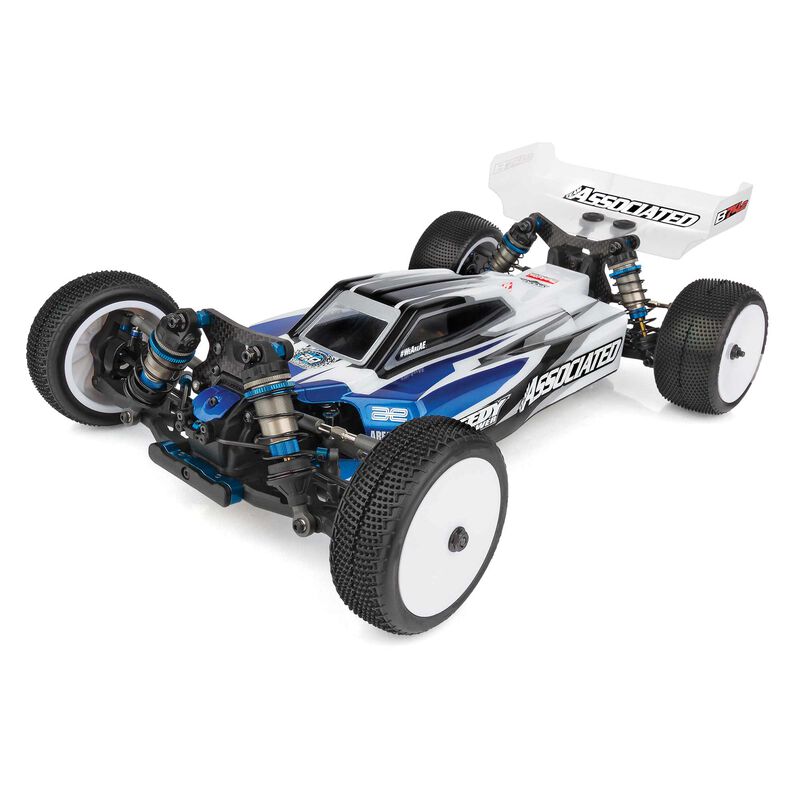

1/10 RC10B74.2 4X4 Electric Buggy Team Kit

Item No. ASC90036

Product Details

As tires, motors, batteries, and tracks evolve, Team Associated adapts and improves with every iteration of the RC10!
Key Features
  • New Lightweight Molded Gearboxes Front And Rear
  • New 13mm Big-Bore Threaded Aluminum Shocks And Springs
  • New Gull Wing Front Suspension Arms And Mating Shock Tower
  • New Battery Hold-Down System
  • New Larger 3.5mm Turnbuckles With Updated Rod End Style
icon-box
In The Box
  • (1) 1/10 RC10B74.2 Team Kit
  • (1) Instruction Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) Electronic Speed Control
  • (1) 540-Size Motor
  • (1) 7.4V-7.6V 2S Shorty LiPo Battery
  • (1) Battery Charger
  • Tools For Build
  • Polycarbonate Paint For Body
1/10 RC10B74.2 4X4 Electric Buggy Team Kit

Champions by Design

The engineers at Team Associated's Area 51 set out to extract more performance from the RC10B74 4WD buggy platform with the introduction of the RC10B74.2 and RC10B74.2D. Our goals were to reduce overall weight, lower the center of gravity, and improve jump and bump handling. We exceeded expectations.

Features

  • New lightweight molded gearboxes front and rear: Two fixed height front gearboxes allowing 0 and +2mm diff height options. One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm diff height options.
  • New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.
  • New gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability.
  • LTC differential gear sets are included. They reduce binding under power, giving more predictable power delivery.
  • New battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs.
  • New center bulkhead fan mount that mounts the fan above the motor for better cooling performance.
  • New -2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity.
  • +3mm aluminum steering rack for optimized bump steer at low ride heights.
  • 66mm Rear CVA drive shafts and axles for more on-power traction and more predictable driving feel.
  • For the RC10B74.2D: Center differential with 72T and 78T spur gear and 200,000 CST silicone diff fluid.
  • New larger 3.5mm turnbuckles with updated rod end style ball-cups to increase durability and reduce bind in the suspension.

Overview

The RC10B74.2 and RC10B74.2D introduce molded gearboxes front and rear, which lower the center of gravity by removing weight from high points of the car. We modified the differentials to improve rolling speed through turns and increase stability on landings, allowing the buggy to corner faster on high-grip carpet and clay tracks. The latest 13mm big bore shock technology from Team Associated is included, taking the RC10B74.2 to the next level in jump and bump handling performance. The introduction of gull wing front suspension arms and the inclusion of the LTC gear sets for the differentials make the RC10B74.2 platform easier and more predictable to drive on any track condition.

Adjustable Gearboxes
Adjustable Gearboxes

New lightweight gearboxes front and rear. Two fixed height front gearboxes and one rear gearbox with adjustable inserts.



Lower Center of Gravity
Lower Center of Gravity

New -2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity.



Larger Turnbuckles
Larger Turnbuckles

New larger 3.5mm turnbuckles with updated rod end style ball-cups to increase durability and reduce bind in the suspension.



Big-Bore Shocks
Big-Bore Shocks

New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.



Battery Hold-Down System
Battery Hold-Down System

New battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs.



Fan Mounts
Fan Mounts

New center bulkhead fan mount that mounts the fan above the motor for better cooling performance



Steering Rack
Steering Rack

+3mm aluminum steering rack for optimized bump steer at low ride heights.



Center Slipper Clutch
Center Slipper Clutch

2-pad high-load, high-capacity center slipper clutch with LCF pad material.



LTC Differential
LTC Differential

LTC differential gear sets are included. They reduce binding under power, giving more predictable power delivery.



Front Suspension
Front Suspension

New gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability.



Product Specifications

Battery Sold Separately
Charger Sold Separately
Completion Level Kit
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Internal Gear Ratio 2.50:1
Power Type Electric
Product Height Varies
Product Length 15.55" (395 mm)
Product Width Varies
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Speed Control Sold Separately
Vehicle Type Buggy
