Product Details

The all-new XV-02 Pro chassis kit is Tamiya’s second modern era, purpose built, 4WD Rally machine!
Key Features
  • Comes with rally block tires and wheels.
  • Suspension arms and front uprights are based upon the XV-01 chassis kit.
  • Long aluminum dampers are employed at front and rear.
  • Features a longitudinal battery pack position in the center-left for optimum balance.
  • The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
icon-box
In The Box
  • (1) XV-02 PRO Chassis Kit
icon-how-to
Needed to Complete
  • (1) 2-Channel Radio System
  • (1) Motor
  • (1) ESC
  • (1) Standard Servo
  • (1) 7.4v Battery
  • (1) Charger
  • (1) Rally Body
  • Polycarbonate Paint for Body
1/10 R/C XV-02 PRO Chassis Kit

Overview

The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!

XV-02 Chassis at a Glance

  • Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.

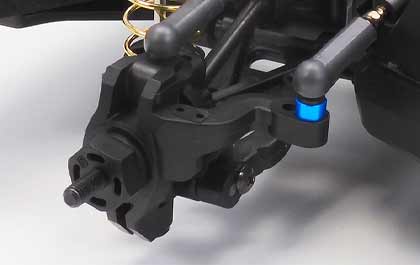

  • Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
  • The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.

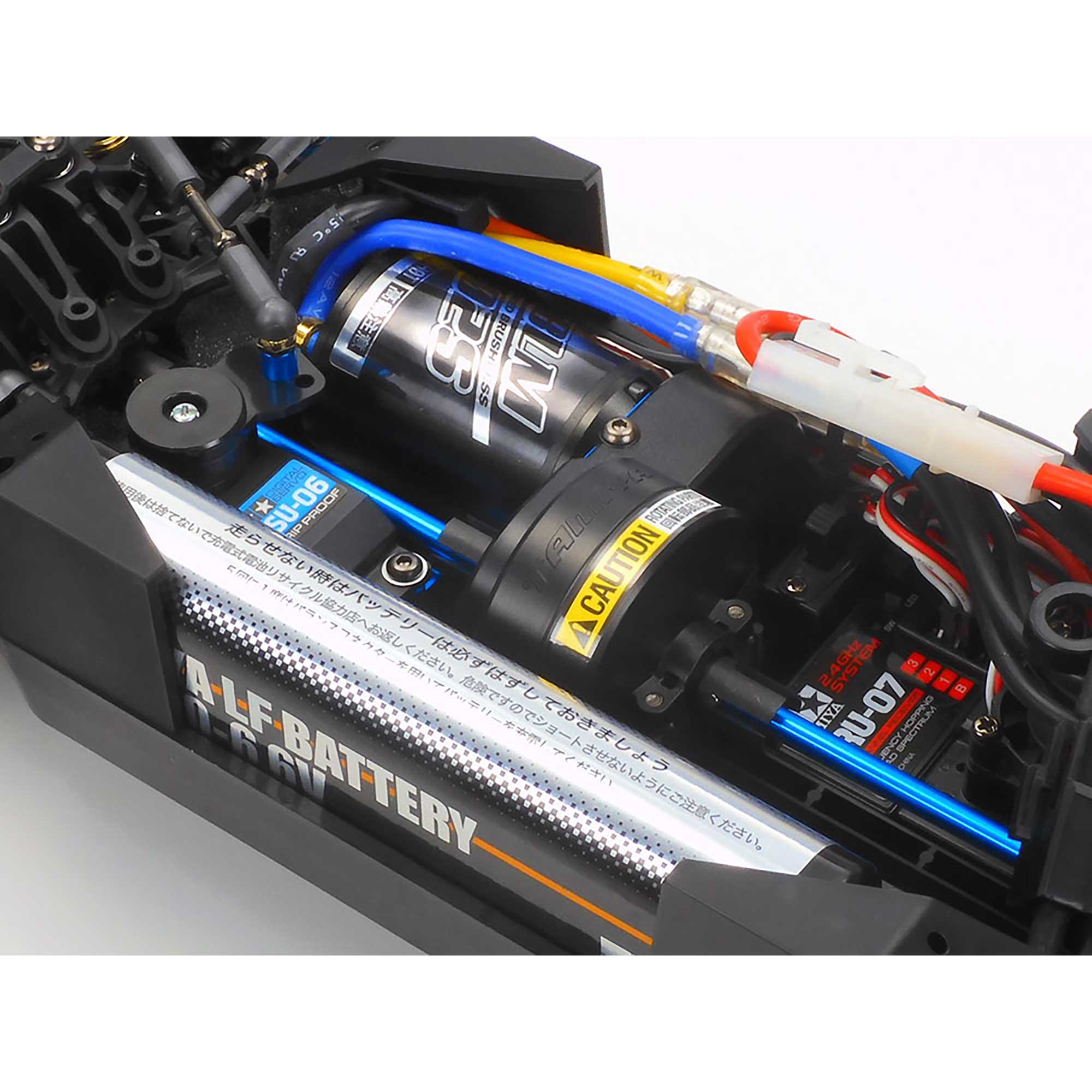

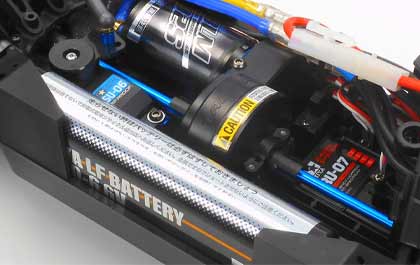

  • Features a longitudinal battery pack position in the center-left for optimum balance.

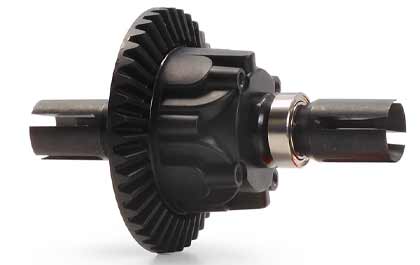

  • Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance. (Over-Drive and Under-Drive Adjustment)

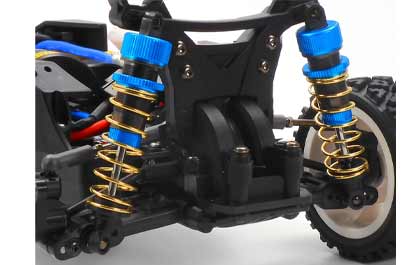

  • Long aluminum dampers are employed at front and rear.
  • A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
  • Suspension arms and front uprights are based upon the XV-01 chassis kit.

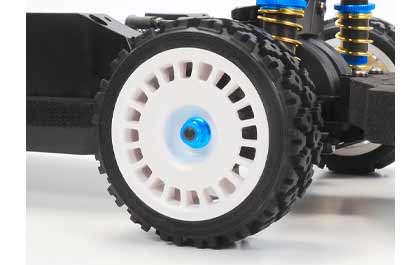

  • Comes with rally block tires and wheels.

Product Specifications

Battery Sold Separately
Gear Ratio 9.58: 1
Product Length 14.4882" (368 mm)
Radio Sold Separately
Suspension 4-wheel double wishbone
Ball Bearings Includes full ball bearings
Chassis Bathtub Chassis, FRP Fiberglass Reinforced Plastic
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Charger Sold Separately
Differential oil-filled gear differential for both front and rear
Receiver Sold Separately
Scale 1/10
Speed Control Sold Separately
Wheelbase 10.1181" (257 mm)
Power Type Electric
Servos Sold Separately
Shock Type Aluminum cylinder long oil damper
Vehicle Size Standard
Product Width 7.08661" (180 mm)
Vehicle Type Rally Car
