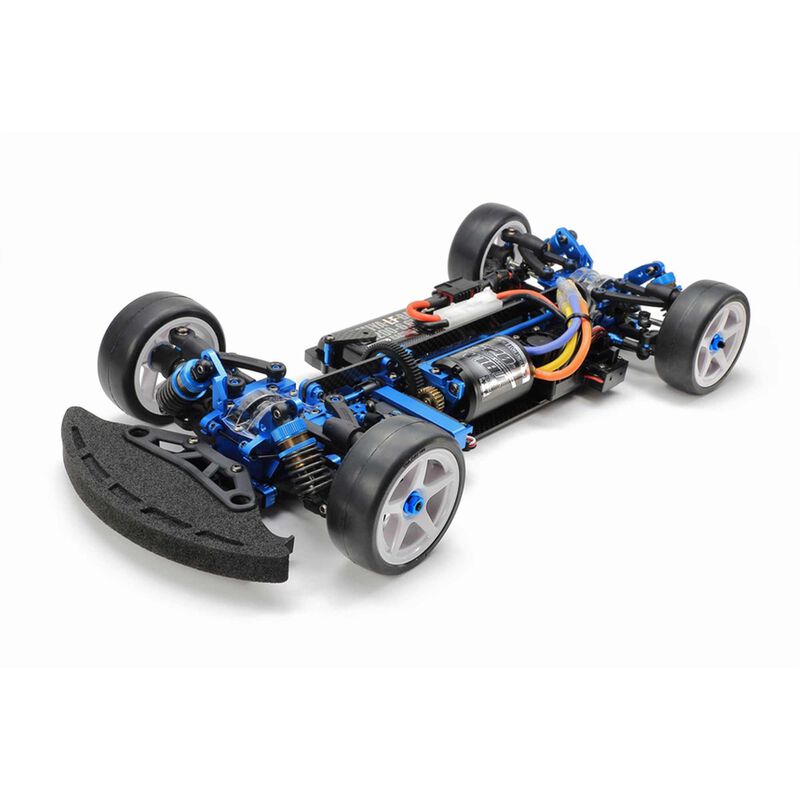

1/10 R/C Chassis Kit TB Evo 8 Kit

Item No. TAM42383
Discontinued
Brand Logo
3.7 out of 5 Customer Rating

1/10 R/C Chassis Kit TB Evo 8 Kit

Item No. TAM42383
This Item is No Longer Available
Selected Store

Product Details

Tamiya welcomes a new variant to the TB Evo. series - the fastest shaft-driven chassis produced by Tamiya - which started in the year 2000.

Introduction

With an updated chassis layout from the TB Evo. 7, its suspension features popular A-shaped suspension arms which was used for the Tamiya TA08 PRO Chassis kit. Additionally, the motor can be positioned in two locations. Do not miss this chance to get this chassis featuring efficient drive and superior controllability!

Features

  • Choose from two types of motor layout - front mid motor layout or rear mid motor layout.
  • Lower deck and vertical upper decks are crafted in carbon fiber, and ensure pitch rigidity.
  • Aluminum bulkhead and damper stay are one-piece component.
  • mm suspension balls and king-pins are combined for smooth motion.
  • The front A-shaped arm suspension employs Super Short Big Bore dampers and uses 5.8mm balls to connect top and bottom sections for superior responsiveness.
  • The rear suspension utilizes tie rods for easy adjustment of toe angle on upright side.
  • The steering linkage is affixed directly to bulkhead to limit any impact upon chassis roll.
  • Features efficient, fuss-free adjustment of motor backlash via two screws on chassis upside.
  • Highly-efficient shaft-driven 4WD is achieved with a front direct coupling and double cardan drive shafts, plus a rear gear differential unit and aluminum drive shafts.
  • Uses urethane front bumper for great aerodynamics.
  • Carbon fiber, floating R/C equipment deck attached by screws removes use of double-sided tape for maintenance.
  • Comes with a carrying case.

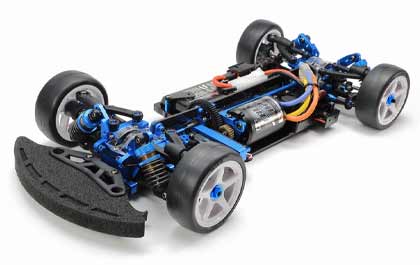

TB EVO.8 CHASSIS KIT



EVO.8 Chassis Kit
EVO.8 Chassis Kit

1/10 scale R/C shaft driven 4WD chassis assembly kit.

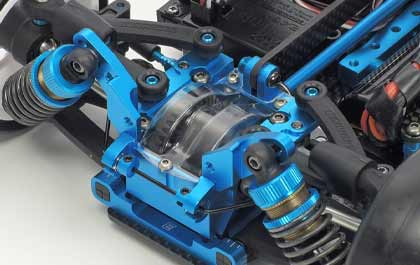

Front Suspension
Front Suspension

The front A-shaped arm suspension employs Super Short Big Bore dampers and uses 5.8mm balls to connect top and bottom sections for superior responsiveness.

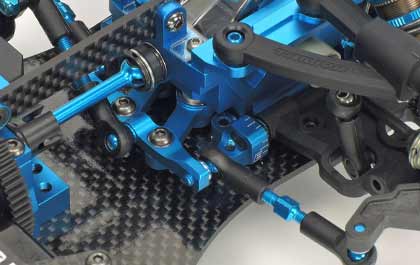

Steering Linkage
Steering Linkage

The steering linkage is affixed directly to bulkhead to limit any impact upon chassis roll.

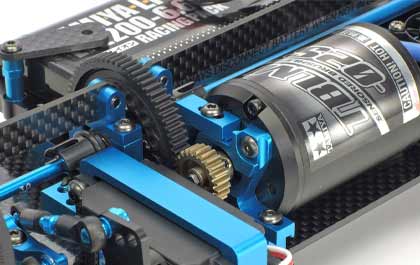

Motor Adjustment
Motor Adjustment

Features efficient, fuss-free adjustment of motor backlash via two screws on chassis upside.

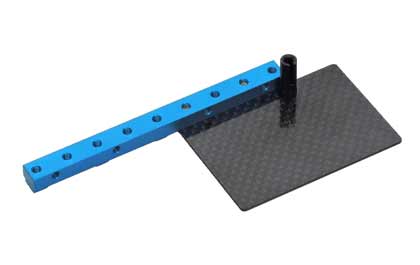

Floating Equipment Deck
Floating Equipment Deck

Carbon fiber, floating R/C equipment deck attached by screws removes use of double-sided tape for maintenance.
