1/10 Enduro Trail Truck, Sendero HD 4WD RTR
- BTA (behind the axle) steering
- Aluminum steering plates
- Integrated servo winch mount
- Threaded aluminum shock bodies
- Stealth™ X gearbox with adjustable overdrive gears
- CMS (Chassis Mounted Servo)
- Adjustable front track bar
- Universal front drive axles
- Stamped steel frame rails
- Enclosed receiver box
- 12mm wheel hexes
- Adjustable front and rear bumper mounts
- Adjustable width rock sliders
- Two battery boxes
- Aluminum motor plate
- Adjustable body posts
- Optimized ball cups for more fluid axle articulation
- Adjustable rear shock tower mount positions
- Telescopic driveshafts front and rear
- Extruded aluminum driveshaft splines
- One-piece rear axle design
- Splined front axle with adjustable caster
- Machined input pinion gear
- Reedy Power SC480X electronic speed controller
- Reedy Power high-torque 1523MG metal gear servo
- Steel servo horn
- Adjustable width rock sliders
- Box diorama
- Sendero HD high-strength polycarbonate body, cab only design with molded utility bed
- Ocho beadlock wheels
- Adjustable front injection-molded bumper
- Updated plastics
A PERFORMANCE RIG BUILT TO ENDURE. When hitting the trail, you want to do it with confidence -- and the answer is the all-new Enduro Sendero HD Trail Truck!
At the heart of the Enduro is our revolutionary Stealth(R) X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth(R) X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR).
Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.
We relocated the steering link assembly from the conventional location to behind the axle (BTA). This feature greatly improves approach angle and front-end clearance, making rough terrain much easier to handle.
The Enduro Trail Truck with Sendero body comes ready for adventure right out of the box, with performance-driven Reedy Power electronics. The all-new, ultra-smooth, and powerful 16-turn, 5-slot brushed crawler motor and Reedy Power SC480X electronic speed controller with T-plug connector supply ample power to this tough rig. Controlling the beast on the trail is our new 3-channel XP130 2.4GHz radio and Reedy Power high-torque 1523MG metal-gear servo.
With all this packed in one box, we know the Enduro Trail Truck is ready for the trail -- are you?

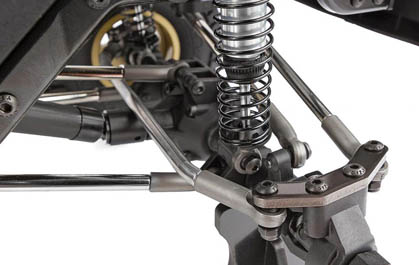

BTA STEERING & ALUMINUM STEERING PLATES
Behind-the-axle steering provides better approach angles, more clearance, and a cleaner look. Bolt-on aluminum steering plates allow for more adjustment, strength, and future modification for the user.

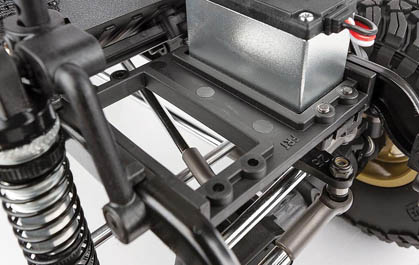

INTEGRATED SERVO WINCH MOUNT
Mounting a winch directly to the chassis is the strongest and most reliable spot on any trail rig. Positioned alongside the steering servo for overall chassis balance and weight distribution.

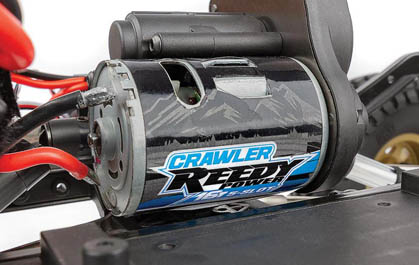

REEDY POWER CRAWLER MOTOR
The Reedy Power 5-slot 16-turn brushed crawler motor provides ample torque with a smooth power delivery. This allows for slow precise acceleration while maintaining consistent power over rough terrain and obstacles.

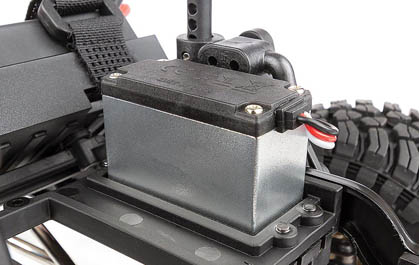

RADIO & SERVO
The XP130, 2.4GHz, 3-channel radio, and receiver, together with a Reedy Power 1523MG (metal gear) water-resistant servo pushing out 173 oz-in (12.5kgcm) of torque at 6V is the perfect setup for keeping the Enduro under control on the trail.

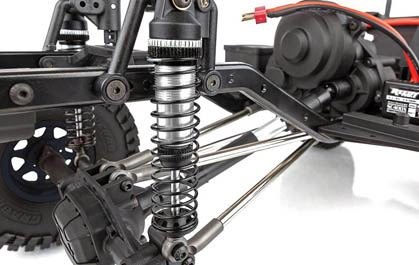

THREADED ALUMINUM SHOCK BODIES
Threaded aluminum and fluid-filled, these shocks keep the vehicle stable on the trail and retain oil even in the roughest terrain.

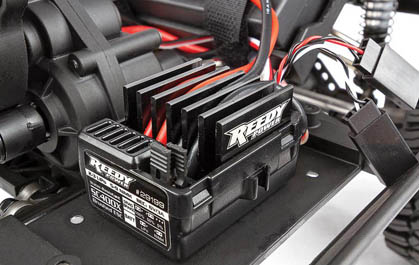

REEDY POWER ELECTRONIC SPEED CONTROLLER (ESC)
The water resistant SC480X brushed ESC is specifically programmed for crawling with proportional forward/reverse, dual auxiliary power output leads, LiPo lowvoltage cutoff protections, and T-plug connector.

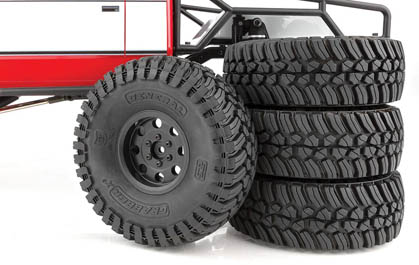

OFFICIALLY LICENSED WHEELS AND TIRES
Gripping the trail is a set of officially licensed General Grabber™ X3 tires molded in a high-performance, soft compound rubber. The General Grabber™ X3 tires are mounted on Ocho beadlock wheels. No more worrying if your RTR tires will come unglued.

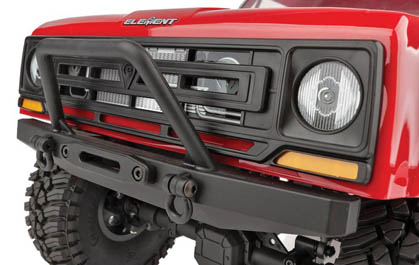

ALL IN THE DETAILS
The Sendero HD comes equipped with a high-strength polycarbonate body that has been pre-painted to look fresh off the showroom floor. The Sendero HD was designed for both looks and function, featuring a cab-only design with molded utility bed for cargo, injection-molded compact bumper, windshield wipers, folding mirrors, updated sliders, and front grill with working LEDs.
|Approximate Assembly Time||No assembly required|
|Body||Painted polycarbonate cab, molded utility bed|
|Brakes||Integral with ESC|
|Chassis||Stamped steel rails|
|Shock Type||Oil-filled, threaded aluminum body|
|Vehicle Type||Rock Crawler|
|Wheelbase||12.3" (312 mm)|
