This Item is No Longer Available
Selected Store

Product Details

This limited-edition version of the Astute 2022 (Item 58697) comes with a pre-painted, and pre-cut body. It’s ideal for new and veteran hobbyists who want to get to the build process of the chassis while not having to worry about painting the body!
Key Features
  • Limited Edition!
  • Polycarbonate Body Comes Pre-Painted In RED And Is Pre-Cut
  • Ribbed Front And Rear Square Spike Tires Facilitate Stability And Great Grip
  • Newly Designed Star Dish Design Front Wheels Are Attached By Hex Hubs
  • 4-Wheel Double Wishbone Suspension System Uses CVA Oil Dampers For Supple Performance
icon-box
In The Box
  • (1) 1/10 RC Astute 2022 Kit
  • (1) Body Sticker Sheet
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) 2-Channel Radio System
  • (1) Electronic Speed Controler
  • (1) 540-Size Motor
  • (1) Standard Size Steering Servo
  • (1) 7.2v-7.4v Battery
  • (1) Battery Charger
  • Tools for Build
1/10 Astute TD2 2WD Off-Road Buggy 2022, Painted Body (Limited Edition)

TD2 Chassis At A Glance

The new TD2 chassis is based around the TD4 chassis. Just like the TD4 machine, it employs a front inboard suspension layout which offers exceptionally slim, low-profile form. Its front suspension arms have a skid angle of 25 degrees, for amazing ground-hugging and stable performance, plus CVA oil dampers to allow smooth suspension movement. Furthermore, the chassis is based on a one-piece monocoque frame, uses the same ball differential as the ones used on the TD4 chassis, plus full ball bearings are used throughout the driveline. The battery pack is positioned transversely and positioned to the rear. Finally, a midship transverse motor layout with 3 gears connecting it to the drivetrain provide optimum balance and improved performance.

Features

  • Polycarbonate body comes pre-painted in RED and is pre-cut
  • Ribbed front and rear square spike tires facilitate stability and great grip
  • Newly designed star dish design front wheels are attached by hex hubs
  • 4-wheel double wishbone suspension system uses CVA oil dampers for supple performance
  • Choose between high and low type wing stays to adjust the downforce set up of the buggy
  • Driver figure included for extra realism

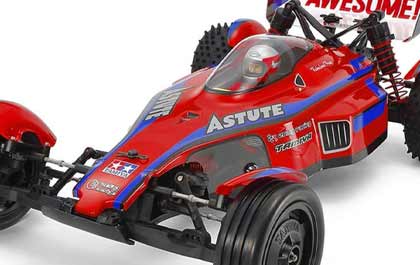

Tamiya Astute 2022



Pre-Painted Body
Pre-Painted Body

The Limited Edittion 2022 kit comes with a stylish pre-painted Astute 2022 body in red, giving you more time to drive instead of painting.

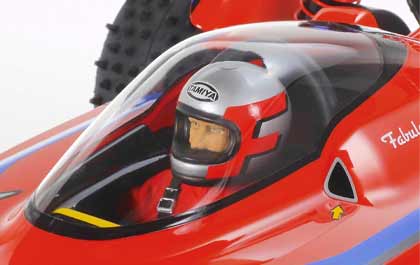

Driver Figure
Included Driver Figure

The Astute comes with a driver figure for added realism. You can choose between two different helmet styles with an open and closed visor included in the kit.

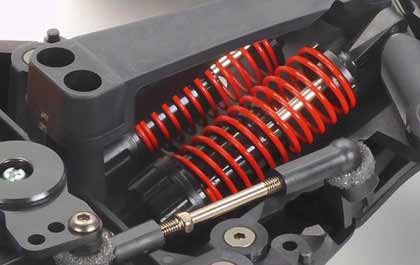

Suspension
Unique Suspension

The TD2 chassis (based upon the TD4) employs a front inboard suspension layout which offers exceptionally slim, low-profile form.

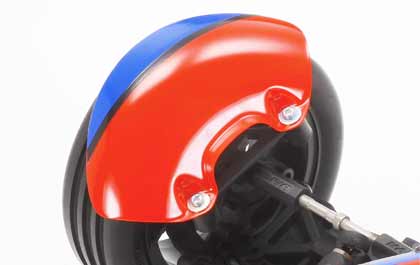

Mini Fenders
Mini Fenders

The kit includes pre-painted and pre-cut mini fenders that can be attached to the caster blocks for added detail.

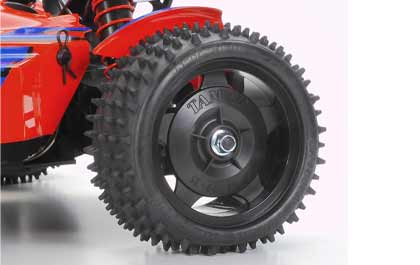

Rear Tires
Rear Square Spike Tires

The rear tires are manfactured with quare spikes, designed to penetrate the terrain and provide maximum traction when racing on loose dirt or even carpet. Mounted newly designed Star Dish wheels.

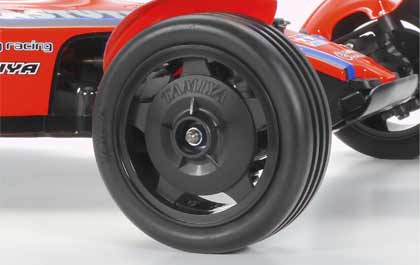

Front Tires
Ribbed Front Tires

The front tires are designed to keep the vehicle under controll whether you are taking tight turns around a corner or racing past the competition on the straight-away. Mounted newly designed Star Dish wheels.



Product Specifications

Ball Bearings Includes full ball bearings
Battery Sold Separately
Body Polycarbonate pre-painted body
Charger Sold Separately
Chassis TD-2 FRP Fiberglass Reinforced Plastic
Completion Level Kit
Drive Type Forward/Brake/Reverse
Drivetrain 2WD
Motor Size 540-Size
Power Type Electric
Product Length 15.2362" (387 mm)
Product Width 9.68504" (246 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type CVA Oil Filled
Speed Control Sold Separately
Suspension Fully Independent Double Wishbone
Vehicle Type Buggy
Wheelbase 11.1417" (283 mm)
