1/10 2006 Subaru Impreza Fazer Mk2 4x4 On-Road Touring RTR, Turquoise

Item No. KYO34473T1
Backorder
Brand Logo
4.8 out of 5 Customer Rating

1/10 2006 Subaru Impreza Fazer Mk2 4x4 On-Road Touring RTR, Turquoise

Item No. KYO34473T1
$229.99
RC Club points earned on this item shown at checkout.
Back Order
Selected Store

Product Details

Enjoy thrilling drift driving with SUBARU IMPREZA 2006 in innovative coloring!
Key Features
  • Pre-Painted Finished Body
  • Shaft Drive Full-Time 4WD Touring Chassis
  • Sealed Differential And Transmission
  • Full Ball Bearings
  • Factory-Assembled Readyset Package
icon-box
In The Box
  • (1) 1/10 2006 Subaru Impreza Fazer Mk2 RTR
  • (1) Syncro KT-231P+ Transmitter
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger

Introduction

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 274mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Features

  • Pre-painted finished body with Kyosho's original coloring with beautiful gradation and flashy colors that are conscious of the drift scene.
  • On the side of the body, the number 60 is placed to commemorate the 60th anniversary of Kyosho.
  • The resin drift tires that have both control performance and slide performance are equipped with 5-spoke racing wheels with deep rims that are conscious of the drift scene.
  • In the initial setting, the vehicle height is raised so that troubles due to gaps can be avoided.
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
  • Full ball bearings that reduce drive loss equipped throughout the drive system.
  • Features KS202W steering servo.
  • Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
  • Shaft drive full-time 4WD touring chassis.
  • Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale.
  • Uses Hex head button or countersunk screws with in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools.
  • Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports from 29T to 37T.
  • Performance can be further enhanced by installing various optional parts.

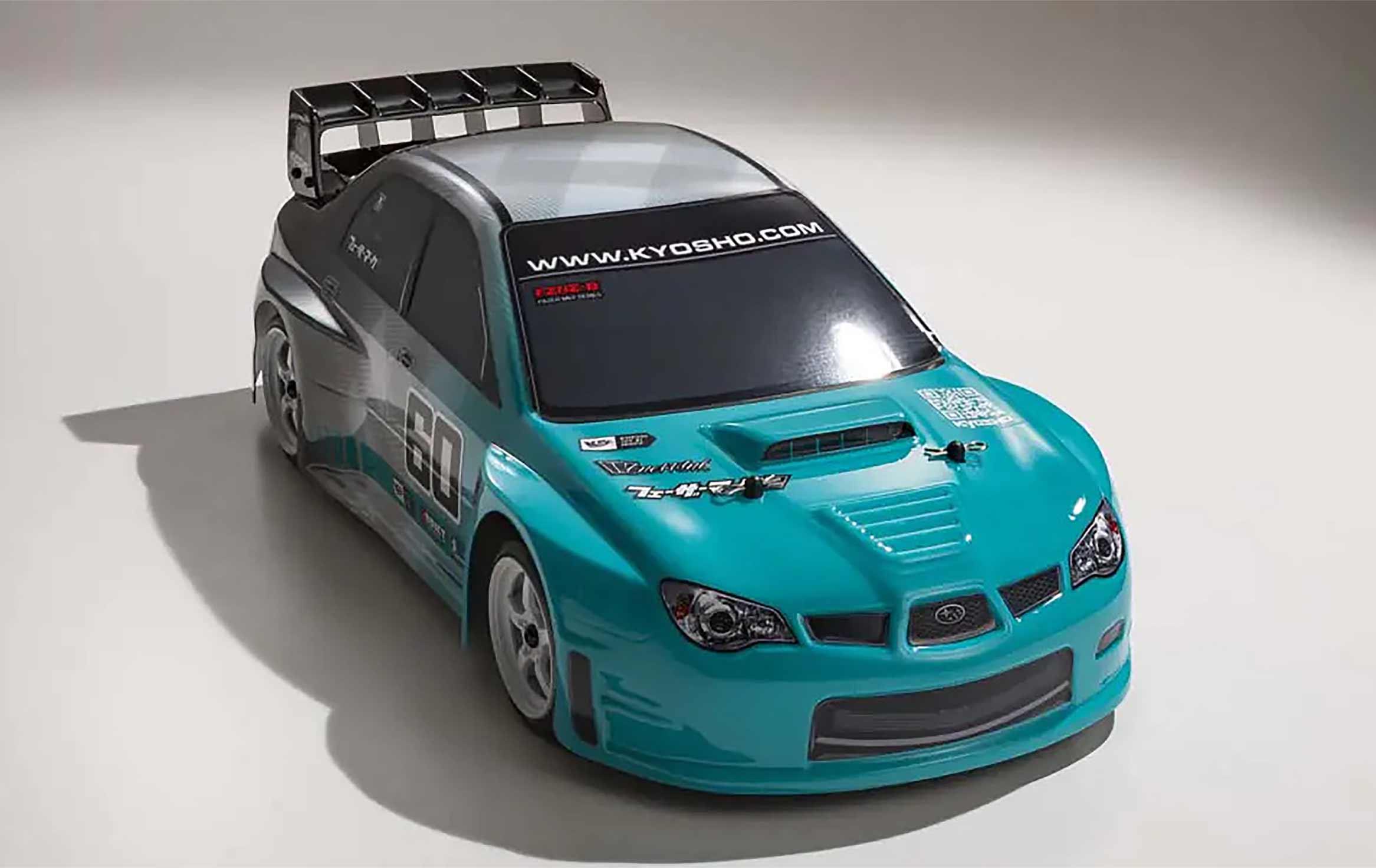

2006 Subaru Impreza
2006 Subaru Impreza

Japan’s renowned Subaru introduced this model to compete in the 2006 World Rally Championship (WRC). Based on the GDB type Impreza nicknamed Hawkeye, this model has Kyosho's original graphics with imagining a drift scene.

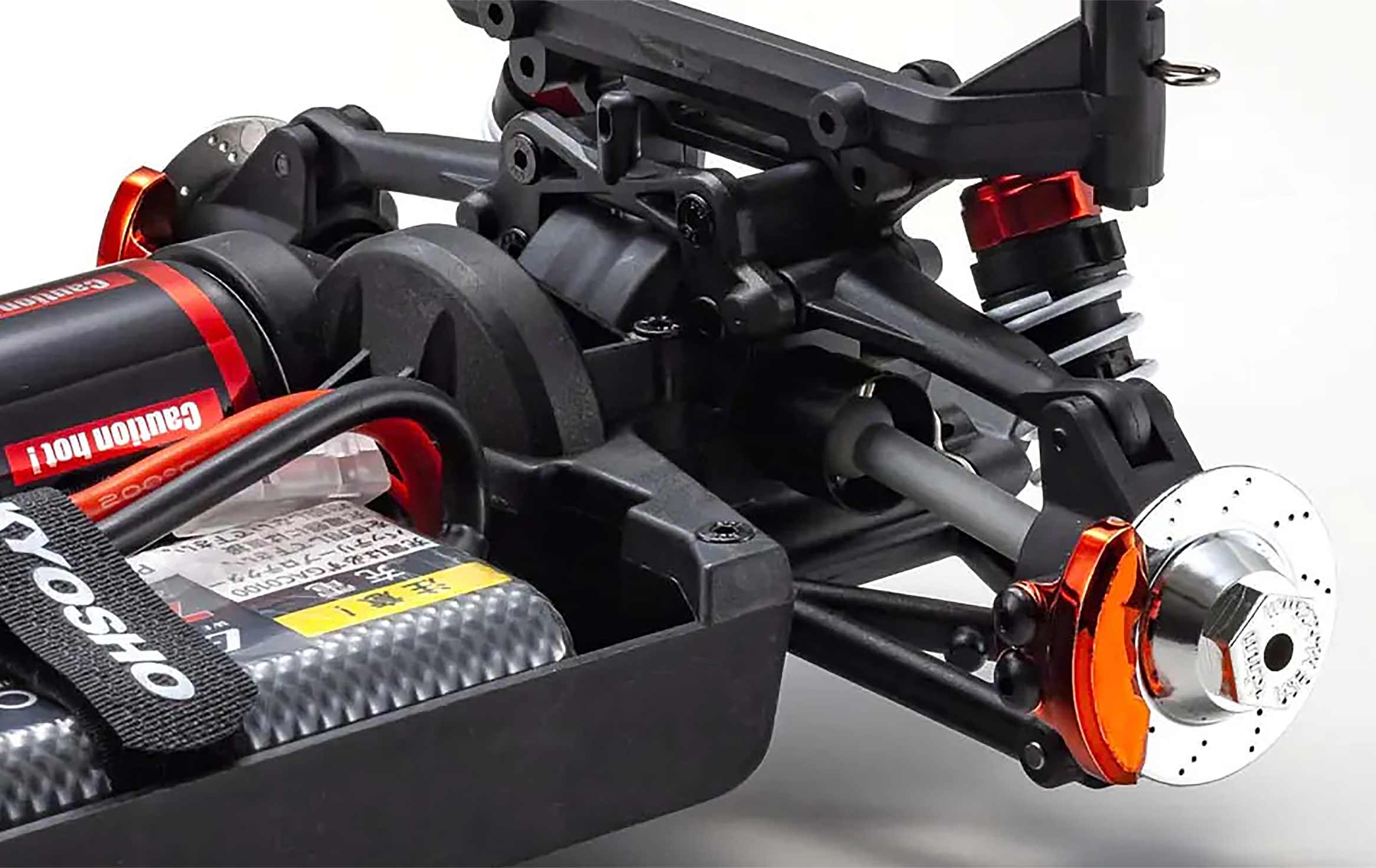

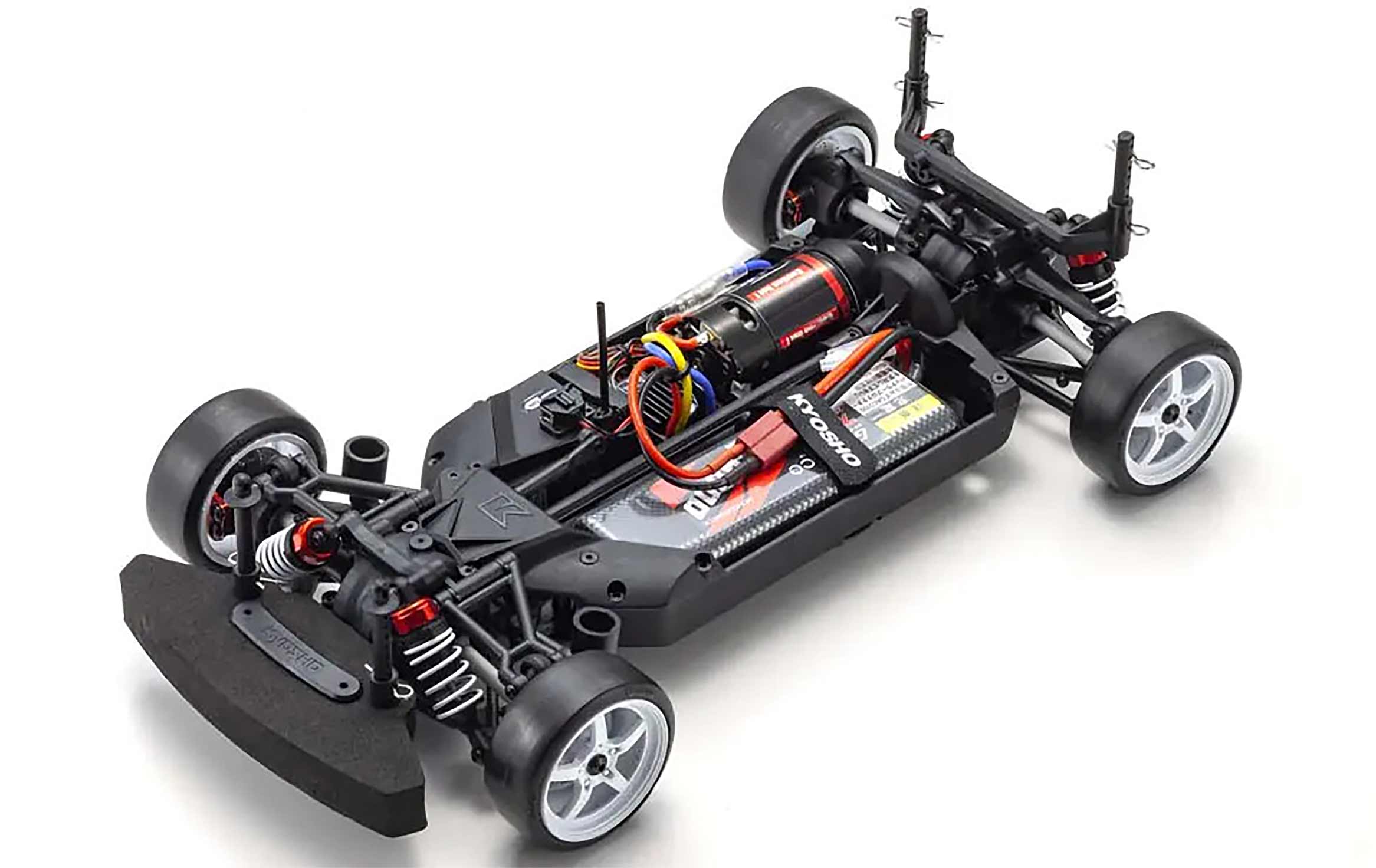

Fazer Mk2 Chassis
Fazer Mk2 Chassis

Chassis realizes a low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

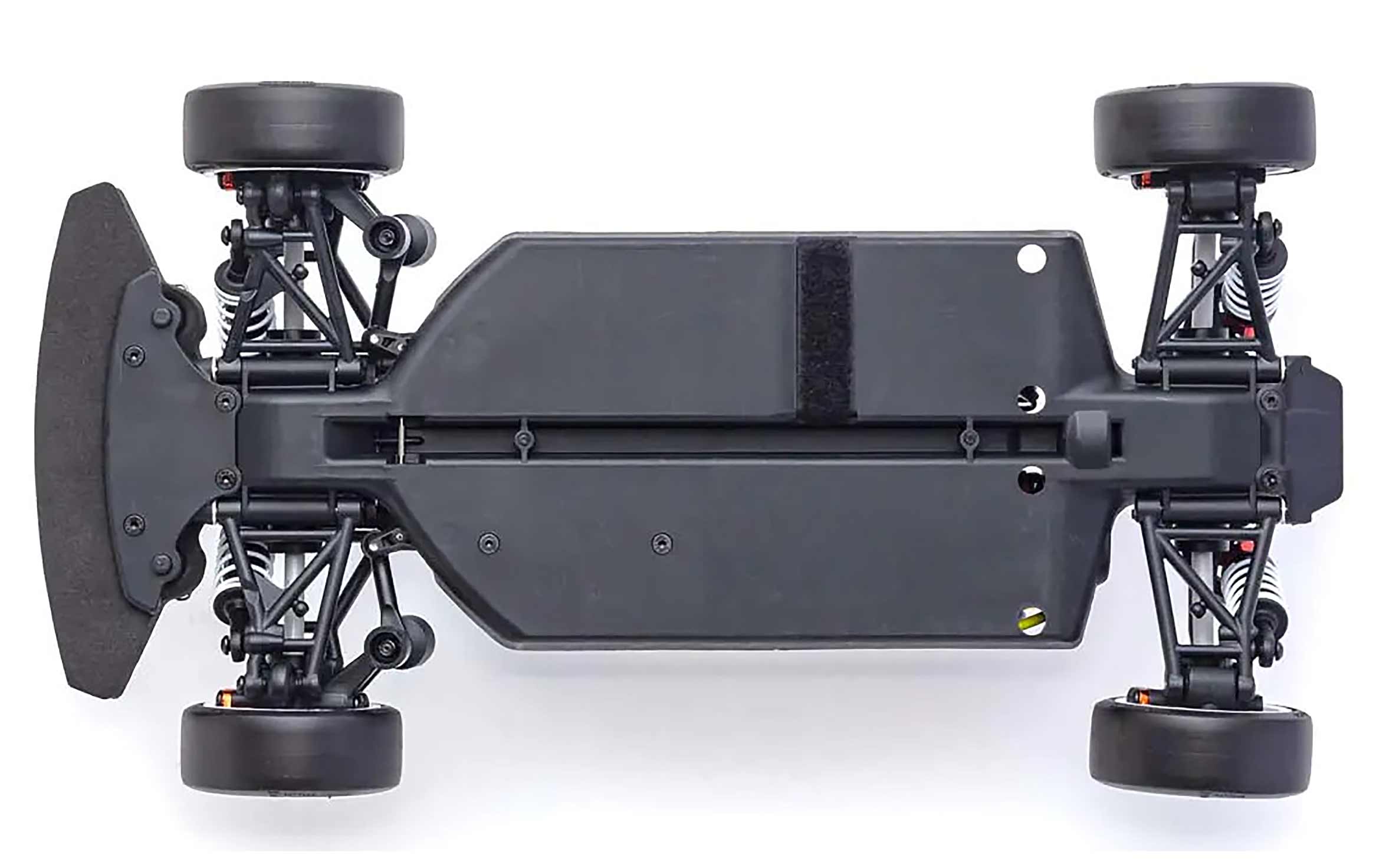

Simplified Chassis
Simplified Chassis

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

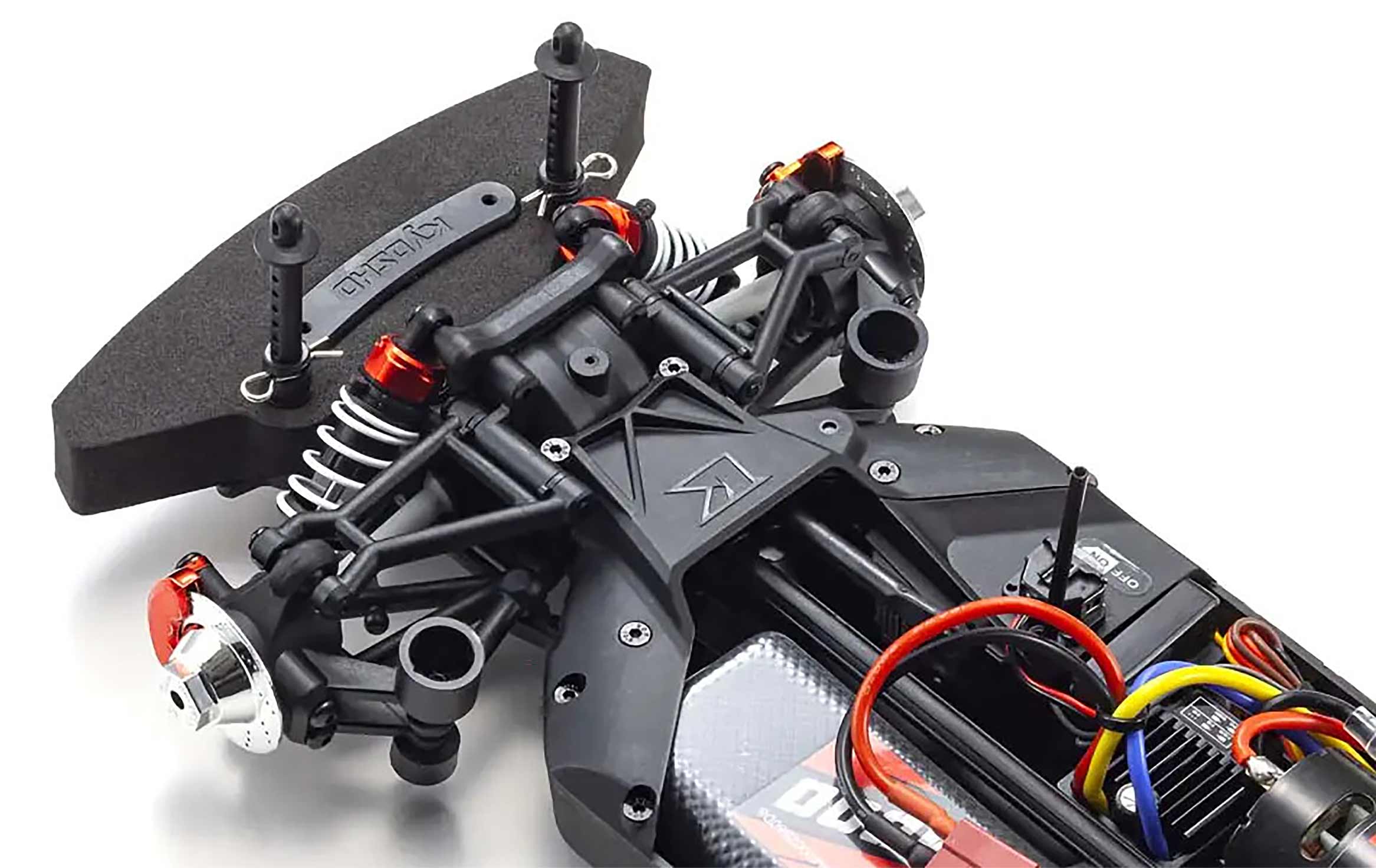

Optimised Handling
Optimised Handling

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.



Disc Brakes
Disc Brakes

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

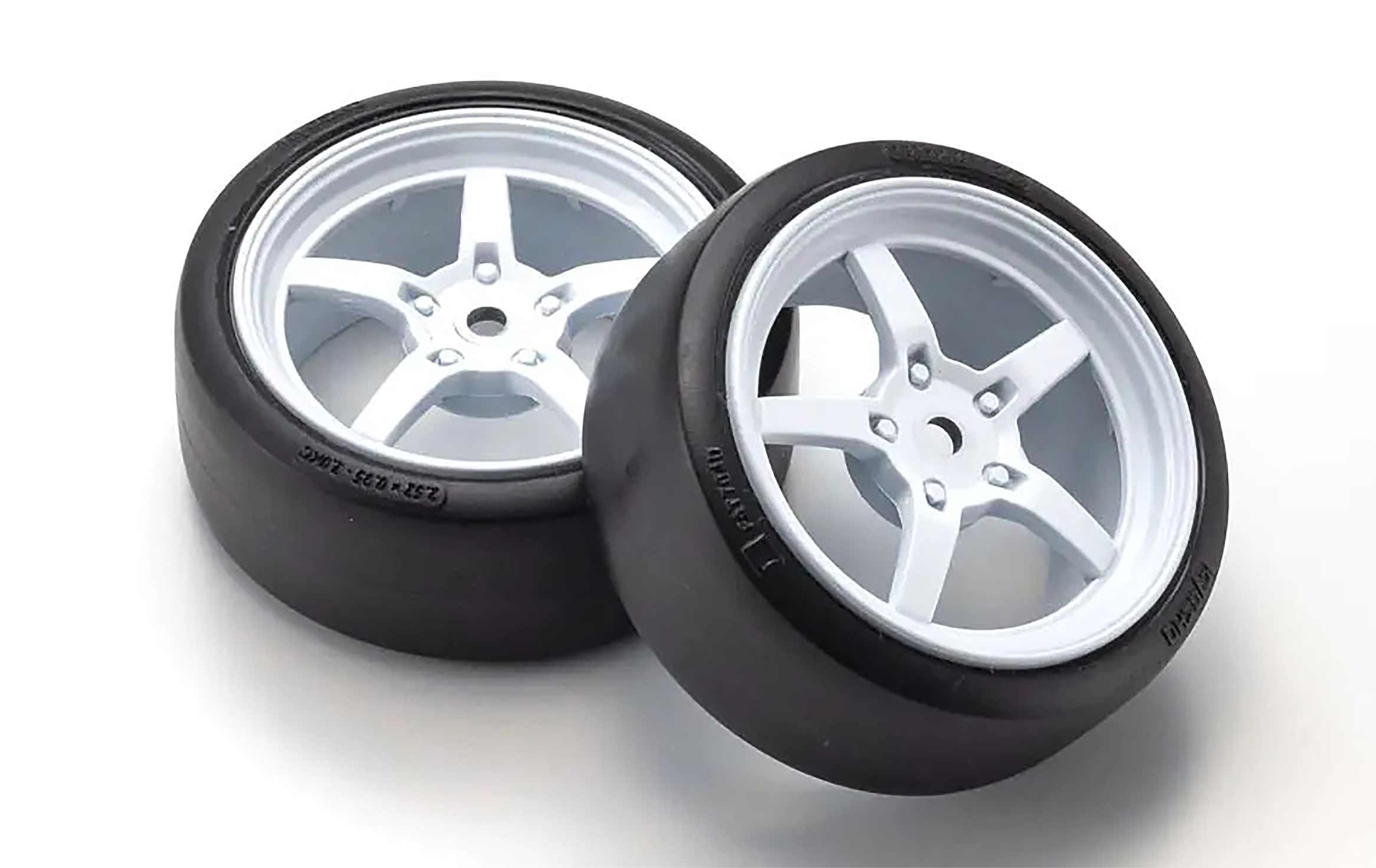

Drift Tires
Drift Tires

The resin drift tires that have both control performance and slide performance are equipped with 5-spoke racing wheels with deep rims that are conscious of the drift scene.



Product Specifications

Manufacturer # 34473T1
Product Weight 58.20 oz (1650g)
Vehicle Type On-Road
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Oil-Filled Shocks
Front Track 6.85 in (174mm)
Inner Tire / Outer Wheel Diameter 2.4 in
Product Width 8.07" (205 mm)
Radio Included
Power Type Electric
Servos Included
Ball Bearings Full Ball Bearings
Chassis Fazer Mk2 4x4
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 5.51" (140 mm)
Motor Type Brushed
Rear Track 6.85 in (174mm)
Speed Control Included
Wheelbase 10.23" (260 mm)
Approximate Assembly Time Fully Assembled
Body Pre-Painted Polycarbonate
Scale 1/10
Battery Included
Gear Ratio 6.54:1
Product Length 17.95" (456 mm)
Suspension Independent Suspension
