Discontinued
Brand Logo
5 out of 5 Customer Rating

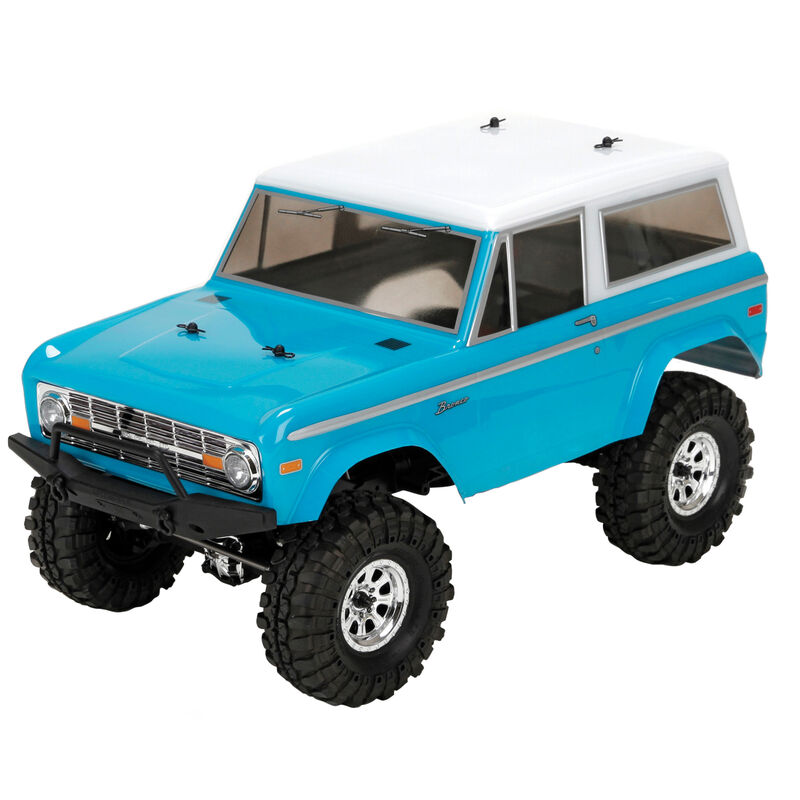

1/10 1972 Ford Bronco 4x4 Ascender Brushed RTR

Item No. VTR03031

Product Details

Key Features

  • Ascender Stamped-Steel Ladder-Frame Chassis "Patent Pending"
  • Licensed 1972 Ford Bronco Body
  • Crawler Style Front Bumper
  • 3-Link Panhard Bar Front Suspension
  • 4-Link Rear Suspension
  • Aluminum Suspension Links
  • Floating Battery Tray
  • Realistic Axle Housings
  • One-Piece, Low-Profile Locker/Ring Gear
  • Heavy Duty CV Front Shafts
  • Single-Speed, Metal Gear Transmission
  • Oil-Filled, Threaded Shocks
  • Dynamite brushed 35T crawler motor and waterproof ESC
  • Licensed Interco 1.9 Super Swamper® Tires
  • Spektrum DX2E 2.4GHz radio system with batteries
  • Spektrum metal gear steering servo

Needed To Complete

  • 2S Shorty Lipo Battery Pack with EC3™ connector (see Completion Guide)
  • Battery Charger

Video Overview

Overview

The brainchild of the same visionaries behind the Mustang, the first generation Bronco featured a unique chassis engineered to drive boldly where the pavement ends. You’ll find that same spirit of off-road adventure in this licensed, 1/10-scale recreation of the ’72 Bronco. Its proven Ascender chassis features stamped-steel ladder frames, over 45° of steering travel and one of the most capable off-road suspensions available.

Heavy Duty Suspension

The chassis rides on a 3-link panhard bar front suspension and a 4-link rear suspension. All suspension links are machined from aluminum to handle the most punishing conditions. Oil-filled, threaded shocks soak up the bumps and give you a variety of pre-load settings.

Metal Gear Transmission

The single-speed, metal gear transmission is engineered for steep inclines and rugged, rocky terrain. Those seeking a broader range of speed and climb performance can upgrade to the optional two-speed transmission, sold separately.

Floating Battery Tray

The battery tray floats over the front axle and is designed to accept 96mm shorty packs. Placing the weight of the battery over the front axle gives the front tires extra traction when crawling over rocks and tackling steep inclines.

Crawler Style Front Bumper

Front bumper features molded tow hooks. An opening on the front bumper leaves plenty of room for a winch cable. If you want to try different 1/10-scale bodies later on, the bumper can be moved to accommodate most of them.

Heavy Duty CV Front Shafts

As with the rest of the drivetrain components, these have been designed to handle rugged terrain. They also allow up to 45 degrees of steering angle – more than most other trucks in this class.

Licensed 1972 Ford® Bronco Body

The painted, polycarbonate body is modeled after one of the most popular early editions of the Ford Bronco ever built. Scale touches include an injection-molded grille with headlight details and authentic Ford badging.

Sticky Compound Interco Super Swamper Tires

The realistic drivetrain and suspension are complemented by licensed replicas of Interco TSL SX Super Swamper® tires. Like the full-scale versions, their tread pattern and compound provide excellent grip at almost any angle.

Powerful Dynamite® Crawler Motor

The potent Dynamite motor delivers all the torque you need to muscle over rock piles and power through mud and brush.

Waterproof Electronics

The truck is equipped with a waterproof receiver, speed control and steering servo for driving in the real world, where things get wet and the weather is often less than perfect.

Spektrum DX2E 2.4GHz Radio System

The included radio system gives you the unbeatable signal security and responsiveness of Spektrum DSMR® 2.4GHz technology. The DX2E transmitter is compatible with any Spektrum surface receiver so you can use it with other RC vehicles as well.

Product Specifications

Approximate Assembly Time No assembly required
Ball Bearings Complete Vehicle
Body 1972 Ford Bronco Painted
Chassis Steel ladder frame
Completion Level Ready-To-Run
Differential Locked
Drivetrain 4WD
Final Drive Ratio 7.86:1
Front Track 8.66 in (220mm)
Gear Pitch 48-Pitch
Ground Clearance 1.06 in (37mm) at Differentials
Inner Tire / Outer Wheel Diameter 1.9 in (48mm)
Internal Gear Ratio 4.05:1
Motor Size 540
Motor Type Brushed
Outer Diameter 4.5 in (115mm)
Pinion 14T
Power Type Electric
Product Height 9 in (229mm)
Product Length 17.5 in (445mm)
Product Weight 4 lbs (1.8kg)
Product Width 9 in (229mm)
Radio Spektrum DX2E 2-channel
Rear Track 8.66 in (220mm)
Scale 1/10
Servos Included
Shock Type Oil Filled Threaded Injection Molded
Speed Control Included
Spur Gear 86T
Suspension Multi-link solid axle
Tire Compound Blue
Tire Tread Licensed Super Swamper TSL SX
Wheel Type 8-spoke silver
Wheel Width 1.1 in (27mm)
Wheelbase 10.95 in (278mm)
