P-40B Flying Tiger 980mm PNP with Reflex

Item No. FMM075PX
Discontinued
Brand Logo
5 out of 5 Customer Rating

P-40B Flying Tiger 980mm PNP with Reflex

Item No. FMM075PX
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • (1) P-40B Flying Tiger PNP, 980mm
  • (1) Product Manual
icon-how-to
Needed to Complete
  • 6+ Channel Radio System
  • LiPo Battery
  • LiPo Charger

Overview

The P-40B, like the 980mm P47,is definitely a head turner! If you love warbirds and enjoy the excitement of heart-pounding speeds, this aircraft will satisfy both of your desires! The stock 3 bladed props, 3648 brushless outrunner, 4 cell battery and 70A ESC means that the P-40B can attain speeds of up to 100mph+. Be ready to turn heads with the awesome 980mm P-40B!

Features

  • Made of Durable EPO Foam
  • Modular motor board allows use of both standard and high speed motor configurations
  • Powerful Brushless 3648-KV770 motor combined with heavy-duty 70A ESC
  • Metal gear servos on the ailerons, elevator and rudder for maximum durability
  • Super scale appearance including hand painted pilot, detailed cockpit, authentic graphics
  • Simple construction with minimal glue required for assembly
  • Rugged electronic retractable landing gear with metal trunnions
  • Ball link connectors are used replacing the traditional clevis

Video Overview

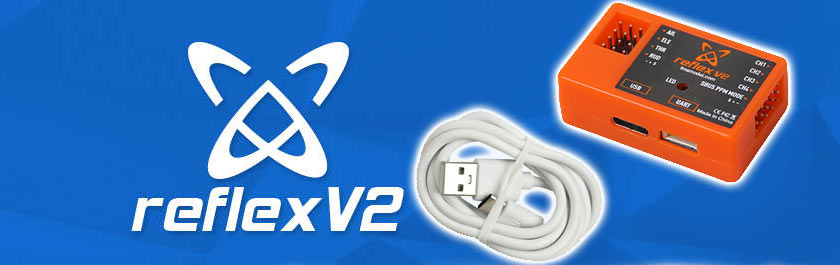

FMS Reflex V2



Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft

The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!

Reflex Functions

Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.

Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.

Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Reflex V2 Overview



Software Installation



Product Specifications

LiPo Compatibility 4S
CG (Center of Gravity) 1.8 in (45mm) from leading edge
Completion Level Plug-N-Play
Propeller Size 10.5 x 7
Battery Sold Separately
Motor Size 3648-Kv770
Product Length 32.5" (826 mm)
Minimum Required Radio 6 Channel
Power Type Electric
Skill Level Level 3
Wingspan 38.6" (980 mm)
Speed Control Included
Wing Area 245 sq in (15.8 sq dm)
Approximate Assembly Time Less than 1 Hour
Approximate Flight Time 5 minutes
Flaps Yes
Material EPO
Wing Loading 21.7oz/sq ft (66.4g/sq dm)
Receiver Sold Separately
