In The Box
- (1) Moa 1500mm RTF
- (1) Product Manual

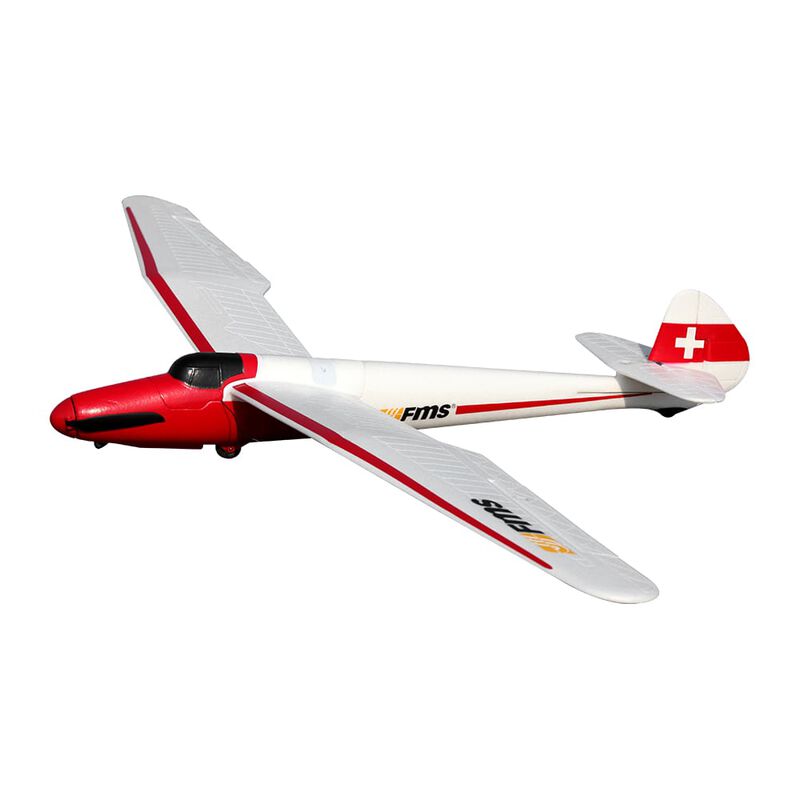

As the newest addition to the FMS line, with a wingspan of 1500mm, this mid-sized glider is ideal for both beginning and advanced fliers. This plane comes with four installed servos, a 20 Amp ESC, and a brushless motor. The gentle flying characteristics, from low to high speeds, and the added advantage of a landing wheel, to help protect the foam, makes it a perfect choice for everyone. Simple construction makes assembly quick and easy, so you can get flying faster!
- 1700kV motor to pull the glider to altitude for gliding
- Folding prop
- Simple build process
- Inlet and exit air holes for proper cooling
- Spars and EPO foam construction provide the perfect balance between strength and flexibility
- Outrunner motor, servos, and ESC come pre-installed for your convenience
Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft
The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!
Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.
Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.
Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!
Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Reflex V2 Overview
|Approximate Assembly Time||Less than 1 Hour|
|Approximate Flight Time||8 minutes|
|Wing Area||301 sq in (19.42 sq dm)|
|Wingspan||59" (1499 mm)|
|Minimum Required Radio||4 channel|
|Motor Size||3015 KV1700|
|Product Length||33.7" (856 mm)|
|CG (Center of Gravity)||2.1-2.3 in (53-58mm) From Leading Edge|
|Propeller Size||9 x 5|
|Recommended Motor Battery||7.4V 1300mAh|
