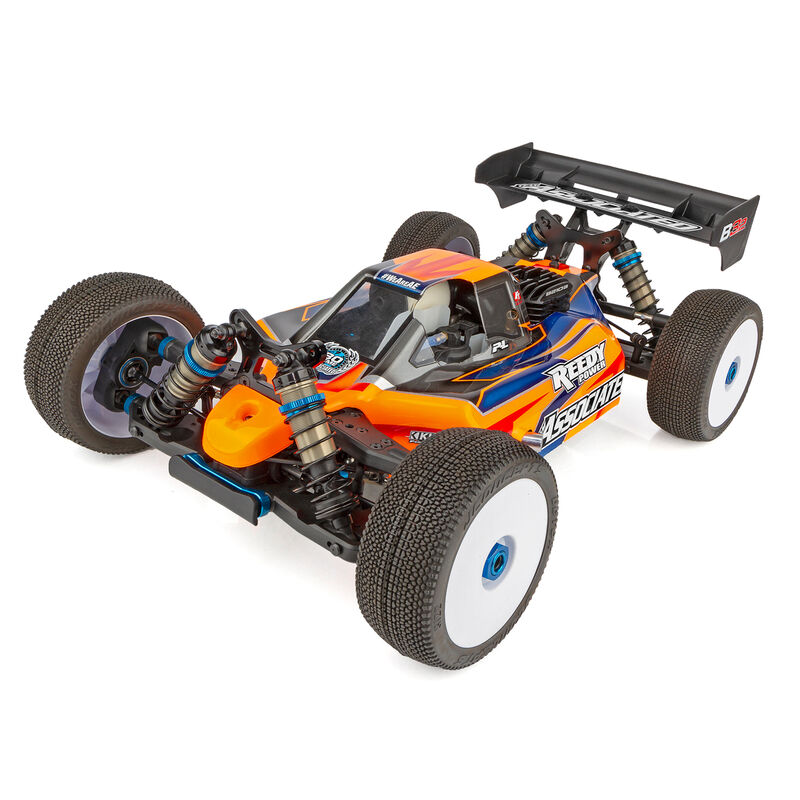

1/8 RC8B3.2 Nitro Team 4WD Buggy Kit

Item No. ASC80939
Discontinued
Brand Logo
4.5 out of 5 Customer Rating

1/8 RC8B3.2 Nitro Team 4WD Buggy Kit

Item No. ASC80939
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • (1) 1/8 RC8B3.2 Nitro Team 4WD Buggy Kit
  • (1) Product Manual
icon-how-to
Needed to Complete
  • .21 class rear exhaust engine
  • Exhaust system: muffler and header joining pack, or muffler spring
  • 2 or 3 channel radio/transmitter set with switch - FM/PCM/2.4GHz recommended
  • Transmitter batteries
  • 4.8-7.4v receiver battery
  • Flat style NiMH, OR Flat style LiPo (Reedy LiPo Pro TX/RX 2400mAh 7.4v Flat), OR Flat style LiFe (Reedy LiFe Pro TX/RX 1600MAh 6.6v Flat)
  • Model car fuel (20-30% nitro recommended)
  • Fuel bottle
  • Glow igniter
  • Starter box
  • 1:8 scale buggy tires
  • 1:8 scale buggy wheels
  • CA (cyanoacrylate) glue
  • Polycarbonate-specific spray paint or polycarbonate-specific bottled paint and airbrush
  • Thread-locking compound
  • Steering servo
  • Throttle servo
  • Tools needed: Needle-nose pliers, Hobby knife, Reamer or hole punch for making holes in body, Ride height gauge, Body Scissors, Hex wrenches, Nut drivers, Wire Cutters, Calipers or a Precision Ruler
  • Silicone Shock Fluid, Silicone Diff Fluid, Shock Shaft Pliers, 5pc Hex/Nut Driver Tool Set, Dual Turnbuckle Wrench, Tire Adhesive
1/8 RC8B3.2 Nitro Team 4WD Buggy Kit

Features

  • Suspension arm design with inserts for flex adjustments
  • Longer rear suspension arm length with narrow rear arm mounts
  • Center bulkhead splits and has front/rear specific top halves to prevent brake misalignment
  • Enclosed battery box for quick and easy battery removal
  • Larger receiver box for better wire management
  • One-piece graphite transponder and electronic switch mount
  • Flex Control radio tray has three different configurations for chassis flex adjustment
  • Stiff shock bladder design improves jumping and handling performance
  • Updated shock cap works for bladder or emulsion style shock setups
  • Shorter and lower front bumper reduces drag and allows easier access to anti-roll bar screws
  • I.F.M.A.R. approved rear wing
  • 42T ring and 12T pinion gears on front and rear differentials for improved gear ratios
  • Updated chassis with chamfered front edges to reduce drag
  • Side guards are now threaded into the chassis from the top side of the car
  • 90% parts compatibility with RC8B3.1

Overview

1:8 scale nitro off road racing is one of RC's most challenging disciplines of racing - it requires attention to detail and demands the highest of standards from equipment. Here to answer the call is the latest development from Team Associated's Area 51 Design Works, the RC8B3.2 Team Kit! The RC8B3.2 is set to push the boundaries of the accolades accumulated by the RC8B3.1:

  • 2018 I.F.M.A.R. World Championship, Perth, Australia — Davide Ongaro
  • 2019 ROAR National Championship, Hutto, Texas — Spencer Rivkin
  • 2019 RCGP Series Championship — Davide Ongaro
  • 2019 Italian Nitro Championship — Davide Ongaro

The engineers of Area 51 Design Works focused on key components that improved durability, accelerated maintenance, and expanded upon its race-winning heritage within the RC8B3 platform. Suspension arm design improves performance in all conditions: bottom-loaded inserts adjust flex characteristics and longer overall length, with reduced rear arm mount width. A 4-piece center bulkhead allows for easier access to the center differential, making adjustments even faster.

The radio tray design features an enclosed battery box, a larger receiver box, integrated switch and transponder mounting, and adjustable flex configurations. Updated shock caps allow the RCB3.2 to be run with the included stiff bladders, standard bladders, or as emulsion with no bladders—all with the same cap. The RC8B3 platform was born with Team Associated "Champion by Design" heritage and the RC8B3.2 plans to continue dominating the 1:8 scale off road racing scene!

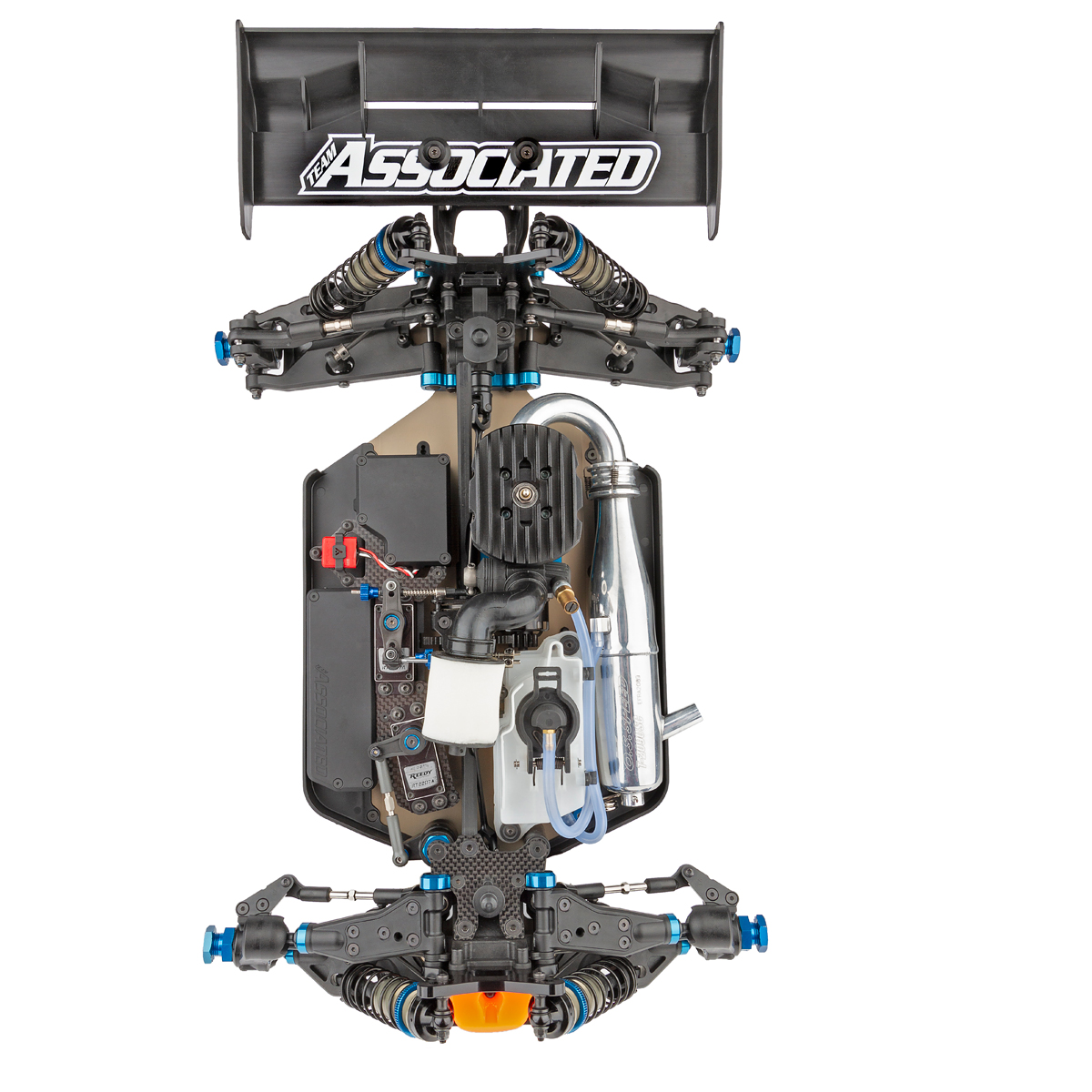

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: engine, pipe and header, transponder, servos, receiver, wheels, tires. Assembly and painting required.

Suspension

Longer rear suspension arm length with narrow rear armmounts



Bulkheads

Center bulkhead splits and has front/rear specific tophalves to prevent brake misalignment



Receiver Box

Larger receiver box for better wire management



Side guards

Side guards are now threaded into the chassis from the topside of the car



Battery Box

Enclosed battery box for quick and easy battery removal



Suspension Arm Design

Suspension arm designed with inserts for flex adjustments



Shock Caps

Updated shock cap works for bladder or emulsion styleshock setups



Pinion Gears

42T ring and 12T pinion gears on front and rear differentialsfor improved gear ratios



Bladder Design

Stiff shock bladder design improves jumping andhandling performance



Product Specifications

Servos High-torque steering servo required
Power Type Nitro
Radio 2-3 channel (sold separately)
Bushing Material Metal
Charger Required for receiver battery (sold separately)
Differential Front, rear and center
Max Battery Dimensions 3.3 x 1.8 x 0.65 in (84.5 x 29.8 x 16.5mm)
Receiver Sold Separately
Shock Type Oil-filled, updated shock cap works for bladder or emulsion style shock setups
Wheel Type 1:8 scale buggy wheels (sold separately)
Body Clear polycarbonate with IFMAR approved rear wing
Scale 1/8
Vehicle Type Buggy
Water-Resistant Yes
Ball Bearings Full set
Chassis Aluminum
Completion Level Kit
Drivetrain 4WD
Wheel Hex Size 17mm
Battery 4.8 - 7.4V receiver battery (sold separately)
Engine Size .21 cu in (sold separately)
Product Length 19.13 in (486mm)
Suspension New arm design features bottom-loaded inserts
Product Width 11.99 in (304.5mm)
Speed Control Sold Separately
Wheelbase Varies
